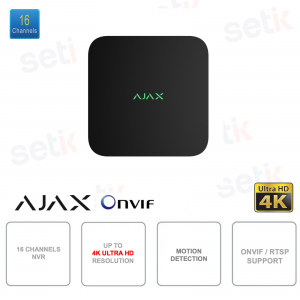

70935.122.BL #70935| Ajax NVR (16ch) nero a 16 canali è un network video recorder progettato per integrare telecamere IP Ajax e ONVIF all’interno dell’ecosistema Ajax, offrendo gestione video avanzata e sicurezza di livello professionale. Supporta fino a 16 canali in risoluzione 4K, garantendo immagini dettagliate e fluide grazie allo streaming peer-to-peer con tecnologia JetSparrow. La piattaforma assicura crittografia end-to-end, mTLS e pieno controllo della privacy, con accesso ai dati riservato esclusivamente al proprietario. L’esperienza utente è ottimizzata con visualizzazione live immediata, navigazione rapida dell’archivio e scenari video per la verifica degli allarmi. Dotato di alimentazione integrata 110–240 V, supporto HDD fino a 16 TB e design nero compatto, rappresenta una soluzione affidabile e scalabile per impianti di videosorveglianza professionali. Ajax
Riferimento: 70935.122.BL
Marca: Ajax Systems
EAN: 4823114044120
Disponibilità: 1
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
70935.122.BL | VIDEOREGISTRATORE DI RETE A 16 CANALI

Ajax NVR (16ch), 70935.122.BL, nero a 16 canali è un network video recorder professionale progettato per integrare telecamere Ajax e IP ONVIF all’interno dell’ecosistema Ajax, offrendo una gestione video avanzata, fluida e sicura. Supporta fino a 16 canali in risoluzione 4K, garantendo immagini ad alta definizione e trasmissioni rapide grazie alla tecnologia JetSparrow peer-to-peer. Il sistema assicura crittografia avanzata, mTLS e pieno controllo della privacy, con accesso ai dati riservato esclusivamente al proprietario. L’esperienza utente è ottimizzata tramite live view immediata, navigazione rapida dell’archivio e verifica video degli allarmi, rendendolo ideale per installazioni professionali e residenziali evolute
Specifiche principali:
- Supporto fino a 16 canali video in risoluzione 4K
- Tecnologia JetSparrow per streaming video rapido e stabile
- Compatibilità con telecamere Ajax e IP ONVIF
- Crittografia TLS, mTLS e controllo avanzato della privacy
- Verifica video degli allarmi e gestione da app Ajax
- Supporto HDD fino a 16 TB con alimentazione integrata 110–240 V
Ulteriori dettagli
Scheda tecnica
| 70935.122.BL | |
| Videostream | |
| NVR models | 16-channel With up to 4K resolution (25/30 FPS). |
| IP cameras |
|
| Storage | hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size) HDD not included. |
| Decoding formats | H.265 H.264 |
| Bandwidth | up to 100 Mbps |
| Recommendations | The device operating voltage is 110–240 V~. NVR is designed for indoor installation only |
| Communication channels | |
| Ethernet | up to 100 Mbps |
| Bluetooth | BLE frequency band: 2.400–2.4835 GHz To set up an Ethernet connection |
| Radio signal power | hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size) 2.5 mW (100 mW limit) |
| Key features | |
| Motion detection | NVR has built-in software to detect the motion in the frame. Possible to switch between image analysis by NVR or camera algorithms |
| In-app video management system |
|
| Visual verification of Ajax alarms | NVR allows setting up a scenario in which Ajax detectors trigger specific cameras to start recording This results straight in mobile and desktop (monitoring) apps |
| Speaker volume | up to 103 dB 83 dB at a distance of 1 m. |
| Privacy | Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop |
| Power supply | |
| Main | 110–240 V~, 50/60 Hz, 0.6 A Up to 24 W of mains power consumption |
| Backup | CR2032 battery, 3 V Only to power the system clock |
| Anti-sabotage | |
| Tampering alarm | Notifications about attempts to detach the device from the surface or remove it from the mounting panel |
| Enclosure | |
| Color | Black |
| Dimension | 251 × 251 × 51 mm 9.88″ × 9.88″ × 2.01″ |
| Weight | 700 g 24.69 oz Without a hard drive |
| Operating temperature range | from 0 °C to +40 °C from 32 °F to 104 °F |
| Operating humidity | up to 75% |
| Protection class | IP20 |
| Complete set | NVR SmartBracket mounting panel Power cable Ethernet cable Installation kit Quick start guide |
| Warranty | 24 months |
