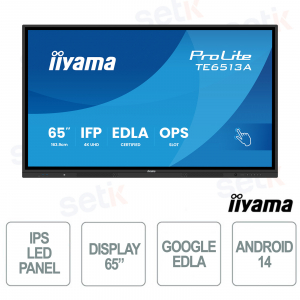

TE6513A-B2AG 65" 4K UHD, Google EDLA, Android 14, Touch 40 punti, WiFi-6E per scuola e aziende - iiyama
Il display interattivo iiyama ProLite TE6513A-B2AG da 65" è una soluzione avanzata per collaborazione e formazione che unisce risoluzione 4K UHD, tecnologia PureTouch-IR+ con fino a 40 punti di tocco e Zero-Gap Air Bonding per un’interazione estremamente precisa e senza parallasse. Certificato Google EDLA e basato su Android 14 con piattaforma iiWare 21E, consente l’accesso diretto alle app Google, Microsoft 365 e strumenti cloud per una produttività immediata. La connettività WiFi-6E, Bluetooth 5.0, USB-C con Power Delivery e HDMI garantisce integrazione semplice con dispositivi e sistemi aziendali. Grazie a iiControl DMS per la gestione remota, condivisione wireless tramite iiShare ed EShare, e sensori intelligenti per efficienza energetica, rappresenta una soluzione ideale per scuole, università e ambienti enterprise.
TE6513A-B2AG – MONITOR IPS 65" 4K UHD IIYAMA PROLITE - PURETOUCH IR+ - RJ45 - ANTI-GLARE - PIR MOTION SENSOR - STANDLONE SOLUTION & CONNECTIVITY
Il display interattivo iiyama ProLite TE6513A-B2AG da 65" è progettato per migliorare collaborazione e didattica grazie alla risoluzione 4K UHD e al pannello IPS con tecnologia Zero-Gap Air Bonding, che riduce il parallasse e garantisce immagini nitide e interazioni precise. Dotato di PureTouch-IR+ con fino a 40 punti di tocco e Palm Rejection, offre un’esperienza fluida per presentazioni e lavoro collaborativo. Grazie al sistema iiWare 21E con Android 14 certificato Google EDLA, consente accesso diretto a app Google, cloud e strumenti Microsoft 365. La connettività avanzata con WiFi-6E, Bluetooth 5.0, USB-C e HDMI, insieme alla gestione remota iiControl DMS e alla condivisione wireless tramite iiShare ed EShare, lo rende ideale per scuole, università e ambienti enterprise.
Caratteristiche principali:
- Display interattivo da 65" con risoluzione 4K UHD e pannello IPS
- Tecnologia PureTouch-IR+ con fino a 40 punti di tocco e Palm Rejection
- Certificazione Google EDLA con sistema iiWare 21E e Android 14
- Zero-Gap Air Bonding per scrittura precisa e riduzione del parallasse
- Connettività avanzata WiFi-6E, Bluetooth 5.0, USB-C, HDMI e LAN
- Gestione remota con iiControl DMS e condivisione wireless iiShare / EShare
- Sensori intelligenti PIR e ambient light per efficienza energetica
Ulteriori dettagli
Scheda tecnica
| Model | TE6513A-B2AG |
| DISPLAY CHARACTERISTICS | |
| Design | Thin bezel |
| Diagonal | 64.5", 163.9cm |
| Panel | IPS |
| Touch Glass | Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding |
| Native resolution | 3840 x 2160 (8.3 megapixel 4K UHD) |
| Aspect ratio | 16:9 |
| Panel brightness | 500 cd/m² |
| Brightness | 500 cd/m² (max.) |
| Light transmittance | 88% |
| Static contrast | 1200:1 |
| Dynamic contrast | 5000:1 |
| Response time MPRT) | 8ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%) |
| Horizontal Sync | 30 - 135kHz |
| Viewable area W x H | 1428.5 x 803.5mm, 56.2 x 31.6" |
| Bezel width (sides, top, bottom) | 16.5mm, 16.5mm, 41mm |
| Pixel pitch | 0.372mm |
| Bezel colour and finish | black, matte |
| TOUCH | |
| Touch technology | PureTouch-IR⁺ |
| Touch points | 40, 10pt writing (HID, only with supported OS, 32pt Touch with Android) |
| Scan rate | 200Hz |
| Touch response time | 5ms |
| Touch accuracy | +- 1mm |
| Touch method | stylus, finger, glove (Passive pen, Opaque objects) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection | Yes |
| INTERFACES / CONNECTORS / CONTROLS | |
| Digital signal output |
HDMI x2 (v2.0) (H1 CEC/ARC / H2 CEC) |
| Audio input |
Mini jack x3.5 mm (Microphone) |
| Monitor control input |
RS-232c x1 (DSUB 9pin) |
| Digital signal output |
HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444) |
| Audio output |
S/PDIF (Optical) x1 |
| Monitor control output |
OPS Slot x1 (Intel OPS 80pin - When installed: USB-C front: 65W, side: 15W) |
| HDCP | 2.2 |
| USB ports | x6 (media playback / peripherals / storage – front side: 1x USB-C 3.2 (Gen 1, 5Gbit, 100W PD), 2x 3.2 (Gen 1, 5Gbit), side: 1x USB-C 2.0 (480 Mbps, 65W PD), 1x 2.0 (480Mbps), 1x 3.2 (Gen 1, 5Gbit)) |
| RJ45 (LAN) | x2 (IN / OUT, Auto switch for PC & Android, 1000MB) |
| FEATURES | |
| Integrated software | iiWare 21E (Android 14 OS, Android 16 summer 2026) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices |
| WiFi | yes (WiFi-6E, Bluetooth 5.0) |
| Hardware | SOC: RK3576 Octa-core A72*4 + A53*4, GPU: Mali G52 MC3, RAM: 8 GB, ROM: 128 GB |
| Extra | Ambiant light Sensor, PIR Motion Sensor, NFC, Slot for optional OPS PC, 4x Touch pen |
| Max. non-stop operating time | 24/7 (While the components are rated for 24/7 operation, we recommend usage not exceeding 18 hours per day to ensure optimal product longevity) |
| Media playback | Yes |
| Glass thickness | 3.2mm |
| Glass hardness | 7H |
| Housing (bezel) | metal |
| OSD key lock | Yes |
| GENERAL | |
| OSD languages |
EN, DE, FR, ES, IT, RU, CZ, NL, PL, CAT, SV, FI, DA, NB, ET, LV, LT, HU, UK |
| Control buttons | Power, Home, Freeze, Volume, Input (source) |
| User controls |
general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Blue light reducer |
Yes |
| Flicker free |
98" not supported |
| Plug&Play |
DDC2B |
| Warranty |
5 years (for details and eligible countries please check the Warranty section of our website) |
| MECHANICAL | |
| Orientation | landscape |
| Fanless design | Yes |
| VESA mounting | 600 x 400mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF | 50.000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (EU 3m, UK 3m), USB (3m), HDMI (3m) |
| Touch pen | x4 (Dual function tips) |
| Guides | quick start guide, safety guide |
| Other | Wall Mounting Bracket (VESA 400x400), Webcam Mounting Bracket |
| Remote control | yes (batteries included) |
| POWER MANAGEMENT | |
| Power supply unit | internal |
| Power supply | AC AC - 100V, 240/V, 50Hz |
| Power Usage | 182W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS) |
| Energy efficiency class (Regulation (EU) 2017/1369) | G |
| REACH SVHC | above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 1489 x 891.5 x 87mm |
| Box dimensions W x H x D | 1640 x 1010 x 185mm |
| Pallet volume | 4pcs |
| Weight (without box) | 39.4kg |
| Weight (with box) | 48.5kg |
