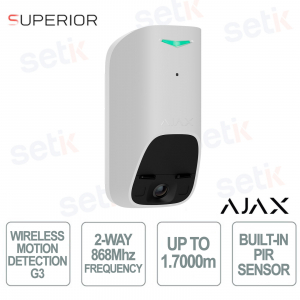

142681.120.WH1 | RILEVATORE DI MOVIMENTO PIR WIRELESS CON POSSIBILITA' DI FOTO-VERIFICA - RISOLUZIONE HD

Il MotionCam G3 (PhOD) Jeweller, 142681.120.WH1, Bianco è un avanzato sensore PIR wireless progettato per garantire massima sicurezza grazie alla foto-verifica HD e a tecnologie radio potenziate che offrono comunicazioni fino a 3.500 metri. Questo dispositivo professionale della linea Ajax Superior assicura un rilevamento preciso fino a 15 metri, immagini nitide anche in condizioni di scarsa luminosità e una gestione intelligente degli allarmi grazie all’algoritmo SmartDetect. Facile da installare tramite QR code e dotato di autonomia fino a 4 anni, integra doppio tamper, anti-mascheramento e notifiche immediate di malfunzionamento per un controllo totale dell’ambiente.
Specifiche principali:
- Foto-verifica HD fino a 864×720 con scatti su allarme, richiesta o scenario
- Rilevamento PIR fino a 15 m con angolo orizzontale di 90° e verticale di 71°
- Comunicazione Superior Jeweller & TurboWings fino a 3.500 m
- Illuminatore IR per immagini notturne e funzione HDR
- Doppio tamper, anti-mascheramento e rilevazione perdita di comunicazione
- Autonomia fino a 4 anni con batterie CR123A preinstallate
- Installazione rapida con SmartBracket e configurazione da app mobile/desktop
Ulteriori dettagli
Il protocollo TurboWings è dedicato alla trasmissione rapida dei dati fotografici, permettendo l’invio della prima immagine in pochi secondi e assicurando una consegna stabile anche in condizioni radio complesse, migliorando la velocità della foto-verifica.
Dotato di un sensore PIR ad alta sensibilità e di un sistema ottico proprietario con specchio multifaccettato, ottimizza la precisione nella rilevazione dell’infrarosso e riduce drasticamente interferenze termiche che potrebbero generare falsi allarmi.
Scheda tecnica
| 142681.120.WH1 | |
| Wireless communication | Superior Jeweller communication technology Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweller is an upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3). Key features:
865.0 - 868.0 MHz 868.0 - 868.6 MHz 868.7-869.2 MHz 869.4 - 869.65 MHz Maximum effective radiated power (ERP) up to 20 mW Automatic power control to reduce power consumption and radio interference. Radio signal modulation GFSK Radio communication range Up to 3.500 m Up to 11.4500 ft Encrypted communication All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. Frequency hopping To prevent radio interference and jamming. Wings communication technology Proprietary wireless communication technology for uploading firmware updates. Key features:
865.0 - 868.0 MHz 868.0 - 868.6 MHz 868.7-869.2 MHz 869.4 - 869.65 MHz Maximum effective radiated power (ERP) Radio communication range Up to 3.500 m Up to 11.4500 ft Between the hub and the devices added to it in open space. The maximum range depends on the added device Encrypted communication All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. Frequency hopping To prevent radio interference and jamming. |
| Detection | Sensitive elements 1 PIR sensor Motion detection distance up to 15 m When installed at a height of 2.4 m. up to 49 ft When installed at a height of 8 ft. Motion detection angles horizontal: 90° vertical: 71° Motion detection speed from 0.1 to 4.0 m/s from 0.3 to 13.1 ft/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. Sensitivity 3 levels Adjusted by PRO or user with admin rights in the Ajax app. False alarm prevention SmartDetect Software algorithm. Temperature compensation Effective motion detection at temperatures from −10 °C to +40 °C. Effective motion detection at temperatures from 14 °F to 104 °F. |
| Photo verification | Photo by alarm A built-in camera is activated if the detector is armed and motion is detected. Photo on demand User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default. Photo by scenario A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default. Photo by schedule The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher. Photo by masking or tamper alarm The detector automatically takes photos when masking is detected or when the tamper is triggered. The feature is disabled by default. Photo by arming/disarming The detector automatically takes photos when the security state is changed. Photo resolution HD (864 × 720 pixels) VGA (576 × 480 pixels) QVGA (288 × 240 pixels) QQVGA (160 × 128 pixels) Adjusted by PRO or user with admin rights in the Ajax app. HDR image Improves the accuracy of detail in bright and dark scenes. IR backlight For night photography and low light conditions. Pictures in a series from 1 to 5 images with a resolution of 288 × 240 px or 160 × 128 px from 1 to 3 images with a resolution of 576 × 480 px or 864 × 720 px Adjusted by PRO or user with admin rights in the Ajax app. Photo delivery time up to 3 s — 160 × 128 px resolution up to 4.5 s — 288 × 240 px resolution up to 11 s — 576 × 480 px resolution up to 15.5 s — 864 × 720 px resolution When the hub is connected via Ethernet or 4G and the Wings signal strength between hub and device is 2–3 bars. Photo delivery time when the detector is connected via range extender is available here. |
| Recommendations | It is recommended to install the detector at a height of 2.4 m. The device is designed for indoor use only. It is recommended to install the detector at a height of 8 ft. The device is designed for indoor use only. |
| Sabotage protection | Tamper alarm 2 tampers Notifications on attempts to detach the detector from the surface or unlock the SmartBracket lock and remove the detector from the mounting panel Protection against spoofing device authentication Anti-masking system detects attempts to block the detector view Lock for SmartBracket To secure the detector on SmartBracket Communication loss detection after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Power supply | Battery 4 × CR123A Pre-installed. Type type C Calculated battery life up to 4 years With Photo on demand toggle disabled. up to 3 years With Photo on demand toggle enabled. Operating voltage rang 4.2−6.2 V⎓ Nominal operating voltage 6 V⎓ Quiescent current consumption at nominal voltage 0.050 mA (TBC) Maximum current consumption at nominal voltage 600 mA (TBC) Full battery capacity 3,200 mAh Low battery voltage 4.705–5.00 V⎓ (TBC) Low battery recovery voltage 5.055–5.355 V⎓ (TBC) End-of-life battery voltage 3.80 V⎓ The device switches off. End-of-life battery capacity 300 mAh Manufacturer Duracell Procell |
| Enclosure | Dimensions 66,6 × 64 × 140 2.62″ × 2.52″ × 5.51″ Weight 294 g 10.37 oz Operating temperature range from −10 °C to +40 °C from 14 °F to 104 °F Operating humidity up to 75% Protection class IP50 |
| Color | White |
| Complete set | Superior MotionCam G3 (PhOD) Jeweller SmartBracket mounting panel Installation kit 4 × CR123A battery (pre-installed) Quick start guide |
