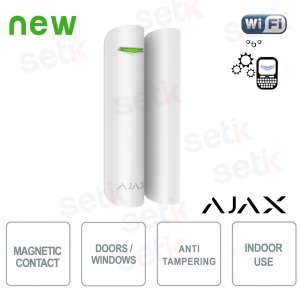

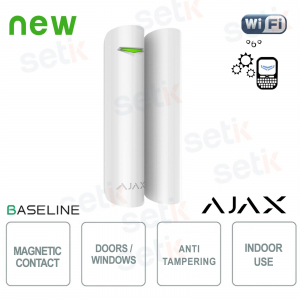

38099.03.WH1 #38099| Ajax DoorProtect Jeweller bianco è un sensore wireless per porte e finestre progettato per garantire un’apertura affidabile grazie a un reed switch ultra-resistente da 2 milioni di attivazioni e doppio magnete. La tecnologia Jeweller assicura comunicazioni criptate fino a 1.200 m, mentre l’autonomia raggiunge i 7 anni con batteria pre-installata. Supporta sensori NC esterni e offre funzioni smart come il chime all’apertura. Compatto ed elegante, si installa rapidamente via QR e si gestisce da app, ideale per sistemi di sicurezza avanzati. Ajax
Riferimento: 38099.03.WH1
Marca: Ajax Systems
EAN: 0856963007033
Disponibilità: 236
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
38099.03.WH1 | RILEVATORE DI APERTURA WIRELESS CON RELE' REED

Il Ajax DoorProtect Jeweller, 38099.03.WH1, bianco è un sensore wireless per porte e finestre progettato per garantire una rilevazione d’apertura estremamente affidabile grazie al reed switch ad alta durata e alla tecnologia di comunicazione criptata Jeweller, che assicura sicurezza, stabilità e un raggio operativo fino a 1.200 metri. Con un’autonomia fino a 7 anni e batteria pre-installata, offre installazione rapida tramite QR e funzioni avanzate come l’ingresso NC per sensori esterni e la modalità chime. Compatto, elegante e resistente, è ideale per sistemi di sicurezza professionali e smart home.
Specifiche principali:
- Reed switch con durata fino a 2.000.000 di attivazioni
- Comunicazione Jeweller fino a 1.200 m con cifratura e autenticazione
- Autonomia fino a 7 anni con batteria CR123A pre-installata
- Compatibile con sensori NC esterni e funzione chime
- Installazione rapida via QR code e gestione da app
- Design compatto nero: Ø 20 × 90 mm, peso 29 g
Ulteriori dettagli
Scheda tecnica
| 38099.03.WH1 | |
| Communication | |
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Radio frequency bands | 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz Depence on the sales reagion |
| Maximum effective radiated power (ERP) | up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio signal range | Up to 1,200 m up to 3,900 ft Between the detector and a hub (or radio signal range extender) in an open space. |
| Encrypted radio communication | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Frequency hopping | To prevent radio interference and radio signal interception. |
| Detection | |
| Sensitive element | 1 reed switch |
| Magnets | small and big one come in the set The small magnet operates at a distance of up to 1 cm from the detector, and the big magnet — up to 2 cm. Attach the magnet on the right side of the detector. |
| Protection against reed switch chattering | The detector ignores vibrations lasting up to 0.15 s. |
| Input to connect an additional detector | Wired detector with the normally closed (NC) contact type. |
| Chime | When the system is disarmed, the siren makes a special sound to notify that the opening detectors are triggered. |
| Recommendations | Do not install the detector using both magnets at the same time. The detector recognizes only one magnet on one side of the detector. Attach the magnet to the moving part of the door (window) to the right of the detector. The side to which the magnet should be attached is marked with an arrow on the detector’s enclosure. The device is designed for indoor use only. |
| Sabotage protection | |
| Tamper alarm | Notifications on attempts to detach the device from the surface or remove it from the mounting panel. |
| Protection against spoofing | devices’ authentication |
| Communication loss detection | after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Power Supply | |
| Battery | 1 × CR123A Pre-installed. |
| Type | type C |
| Calculated battery life | up to 7 years |
| Device’s nominal operating voltage | 3 V⎓ |
| Quiescent device’s current consumption at nominal voltage | 17.5 μA |
| Maximum device’s current consumption at nominal voltage | 21.4 mA |
| Full battery capacity | 1,600 mAh |
| Low battery voltage | 2.5 V⎓ |
| Low battery recovery voltage | 2.7 V⎓ |
| End-of-life battery voltage | 2.1 V⎓ Device is switched off. |
| End-of-life battery capacity | 300 mAh |
| Manufacturer | Huiderui |
| Enclosure | |
| Color | White |
| Dimension | 90 × 20 × 20 mm |
| Dimensions of the big magnet | 90 × 20 × 20 mm |
| Dimensions of the small magnet | 55 × 11 × 6 mm |
| Weight | 29 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Casing protection class | IP50 |
| Complete set | DoorProtect Jeweller SmartBracket mounting panel CR123A battery (pre-installed) Big magnet Small magnet Outside-mounted terminal clamp Installation kit Quick start guide |
| Warranty | 24 months |
