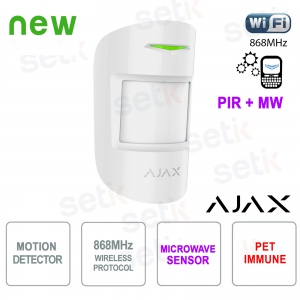

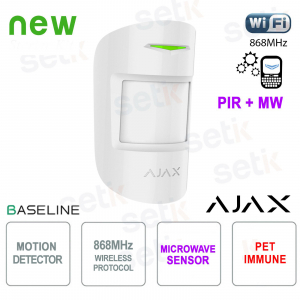

Ajax MotionProtect Plus Jeweller Bianco: Sensore di Movimento Wireless PIR + Microonda ad Alta Precisione
38198.02.WH1 #38198| Ajax MotionProtect Plus Jeweller in colore bianco è un rilevatore di movimento wireless ad alta precisione che combina sensore PIR e microonda K-band per garantire una rilevazione efficace fino a 12 metri, con angolo di copertura di 88,5°. Grazie all’algoritmo SmartDetect e all’immunità agli animali domestici fino a 20 kg, riduce drasticamente i falsi allarmi anche in ambienti complessi. La tecnologia radio Jeweller assicura comunicazioni criptate fino a 1.200 metri, con protezione anti-manomissione e rilevamento jamming. Progettato per funzionare in qualsiasi condizione, integra compensazione termica e tre livelli di sensibilità regolabili. L’installazione è semplice grazie al supporto SmartBracket e alla configurazione tramite app, con autonomia fino a 5 anni. Ajax
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
38198.02.WH1 | RILEVATORE DI MOVIMENTO IR CON SENSORE A MICROONDE IN BANDA K AGGIUNTIVO

La Ajax MotionProtect Plus Jeweller, 38198.02.WH1, bianca è un avanzato sensore di movimento wireless progettato per garantire massima affidabilità grazie alla doppia tecnologia PIR e microonda K-band, capace di rilevare movimenti fino a 12 metri con angolo di copertura di 88,5° e compensazione termica per prestazioni costanti in ogni condizione. L’algoritmo SmartDetect e l’immunità agli animali domestici fino a 20 kg riducono i falsi allarmi, mentre la comunicazione radio criptata Jeweller offre portata fino a 1.200 metri con protezioni anti-jamming e tamper. Facile da installare grazie alla staffa SmartBracket, funziona fino a 5 anni con batteria preinstallata e permette configurazioni rapide tramite app. Il design nero elegante si integra perfettamente in ambienti professionali e residenziali.
Specifiche principali:
- Doppio sensore: PIR + microonda K-band
- Rilevazione fino a 12 m con angolo di 88,5°
- SmartDetect e 3 livelli di sensibilità regolabili
- Immunità pet fino a 20 kg e 50 cm di altezza
- Comunicazione crittografata Jeweller fino a 1.200 m
- Autonomia fino a 5 anni con batteria CR123A preinstallata
Ulteriori dettagli
Scheda tecnica
| 38198.02.WH1 | |
| Communication | |
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Radio frequency bands | 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz Depence on the sales reagion |
| Maximum effective radiated power (ERP) | up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio signal range | Up to 1,200 m up to 3,900 ft Between the detector and a hub (or radio signal range extender) in an open space. |
| Encrypted radio communication | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Frequency hopping | Radio communication uses frequency hopping to prevent interception and jamming |
| Detection | |
| Sensitive element | IR sensor microwave sensor K-band microwave sensor to prevent false alarms caused by thermal interference. Operation frequency: 24 GHz. |
| Motion detection distance | up to 12 m up to 39 ft When installed at the height of 2.4 m. When installed at the height of 7.9 ft. |
| Motion detection angles | horizontal: 88,5° |
| Motion detection speed | from 0.3 to 2 m/s from 1 to 6.6 ft/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity | 3 levels Adjusted by PRO or user with admin rights in the Ajax app. |
| Pet immunity | weight: up to 20 kg weight: up to 44 lb height: up to 50 cm height: up to 1.6 ft |
| False alarm prevention | SmartDetect Software algorithm |
| Temperature compensation | Effective motion detection at temperatures from −10°C to +40°C. from 14°F to 104°F. |
| Recommendations | It is recommended to install the detector at height of 2.4 m. It is recommended to install the detector at height of 7.9 ft. The device is designed for indoor use only. |
| Sabotage protection | |
| Tamper alarm | Notifications on attempts to detach the device from the surface or remove it from the mounting panel. |
| Holding screw | to secure the detector on SmartBracket |
| Protection against spoofing | device authentication |
| Communication loss detection | after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Power Supply | |
| Battery | 1 × CR123A Pre-installed. |
| Type | Type C |
| Calculated battery life | up to 5 years |
| Detector’s operating voltage range | 2.1−3.3 V⎓ |
| Device’s nominal operating voltage | 3 V⎓ |
| Quiescent device’s current consumption at nominal voltage | 31 mA |
| Maximum device’s current consumption at nominal voltage | 62 mA |
| Full capacity | 1,600 mAh |
| Low battery voltage | 2.5 V⎓ |
| Low battery recovery voltage | 2.7 V⎓ |
| End of life battery voltage | 2.1 V⎓ Device is switched off. |
| End of life battery capacity | 300 mAh |
| Manufacturer | Huiderui or Panasonic UL listed. |
| Enclosure | |
| Color | White |
| Dimension | 110 × 65 × 50 mm 4.33″ × 2.56″ × 1.97″ |
| Weight | 96 g 3.39 oz |
| Operating temperature range | from −10 °C to +40 °C from 14 °F to 104 °F Temperature range from 32 °F (0 °C) to 120 °F (49 °C) is certified according to UL/ULC standards. |
| Operating humidity | up to 75% Humidity of up to 93% is certified according to UL/ULC standards. |
| Casing protection class | IP50 |
| Complete set | MotionProtect Plus Jeweller SmartBracket mounting panel with holding screw CR123A battery (pre-installed) Installation kit Quick start guide |
| Warranty | 24 months |
