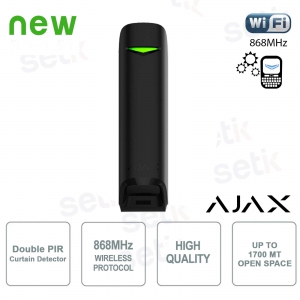

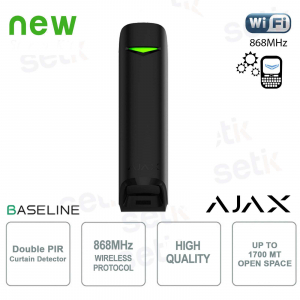

38196.36.BL1 #38196| Ajax MotionProtect Curtain Jeweller nero è un sensore a tenda IR progettato per la protezione mirata di corridoi, porte e finestre grazie al suo angolo di rilevamento stretto da 6° e alla capacità di identificare movimenti fino a 15 metri. La struttura IP54 garantisce resistenza a polvere e umidità, mentre l’algoritmo avanzato di prevenzione dei falsi allarmi assicura performance affidabili anche in ambienti complessi. La comunicazione sicura tramite Jeweller fino a 1.700 m offre reattività immediata, supportata da temperatura compensata per mantenere precisione in ogni condizione. Il dispositivo funziona fino a 3 anni con batteria preinstallata, permettendo installazione rapida tramite QR code e gestione completa da app, ideale per un sistema di sicurezza professionale e discreto. Ajax
Riferimento: 38196.36.BL1
Marca: Ajax Systems
EAN: 4823114015311
Disponibilità: 9
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
38196.36.BL1 | RILEVATORE DI MOVIMENTO IR WIRELESS A TENDA

Il Ajax MotionProtect Curtain Jeweller, 38196.36.BL1, nero è un sensore a tenda IR ideale per proteggere corridoi, porte, finestre e passaggi stretti grazie al suo angolo di rilevamento ultra-stretto da 6° e alla capacità di rilevare movimenti fino a 15 metri garantendo massima precisione e riduzione dei falsi allarmi. La struttura robusta con certificazione IP54 assicura resistenza a polvere e umidità, mentre la comunicazione a lungo raggio Jeweller fino a 1.700 m garantisce trasmissioni rapide e sicure. Grazie alla compensazione della temperatura e a un algoritmo avanzato di elaborazione del movimento, il sensore mantiene prestazioni costanti in ogni ambiente. Funziona fino a 3 anni con batteria preinstallata ed è configurabile da app tramite QR code per un’installazione semplice e immediata.
Specifiche principali:
- Rilevamento fino a 15 m con angolo IR stretto da 6° per protezioni mirate
- Struttura IP54 resistente a polvere e umidità
- Algoritmo anti-falsi allarmi per rilevazioni affidabili
- Comunicazione Jeweller fino a 1.700 m con trasmissione bidirezionale
- Autonomia fino a 3 anni con batteria preinstallata
- Configurazione via app e semplice installazione tramite QR code
Ulteriori dettagli
Scheda tecnica
| 38196.36.BL1 | |
| Communication | |
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Radio frequency bands | 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz Depence on the sales reagion |
| Maximum effective radiated power (ERP) | up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio signal range | Up to 1,700 m up to 5,600 ft Between the detector and a hub (or radio signal range extender) in an open space. |
| Encrypted radio communication | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Frequency hopping | To prevent radio interference and jamming |
| Detection | |
| Sensitive element | 2 × PIR sensor |
| Motion detection distance | up to 6–15 m When installed at a height of 2.4 m, and the Correlation Signal Processing feature is disabled. It also depends on the sensitivity level adjusted in the device settings. up to 6–8 m When installed at a height of 2.4 m, and the Correlation Signal Processing feature is enabled. It also depends on the sensitivity level adjusted in the device settings. |
| Motion detection angles | horizontal: 6° vertical — 90° |
| Motion detection speed | from 0.3 to 2.0 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity | 3 levels Adjusted by PRO or user with admin rights in the Ajax app. |
| Pet immunity | Install the detector upside down to prevent it reacting to domestic animals. |
| Temperature compensation | Effective motion detection at temperatures from −10°C to +40°C. from 14°F to 104°F. |
| Recommendations | It is recommended to install the detector at height of 2.4 m. It is recommended to install the detector at height of 7.9 ft. The device is designed for indoor use only. |
| Sabotage protection | |
| Tamper alarm | Notifications on attempts to detach the device from the surface or remove it from the mounting panel. |
| Protection against spoofing | device authentication |
| Communication loss detection | after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Power Supply | |
| Battery | 1 × CR123A Pre-installed. |
| Type | Type C |
| Calculated battery life | up to 5 years |
| Detector’s operating voltage range | 2.1−3.3 V⎓ |
| Device’s nominal operating voltage | 3 V⎓ |
| Quiescent device’s current consumption at nominal voltage | 41 mA |
| Maximum device’s current consumption at nominal voltage | 60.4 mA |
| Full capacity | 1,600 mAh |
| Low battery voltage | 2.5 V⎓ |
| Low battery recovery voltage | 2.7 V⎓ |
| End of life battery voltage | 2.1 V⎓ Device is switched off. |
| End of life battery capacity | 300 mAh |
| Manufacturer | Huiderui |
| Enclosure | |
| Color | Black |
| Dimension | 134 × 44 × 34 mm with bracket 134 × 52 × 41 mm |
| Weight | 118 g |
| Operating temperature range | from −10 °C to +40 °C from 14 °F to 104 °F |
| Operating humidity | up to 75% |
| Casing protection class | IP54 |
| Complete set | MotionProtect Curtain Jeweller SmartBracket mounting panel Bracket CR123A battery (pre-installed) Installation kit Quick start guide |
| Warranty | 24 months |
