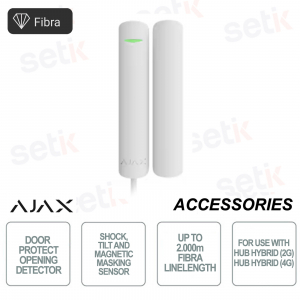

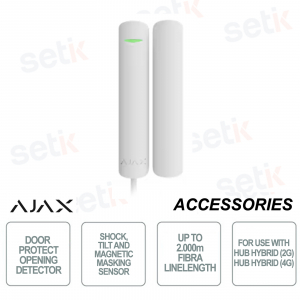

143556.177.WH1 | RILEVATORE DI APERTURA CON SENSORI D'URTO, INCLINAZIONE E MASCHERAMENTO MAGNETICO

Il Ajax Superior DoorProtect G3 Fibra, 143556.177.WH1 (ex. 461340.177.WH2),bianco è un sensore cablato professionale di Grado 3 progettato per la protezione avanzata di porte e finestre nei sistemi Ajax. Combina un controllo perimetrale completo grazie a più tecnologie integrate, offrendo massima affidabilità contro intrusioni e tentativi di manomissione. La comunicazione Fibra cablata bidirezionale criptata fino a 2.000 metri garantisce stabilità del segnale, monitoraggio costante e sicurezza dei dati. Pensato per installazioni professionali, assicura elevata resistenza al sabotaggio e una configurazione rapida tramite app Ajax.
Specifiche principali:
- Rilevamento apertura con doppio reed switch ad alta affidabilità
- Sensore di urto e inclinazione con accelerometro integrato regolabile
- Rilevamento mascheramento magnetico contro tentativi di spoofing
- Comunicazione Fibra cablata criptata bidirezionale fino a 2.000 m
- Protezione antisabotaggio con doppio tamper e autenticazione dispositivo
- Alimentazione diretta da linea Fibra senza batterie per continuità operativa
Ulteriori dettagli
Scheda tecnica
| 143556.177.WH1 | |
| Communication | |
| Fibra communication technology | Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. Key features:
|
| Line connection | 4-core cable |
| Fibra line length | up to 2,000 meters up to 6,500 ft When using the U/UTP cat.5 twisted pair. Encrypted communication |
| Detection | |
| Sensitive element | 1 × accelerometer 1 x magnetic masking sensor 2 x reed switch The magnet can be installed to the right or left side of the detector. |
| Protection against reed switch chattering | The detector ignores vibrations lasting up to 0.15 s |
| Input to connect an additional detector | Wired detector with the normally closed (NC) contact type |
| Shock sensor sensitivity | 3 levels Adjusted by PRO or user with admin rights in the Ajax app |
| Option to ignore single shock | Enabled by PRO or user with admin rights in the Ajax app |
| Tilt sensor activation threshold | from 5° to 25° Adjusted by PRO or user with admin rights in the Ajax app. |
| Spacers | 2 pcs Are needed to install the detector or the magnet on a metal surface, as they help to reduce the distance between the detector and the magnet. You can use one or two spacers at once. |
| Chime | When the system is disarmed, the siren makes a special sound to notify that the opening detectors are triggered |
| Recommendations | Do not install the detector using both magnets at the same time. The detector recognizes only one magnet on the left or right side of it. The device is designed for indoor use only. |
| Sabotage protection | |
| Tamper alarm | 2 tampers Notifications on attempts to detach the detector from the surface or open the front lid |
| Magnetic masking sensor | The device detects an attempt to mask the main magnet of Superior DoorProtect G3 Fibra with a fraudulent magnet. |
| Holding screw | to secure the detector on the mounting panel |
| Protection against forgery | devices authentication |
| Power Supply | |
| Fibra line power supply | 5−30 V⎓, up to 35 mW The detector is powered by the control panel. |
| Enclosure | |
| Color | White |
| Detector dimensions | 102 × 21 × 19.2 mm 4.02″ × 0.83″ × 0.76″ |
| Detector dimensions | 102 × 21 × 19.2 mm 4.02″ × 0.83″ × 0.76″ |
| Weight | 62 g 2.19 oz |
| Operating temperature range | from −10 °C to +40 °C from 14 °F to 104 °F |
| Operating humidity | up to 75% |
| Complete set | Superior DoorProtect G3 Fibra Big magnet Small magnet Installation kit Quick start guide |
| Warranty | 24 months |
