Il SG5036FX di Dahua, è uno switch di rete Gestionabile Layer 2+ con 36 porte: Port 1-24: 24 × SFP 100/1000 Mbps -Port 25-32: 8 × RJ-45 10/100/1000 Mbps - Port 33-36: 4 × SFP+ 1/10 Gbps - MAC Table Size 32K - Packet Buffer 16Mbit - Switching Capacity 144Gbps - 1x Console Port - A prova di fulmini 2kV - Per estendere la rete aziendale -
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

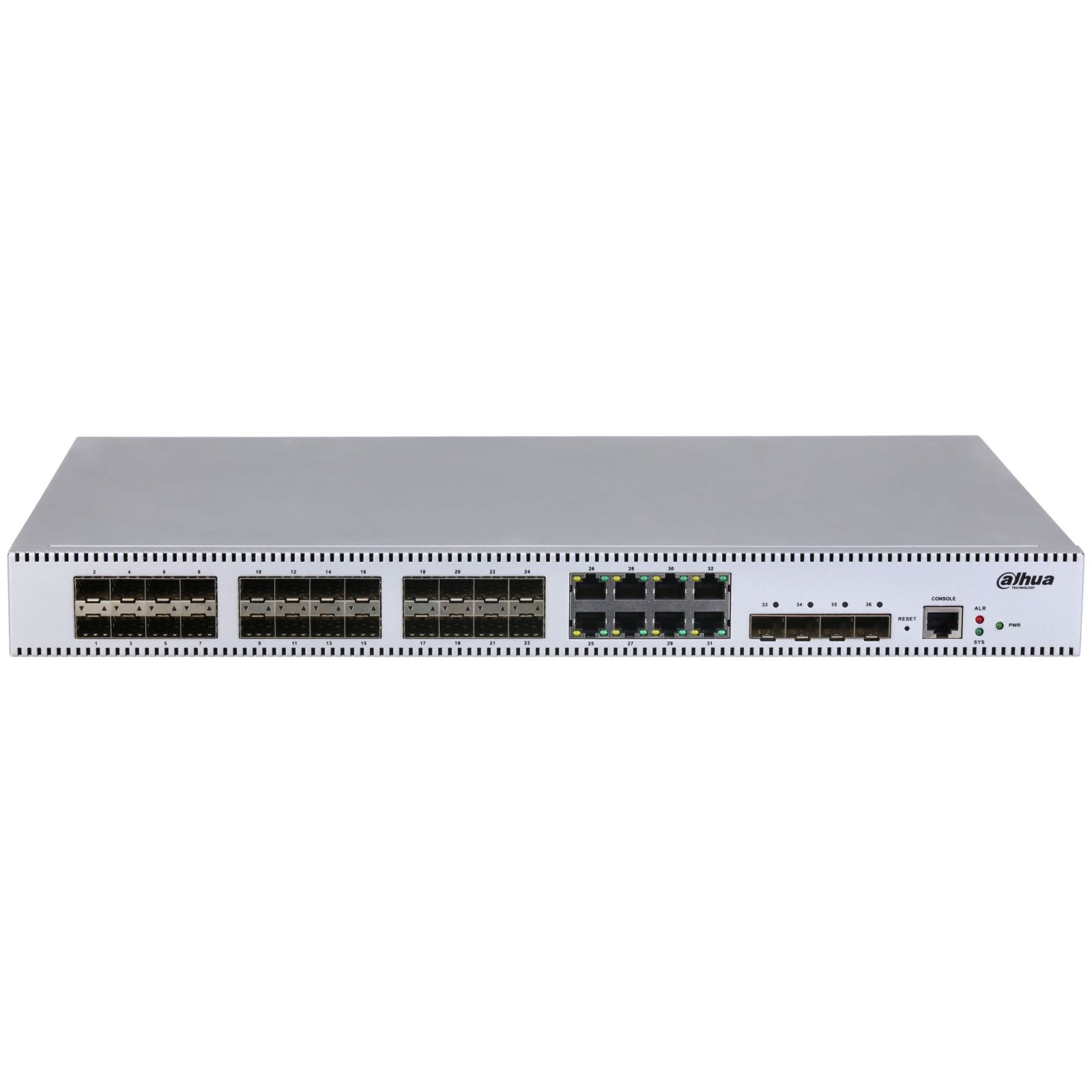

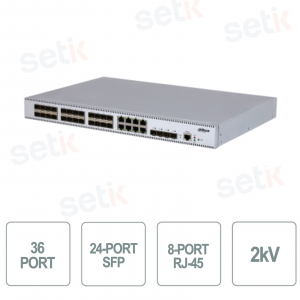

SWITCH DI RETE POE DA 36 PORTE + THUNDERPROOF 2KV - DAHUA - SG5036FX

- 24 × SFP 100/1000 Mbps- 8 × RJ-45 10/100/1000 Mbps- 4 × SFP+ 1/10 Gbps- Layer2- Gestionabile MAC Table Size 32K - Packet Buffer 16Mbit - Switching Capacity 144Gbps - 1x Console Port -Protezione dai fulmini 2kV - Per estendere la rete aziendale -
- Switch di rete - Dahua - SG5036FX
- 36 Porte 24 × SFP 100/1000 Mbps- 8 × RJ-45 10/100/1000 Mbps- 4 × SFP+ 1/10 Gbps-
- Layer 2+
- Gestionabile
- 1x Console Port
- Packet Buffer size 16Mbits
- MAC Table SIze 32K
- Capacità di switching 144Gbps
- Consumi: Idling: 23,8W Full load: 100W
- Protezione dai fulmini: 2kV Common / 1kV differenziale
- Dimensioni: 440 mm ×308.3 mm×44.0 mm
- Peso netto del prodotto: 5.3 kg
- Temperatura di funzionamento supportata: -20°C to 55°C
Scheda tecnica
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Switching Capacity |
144 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Forwarding Rate |
107.136 Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Description of Function Slots |
Port 1-24: 24 × SFP 100/1000 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Layer |
Layer 2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Type |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–20 °C to +55 °C (–4 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
5%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Idling load: 23.8 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
2 built-in power supplies: 100–240 VAC, 50/60 Hz, 1 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Statics Protection |
Air discharge: 8 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lighting Protection |
Common mode: 2 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
3.8 kg (8.38 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
440 mm × 308.3 mm × 44.0 mm (17.32" × 12.14" × 1.73") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Hardware |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Included Power Adapter |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port |
8 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Port |
24 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port Speed |
10/100/1000 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Port Speed |
100/1000 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Port Uplink Speed |
1/10 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Debugging |
1 × Console port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Reset Button |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
5%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Buffer Size |
16 Mbit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Jumbo Frame |
12288 Byte |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MAC Table Size |
32K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VLAN Number |
4094 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VLAN Interface |
16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Standard |
IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Feature |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Spanning Tree Protocol |
STP/RSTP/MSTP/ERPS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VLAN Function |
Port-based VLAN |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Link Aggregation |
Static link aggregation |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IEEE 802.3x Flow Control |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multicast |
IGMP Snooping |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Routing |
Static routing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ARP |
ARP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DHCP Function |
DHCP Client |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Security |
802.1X |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
QoS/ACL |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Equipment Management |
Web (http and https) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
5.3 kg (11.68 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
528 mm × 412 mm × 112 mm (20.79" × 16.22" × 4.41") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Rack mount; desktop mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
