Il SMG1009XP di Dahua, è uno switch di rete PoE Unmanaged con 9 porte: Port 1-8: 8 × RJ-45 10/100/1000/2500 Mbps (PoE) - Port 9: 1 × SFP 1/10 Gbps - MAC Table Size 4K - Packet Buffer 8Mbit - Switching Capacity 60Gbps - Capacità potenza switch 180W - Dimensioni 220x141x30 mm.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

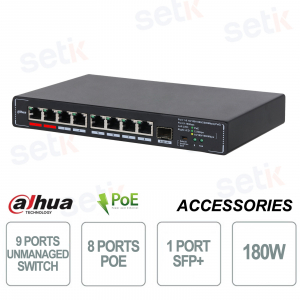

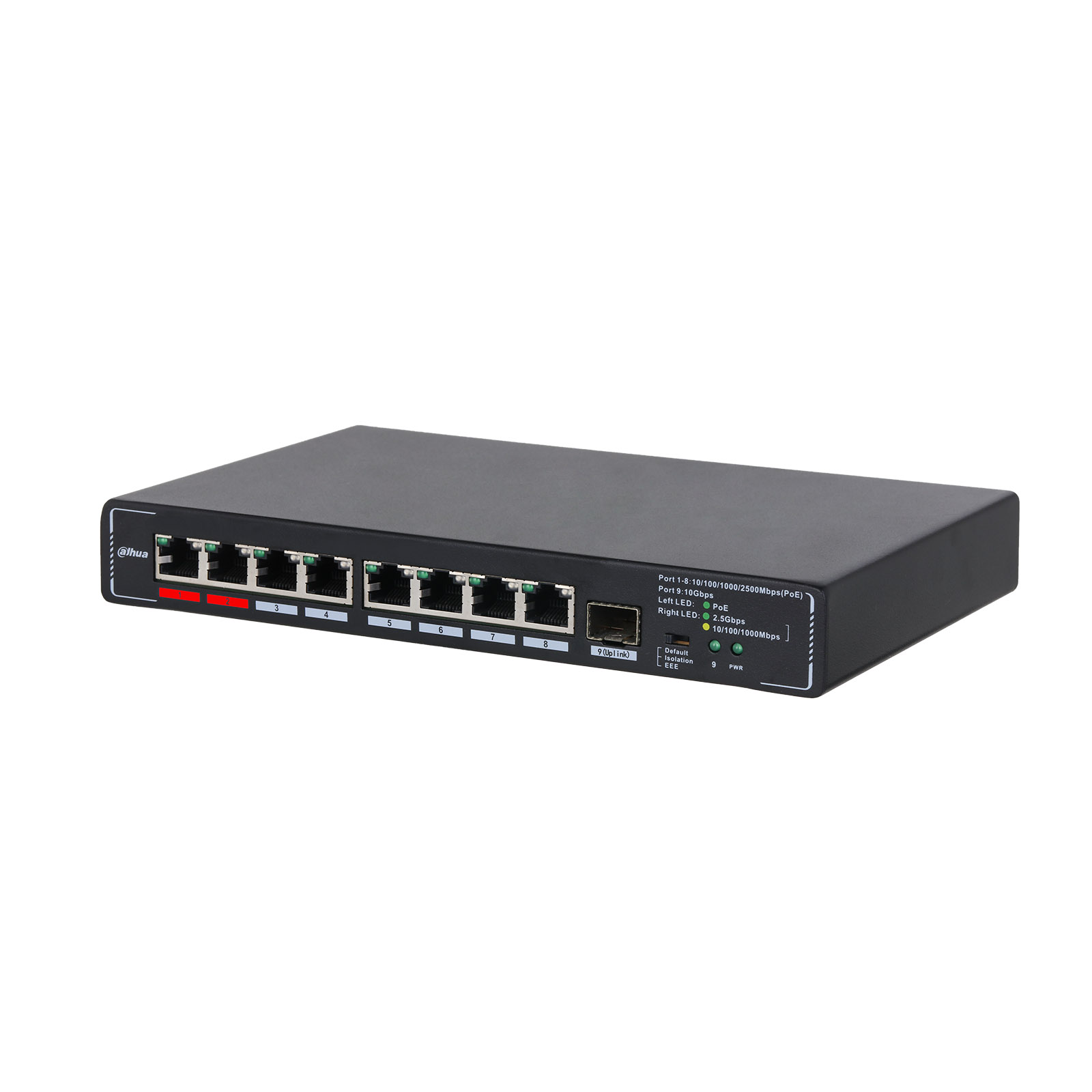

SWITCH DI RETE POE DA 9 PORTE PoE - DAHUA - SMG1009XP

8 × RJ-45 10/100/1000/2500 Mbps (PoE) - Port 9: 1 × SFP 1/10 Gbps - Unmanaged MAC Table Size 4K - Packet Buffer 8Mbit - Switching Capacity 60Gbps - Capacità potenza switch 180W - Dimensioni 220x141x30 mm.

- Switch di rete - Dahua - SMG1009XP
- 9 Porte 8 × RJ-45 10/100/1000/2500 Mbps (PoE) - 1 × SFP 1/10 Gbps
- Unmanaged
- Packet Buffer size 8 Mbits
- MAC Table SIze 4K
- Capacità di switching 60Gbps
- Potenza PoE 180W
- Dimensioni: 220 mm × 141 mm × 30 mm
- Peso netto del prodotto: 0.73 kg
- Temperatura di funzionamento supportata: –10 °C to +55 °C
Scheda tecnica
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Layer |
Unmanaged |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Switching Capacity |
60 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Forwarding Rate |
44.64 Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Description of Function Slots |
Port 1-8: 8 × RJ-45 10/100/1000/2500 Mbps (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
5%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Idling load: 23.8 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
External power supply: 53 VDC, max 3.77 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Idling: 10.48 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Statics Protection |
Air discharge: 8 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lighting Protection |
Common mode: 4 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.73 kg (1.61 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1.796 kg (3.95 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
220 mm × 141 mm × 30 mm (8.66" × 5.55" × 1.18") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
302 mm × 185 mm × 118 mm (11.88" × 7.28" × 4.64") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Desktop mount; wall mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Power | Port 1-2 ≤ 90 W, Port 3-8 ≤ 30 W, total ≤ 180 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hardware |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DIP Switch |
Default: Default setting |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Buffer Size |
8 Mbit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Jumbo Frame |
12K Byte |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MAC Table Size |
4K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Standard |
IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad; IEEE 802.3ae |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packing List |
1 × User Manual |
