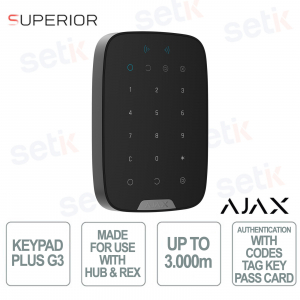

139675.83.BL1 | TASTIERA WIRELESS CON PULSANTI TOUCH CHE SUPPORTA L'AUTENTICAZIONE TRAMITE PASS, TAG E CODICI

Il Superior KeyPad Plus G3 Jeweller, 139675.83.BL1, Nero è una tastiera wireless professionale con tasti touch progettata per garantire un controllo intuitivo e sicuro del sistema di sicurezza, grazie all’autenticazione avanzata tramite Pass, Tag e codici basati su tecnologia DESFire®, resistente a clonazione e accessi non autorizzati. Supporta quattro tipologie di codici, inclusi quelli per utenti non registrati e codici di coercizione, e offre funzioni intelligenti come panic button, silenziamento allarme incendio e automazioni attivabili tramite modalità di sicurezza. La comunicazione avviene tramite tecnologia Superior Jeweller, con portata fino a 3.500 m, crittografia avanzata e autenticazione del dispositivo, mentre la resistenza al sabotaggio include tamper, protezione anti-jamming e rilevazione immediata di scollegamento. Facile da installare via QR code e alimentato da batterie preinstallate fino a 4,5 anni, garantisce massima affidabilità per impianti professionali certificati.
Specifiche principali:
- Autenticazione avanzata con Pass, Tag e codici DESFire®
- Quattro tipologie di codici: utenti registrati, non registrati, keypad code e RRU code
- Codici coercitivi per inviare allarme silenzioso in caso di minaccia
- Tasti touch, funzioni dedicate: panic button e fire alarm mute
- Comunicazione Superior Jeweller fino a 3.500 m con crittografia avanzata
- Supervisione costante: notifiche batteria bassa e malfunzioni
- Protezione anti-sabotaggio: tamper, anti-spoofing e frequency hopping
- Installazione rapida via QR code e autonomia fino a 4,5 anni
Ulteriori dettagli
Scheda tecnica
| 139675.83.BL1 | |
| Wireless communication | Superior Jeweller communication technology Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweller is an upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3). Key features:
865.0 - 868.0 MHz 868.0 - 868.6 MHz 868.7-869.2 MHz 869.4 - 869.65 MHz Maximum effective radiated power (ERP) up to 20 mW Automatic power control to reduce power consumption and radio interference. Radio signal modulation GFSK Radio communication range Up to 3.500 m Up to 11.450 ft Encrypted communication All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. Frequency hopping To prevent radio interference and jamming. |
| Key features | Sensor type capacitive Authentication methods
DESFire® EV1, EV2, EV3 ISO 14443-А (13.56 MHz) Arming without entering a code When enabled, this feature allows users to arm the facility without entering a code or presenting an access device. Group security management Users can change the security mode of groups they have access to directly from the keypad. Authorization confirmation with a passcode This feature activates two-factor authentication. When enabled, users must first present an access device (Pass or Tag) and then enter a passcode to confirm authorization. Function button Operates in one of the following modes:
When enabled, the keypad uses LED indicators to show the current security mode, as well as detector malfunctions or loss of communication with the hub. ACE Type type B |
| Sabotage protection | Unauthorized access auto-lock The keypad locks if an incorrect code is entered or unverified access devices are used more than 3 times in a row within 1 minute. The lock duration can be adjusted by a PRO or user with admin rights in an Ajax app. Tamper alarm The system sends notifications about attempts to detach the keypad from the surface or remove it from the mounting panel. Holding screw Secures the device on SmartBracket. Protection against spoofing Ensures device authentication during communication with a hub. Communication loss detection after 36 seconds of no signal Detection time depends on Jeweller or Jeweller/Fibra settings. |
| Power supply | Battery 4 × AA Pre-installed. Type type C Calculated battery life TBC Operating voltage rang 2.25−3.30 V⎓ Nominal operating voltage 3 V⎓ Quiescent current consumption at nominal voltage 130 μA Maximum current consumption at nominal voltage 10.5 mA Full battery capacity 6.000 mAh Low battery voltage 2.5 V⎓ Low battery recovery voltage 2.7 V⎓ End-of-life battery voltage 2.25 V⎓ The device switches off. End-of-life battery capacity 500 mAh Manufacturer Energizer |
| Enclosure | Dimensions dimensions 165 × 113 × 20 mm 6.50" × 4.45" × 0.79" Weight of the detector 252 g 8.89 oz Operating temperature range from −10 °C to +40 °C from 14 °F to 104 °F Operating humidity up to 75% Protection class IP30, IK06 |
| Color | Black |
| Complete set | Superior KeyPad Plus G3 Jeweller SmartBracket mounting panel 4 × AA battery (pre-installed) Installation kit Quick start guide |
| Warranty | 24 months |
