IPC-HUM4431S-L4 - Telecamera con ottica pinhole fissa da 2.8 mm e sensore CMOS da 4MP garantisce immagini ad alta definizione anche in condizioni di scarsa luminosità grazie alla tecnologia Starlight. Registra in risoluzione massima 2688×1520 a 20 fps con compressione H.265+ per ridurre il consumo di banda e spazio. Include funzioni intelligenti come rilevamento intrusione, tripwire e motion detection, oltre a microfono integrato per audio bidirezionale. Compatta e discreta, è ideale per banche, vetrine o spazi pubblicitari con protezione WDR, anti-manomissione e sicurezza informatica avanzata. Dahua
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

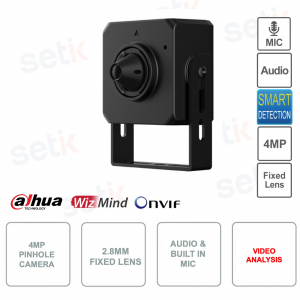

IPC-HUM4431S-L4 | MINI TELECAMERA IP ONVIF® DAHUA 4MP - OTTICA 2.8MM - VIDEO ANALISI E AUDIO - MICROFONO

La telecamera pinhole Dahua IPC-HUM4431S-L4 offre una sorveglianza discreta con sensore CMOS da 4MP e ottica fissa da 2.8 mm, ideale per installazioni nascoste in ambienti sensibili. Supporta risoluzione fino a 2688×1520 a 20 fps con codifica Smart H.265+ per risparmio di spazio, tecnologia Starlight per visione in condizioni di scarsa illuminazione e funzioni intelligenti come tripwire, intrusion e rilevamento manomissione. Perfetta per banche e negozi, garantisce qualità video avanzata e protezione informatica completa.
Specifiche principali:
- Sensore CMOS 4MP e ottica 2.8 mm
- Codifica Smart H.265+ e tecnologia Starlight
- Funzioni IVS: intrusione e tripwire
- WDR 120dB e rilevamento manomissione
- Audio bidirezionale con microfono integrato
- Protezione cybersecurity avanzata
Ulteriori dettagli
✅ Microfono:

Scheda tecnica
IPC-HUM4431S-L4 | |||||
Technical Speci?cation |
|||||
Camera |
|||||
Image Sensor |
1/3" CMOS |
||||
Max. Resolution |
2688 (H) × 1520 (V) |
||||
ROM |
128 MB |
||||
RAM |
128 MB |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||
Min. Illumination |
0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) |
||||
S/N Ratio |
>56 dB |
||||
Lens |
|||||
Lens Type |
Fixed-focal |
||||
Lens Mount |
M12 |
||||
Focal Length |
2.8 mm |
||||
Max. Aperture |
F2.0 |
||||
Field of View |
Horizontal: 96°; Vertical: 55°; Diagonal: 110° |
||||
Iris Control |
Fixed |
||||
Close Focus Distance |
0.8 m (2.62 ft) |
||||
Smart Event |
|||||
IVS |
Intrusion; tripwire |
||||
Video |
|||||
Video Compression |
H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
||||
Smart Codec |
Smart H.265+; Smart H.264+ |
||||
Video Frame Rate |
Main stream: 2688 × 1520 @(1–20 fps )/2560 × 1440 @ (1–25/30 fps ) sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
||||
Stream Capability |
2 streams |
||||
Resolution |
4M (2688 × 1520); 3.6 M (2560 × 1440); 3M (2304 ×1296); 1080p (1920 × 1080); 1.3M (1920 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF(352 ×288/352 × 240) |
||||
Bit Rate Control |
CBR/VBR |
||||
Video Bit Rate |
H.264: 3 kbps–6144 kbps H.265: 3 kbps–6144 kbps |
||||
Day/Night |
Color/B/W |
||||
BLC |
Yes |
||||
HLC |
Yes |
||||
WDR |
120 dB |
||||
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
||||
Gain Control |
Auto; manual |
||||
Noise Reduction |
3D NR |
||||
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
Region of Interest (RoI) |
Yes (4 areas) |
||||
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
||||
Mirror |
Yes |
||||
Privacy Masking |
4 areas |
||||
Audio |
|||||
Built-in MIC |
Yes |
||||
Audio Compression |
G.711a; G.711Mu; PCM; G.726 |
||||
Alarm |
|||||
Alarm Event |
Network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception |
||||
Network |
|||||
Network Port |
RJ-45 (10/100 Base-T) |
||||
SDK and API |
Yes | ||||
Cyber Security |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade | ||||
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour | ||||
Interoperability | ONVIF® (Profile S/Profile T); CGI; P2P; Milestone | ||||
User/Host | 20 (Total bandwidth: 48 M) | ||||
Storage | FTP; SFTP; NAS | ||||
Browser | IE Chrome Firefox | ||||
Management Software | Smart PSS; DSS; DMSS | ||||
Mobile Client | iOS; Android | ||||
Certification | |||||
Certifications | CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B | ||||
Port | |||||
Audio Input | 1 channel (RCA port) | ||||
Audio Output | 1 channel (RCA port) | ||||
Power | |||||
Power Supply | 12 VDC | ||||
Power Consumption | Basic: 1.4 W (12 VDC) Max. (H.265 + intelligence on + WDR): 1.8 W (12 VDC) | ||||
Environment | |||||
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
Operating Humidity | ≤95% | ||||
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
Structure | |||||
Casing | Metal | ||||

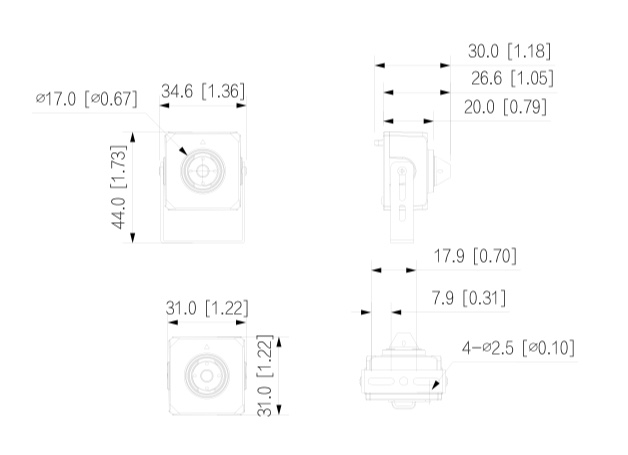

Product Dimensions | 31.0 mm × 31.0 mm × 30.0 mm (1.22" × 1.22" × 1.18") (L × W × H) | ||||
Net Weight | 81 g (0.18 lb) | ||||
Gross Weight | 138 g (0.30 lb) |
