IP POE TELECAMERA TERMICA DAHUA PROFESSIONALE CON MISURAZIONE TEMPERATURA / CALORE - EXPLOSION PROOF ATEX IECEX - DAHUA - TPC-AEBF5201-TB3-DW-S4-G

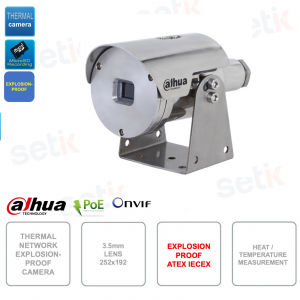

Telecamera Termica IP POE Dahua - TPC-AEBF5201-TB3-DW-S4-G
Ottica 3.5mm - Risoluzione delle immagini 292x192 pixel - Sensibilità: 35mK - Spettro visivio: 8-14uM - A prova di esplosione ATEX IECEX - Rilevamento calore / Temperatura - Rilevamento persone (fino a 150m) + rilevamento veicoli (fino a 400m) - 1x porta RJ45 LAN Ethernet 100Mbps Base-T - 1x RS485 - 2 ingressi e 1 uscita allarme - 12 regole per Rilevamento della temperatura - Slot MicroSD 256GB (Non inclusa) - Ideale per l'uso in esterni - Supporta alimentazione ePoE - Protezione IP68 e TVS 6000 dai fulmini.
CHE COS'E' IL RILEVAMENTO TERMICO?Ogni oggetto con una temperatura superiore allo zero assoluto (-273,15°C) emette radiazioni. Le radiazioni infrarosse si trovano tra lo spettro visibile (0.4-0.75um) e le microonde (>15um). Anche se non possiamo vederle le percepiamo tutti i giorni: il sole e il fuoco sono fonte di radiazioni infrarosse che possiamo percepire attraverso il calore. La qualità delle immagini dipende dalla differenza di temperatura e alti differenziali producono immagini migliori. Ecco come distinguiamo la differenza di temperatura nelle riprese termiche. ![]() RILEVAMENTO TERMICO E MISURAZIONE DELLA TEMPERATURA CORPOREAIl rilevamento termico, negli anni, si è evoluto e grazie alle molteplici richieste e ai numerosi ambiti d'impiego nella sorveglianza, si è giunti ad avere telecamere termiche che riescono a misurare la temperatura corporea delle persone.  ![]()  |
Dettagli prodotto
- Telecamera termica IP POE ONVIF - Dahua - TPC-AEBF5201-TB3-DW-S4-G
 - Risoluzione termica 252x192
 - A prova di esplosione: Explosion Proof ATEX IECEX
 - Rilevamento temperatura e calore
 - Rilevamento persone fino a 150m
 - Rilevamento veicoli fino a 400m
 - Sensibilità: fino a 35 mK
 - Ottica termica da 3.5mm
 - Spettro visivo: 8-14 Um
 - 1 porta RJ45 LAN Ethernet 100 Mbps
 - 1 porta RS485
 - Allarme: 2 ingressi e 1 uscita
 - Rilevamento delle temperature (12 regole)
 - Slot per Micro SD card (fino a 256 GB, non inclusa)
 - Alimentazione del dispositivo: 12 Vdc/PoE
 - Supporta alimentazione via PoE: Power Over Ethernet
Scheda tecnica
|
 Thermal  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Detector Type  |
 Vanadium oxide uncooled focal plane detector  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Effective Pixels  |
 256 (H) × 192 (V)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Pixel Pitch  |
 12 μm  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Spectral Range  |
 8 μm–14 μm  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Sensitivity (NETD)  |
 ≤35 mK (@f/1.0)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Focal Length  |
 3.5 mm  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Field of View  |
 3.5 mm: H: 50.6°; V: 37.8°  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Thermal Focus Control  |
 F1.0  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Detection Distance  |
 Vehicle: 400 m (1,312.34 ft); Human: 150 m (492.13 ft)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Recognition Distance?  |
 Vehicle: 100 m (328.08 ft); Human: 38 m (124.67 ft)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Identification Distance?  |
 Vehicle: 50 m (164.04 ft); Human: 19 m (62.34 ft)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Note: ?Detection Distance: Detects objects, but cannot recognize their characteristics (objects must cover more than 3.6 pixels of the image). ?Recognition Distance: Classifies objects into general categories, such as human, vehicle (the object must cover more than 14 pixels of the image). ?Identification Distance: Classifies objects into specific categories based on their characteristics, such as engineering truck, car (the object must cover more than 28 pixels of the image).  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Digital Detail Enhancement (DDE)  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Thermal AGC  |
 Auto/Manual  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Thermal Noise Reduction  |
 2D NR/3D NR  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Image Flip  |
 180°; Mirror  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Color Palettes  |
 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Temperature Measurement Range  |
 Low temperature mode: –20 °C (–4 °F) to +150 °C (+302 °F) High temperature mode: +100 °C (+212 °F) to +550 °C (+1022 °F) Auto mode  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Temperature Measurement Accuracy  |
 Max. (±2 °C, ±2%) Operating temperature: –20 °C (–4 °F) to +50 °C (+122°F)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Temperature Measurement Mode  |
 Spot: 12 Line: 12 Area: 12 Support 12 rules simultaneously  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio and Video  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Video Compression  |
 H.264 (High, Main); M-JPEG; H.265  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Resolution  |
 Main stream: 1280 × 960 ; 1024 × 768; 640 × 480; 256 × 192; 1280 × 960 (default) Sub stream: 640 × 480; 256 × 192; 256 × 192 (default)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Video Frame Rate  |
 Thermal: 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Image Encoding Format  |
 JPEG  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Function  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Network Protocol  |
 IPv4/IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Region of Interest (RoI)  |
 Yes (customizable)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Storage  |
 FTP; Micro SD card (256 G, hot swapping)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Interoperability  |
 ONVIF; CGI  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Browser  |
 IE: IE8 and the later, and explorer with IE core Google: 42 and the earlier Firefox: 42 and the earlier  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 User/Host  |
 Up to 6 (total bandwidth: 64 MB)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Security  |
 Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 User Management  |
 Up to 20 users; supports multi-level user permissions (2 levels): management group and user group  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Malfunction Detection  |
 Network disconnection detection; IP conflict detection; memory card state detection; memory space detection  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Micro SD Card (Max.)  |
 256 GB  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Intelligence  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Heat Detection  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Cold/Hot Spot Trace  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Port  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Network Port  |
 1 × RJ-45 (10/100 Base-T)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm Input  |
 2  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm Output  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Supply  |
 12 VDC, PoE (802.3af)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Consumption  |
 <3 W  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 ePoE  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Environment  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Temperature  |
 –40 °C to +60 °C (–40 °F to +140 °F)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Humidity  |
 ≤95%  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Physical Characteristics  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Protection  |
 IP68  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Reliability  |
 Surge protection: 6 kV Air discharge of 15 kV Contact discharge of 8 kV  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Structure  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Product Dimensions  |
 176.1 mm × 114.7 mm × 96 mm (6.93" × 4.52" × 3.78") (L × W × H)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Packaging Dimensions  |
 257 mm × 188 mm × 187 mm (10.12" × 7.4" × 7.36") (L × W × H)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Net Weight  |
 ≤2 kg (4.41 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Gross Weight  |
 ≤2.5 kg (5.51 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Certification  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Certifications  |
 CE/FCC  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Explosion-proof certification  |
 ATEX, IECEx: II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Temperature Measurement Distance  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Distance

  |
Max. Distance |

  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 1 m (3.28 ft)  |
5 m (16.4 ft) |

  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Note: The table displays the measured distances obtained from using the target size 0.1 m x 0.1 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ulteriori dettagli
![]()  |
Il Vantaggio di una telecamera PoE è evidente, permette di essere alimentata con lo stesso cavo con la quale si comunica senza portare ulteriori cavi d'alimentazione e senza dover installare un sistema di alimentazione separato, una telecamera PoE garantisce tensioni costanti ed installazione semplice |
![]()  |
Onvif, lo standard in assoluto per le telecamere IP. Essere Onvif garantisce compatibilità con qualsiasi sistema di registrazione moderno. NON essere Onvif, significa avere una telecamera fine a se stessa che non potrà mai essere utilizzata insieme a sistemi di registrazione |
![]()  |
 Questa telecamera è una TELECAMERA TERMICA.
 Spettro visivo da 8 a 14µm Risoluzione camera termica 292x152 pixel  |
![]()  |
 Prodotto a prova di esplosione: Explodion Proof ATEX IECEX Certificazione: II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db  |
![]()  |
 Questa telecamera prevede la SMART DETECTION - Classificazione Persone / Veicoli - Rilevazione Fumo - Rilevamento temperatura - Rilevamento calore  |
|
 Telecamera Termica... cos'è? e come sceglierla? Misurazione Temperatura Corporea? Cosa significa?  |
|
![]()  |
E' estremamente utile avere in un sistema TVCC anche Ingressi/Uscite per poter comandare relè o attivare una registrazione in seguito ad un evento Questa Telecamera ha 2 Ingressi ed 1 Uscita  |
![]()  |

  |
|
 Possibilità di inserire Micro SD fino a massimo 256GB - non inclusa, venduta separatamente  |
|
![]()  |
Livello di protezione IP68 ( Polveri / Immersioni continue ) |
| Questo prodotto è coperto da Garanzia di 24 mesi. |
