HAC-HDW1100R-S3 - è una telecamera eyeball IR da 1MP con ottica fissa da 3.6mm, ideale per videosorveglianza HD 720p su impianti analogici e ibridi. Dotata di tecnologia HDCVI, consente trasmissioni fino a 1200 m su cavo coassiale e integra un LED Smart IR per visione notturna fino a 20 metri. Compatibile con segnali HDCVI, CVBS e altri formati HD analogici, offre installazione semplice, OSD multilingua, uscita HD/SD selezionabile e resistenza a temperature estreme da -40°C a +60°C. Dahua
Riferimento: HAC-HDW1100R-S3
Marca: Dahua
EAN: 8050617260702
Disponibilità: 31

FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

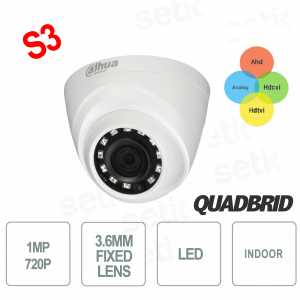

HAC-HDW1100R-S3 | TELECAMERA MINI DOME OTTICA FISSA 3.6mm - 4IN1 - VISIONE NOTTURNA

La Dahua HAC-HDW1100R-S3 è una telecamera eyeball IR da 1MP della serie Lite, progettata per offrire videosorveglianza HD 720p con semplicità e qualità a un prezzo accessibile. Grazie alla tecnologia HDCVI, supporta trasmissione video, audio, dati e alimentazione su un unico cavo coassiale, con compatibilità multiformato e visione notturna Smart IR fino a 20 metri. Ideale per impianti analogici da aggiornare senza rifare il cablaggio.
Specifiche principali:
- Risoluzione HD 720p a 25/30 fps e sensore CMOS da 1/3"
- Ottica fissa da 3.6mm (opzionale 2.8mm/6mm), angolo di visione fino a 91.6°
- Smart IR con illuminazione infrarossi fino a 20 metri
- Uscita video HDCVI/CVBS commutabile e OSD multilingua
- Operatività in condizioni estreme da -40°C a +60°C
- Alimentazione 12V DC ±25%, basso consumo (max 2.8W)
Ulteriori dettagli

Scheda tecnica
Model | HAC-HDW1100R-S3 |
Camera | |
Image Sensor | 1/3" CMOS |
Effective Pixel | 1280(H)×720(V), 1MP |
Scanning System | Progressive |
Electronic Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
Min. Illumination | 0.05Lux/F2.0, 0Lux IR on |
S/N Ratio | More than 65dB |
IR Distance | Up to 20m (66feet) |
IR On/Off control | Auto / Manual |
IR LEDs | 12 |
Lens | |
Lens Type | Fixed lens / Fixed iris |
Mount Type | Board-in |
Focal Length | 3.6mm |
Max Aperture | F2.0 |
Angle Of View | H: 72.3° |
Focus Control | N/A |
Close focus distance |
500mm (400mm/1300mm) |
Pan / Tilt / Rotation | |
PAN/Tilt Range |
Pan: 0° ~ 360° |
Video | |
Resolution |
720P (1280×720) |
Frame Rate | 25/30fps@720P |
Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
Day/Night | Auto (ICR) / Manual |
OSD Menu | Multi-language |
BLC Mode | BLC / HLC / DWDR |
WDR | DWDR |
Gain control | AGC |
Noise reduction | 2D |
White Balance | Auto / Manual |
Smart IR | Auto / Manual |
Certifications | |
Certifications |
CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Interface | |
Video Interface | N/A |
Electrical | |
Power Supply | 12V DC ±25% |
Power Consumption | Max 2.8W (12V DC, IR on) |
Environmental | |
Operating Consumption | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F) |
Storage condition | 40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
Ingress Protection &Vandal Resistance | NA |
Construction | |
Casing | Plastic |
Dimensions | Φ85.4mm×69.1mm(Φ3.36"×2.72") |
Net Weight | 0.11kg (0.24lb) |
Gross Weight | 0.17kg (0.37lb) |
