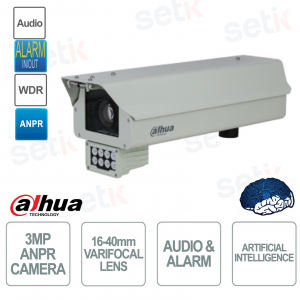

Telecamera lettura targhe ANPR - 3MP - Ottica 16-40mm - LED IR 23-30m - Copertura 2 Corsie - IP66 & IK10
Telecamera Dahua ITC352-AU3F-IRL8ZF1640-C1 - Bullet 3MP ANPR Camera IP esterna con lettura targhe e copertura fino a 3 corsie - Risoluzione 3MP - Sensore CMOS GS 2/3" - Ottica per rilevamento/riconoscimento veicoli e targhe - Illuminatore IR 8 LED 23-30m range - GPS - Slot Per TF Card 256GB (non inclusa) - Metadati Video - WDR 120dB - 2x LAN 1000M - 2xRS232 - Audio - Allarme - velocità max. rilevata 300 km/h - Protezione da esterno IP66 e IK10.
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>
AI TELECAMERA ANPR DAHUA IP 3MP - OTTICA VARIFOCALE 16-40MM - RISOLUZIONE 9MP - LETTURA TARGHE E RICONOSCIMENTO VEICOLI - METADATA - ITC352-AU3F-IRL8ZF1640-C1

AI Telecamera IP esterna 3MP ANPR - Dahua - ITC352-AU3F-IRL8ZF1640-C1
Risoluzione 3MP @50fps - Ottica varifocale 16-40mm - Copertura fino a 2 corsie - Velocità massima rilevata fino a 300 km/h
Illuminatore IR 8 LED 23-30m - Audio 1in/1out - Allarme: 4in/2out - GPS - RS485 - RS-232 - WDR 120dB - AWB - Intelligenza Artificiale: Rilevamento veicolo e Metadati (dimensione, colore, modello etc) - Slot per TF Card 256GB (non inclusa) - Alimentazione: 100~240 Vac <20 Welle migliori telecamere bullet
|

 L'intelligenza artificiale (AI) si riferisce al ramo della scienza e dell'ingegneria che produce macchine intelligenti, in particolare programmi intelligenti per computer. Nel settore della sicurezza invece, l'intelligenza artificiale utilizzata è quella che permette di creare dispositivi avanzati, per l'analisi ambientale.  |
|
 TELECAMERE ANPR: DI CHE COSA SI TRATTA? La presenza di questa tecnologia permette una visione adeguata anche in presenza di illuminatori su targhe.  |
Dettagli prodotto

- Sensore d'immagine CMOS GS CMOS 2/3"
- Rilevamento Veicolo: Supporta rilevazione video dei veicoli e relative direzioni
 - Strutturazione Dati Veicolo: Riconoscimento targhe, dimensione veicoli, colore veicoli etc..
 - Rilevamento dimensione veicoli: Fino a 11 dimensioni rilevabili: autobus grande, camion pesante, camion medio, minivan etc..
 - Rilevamento Colore veicolo: Fino a 11 colorazioni rilevabili: bianco, nero, blu, rosso, giallo etc...
 - Rilevamento modello veicolo: Rilevamento video o loop video
 - Menu OSD in sovraimpressione: Tempo,luogo, numero targa, etc..
 - Controllo barriera: uscita relè per controllo barriera

- RS485: 2x
- Garanzia 24 mesi del produttore
Scheda tecnica
| ITC352-AU3F-IRL8ZF1640-C1 | |
| Camera | |
| Image Sensor | 2/3" GS-CMOS |
| Shutter Mode | Single shutter; Double shutters; Three shutters |
| Electronic Shutter Speed | Auto/Manual 1/50 s–1/100,000 s |
| Noise Reduction | 3D NR |
| S/N Ratio | 48 dB |
| WDR | 120 dB |
| Min. Illumination | 0.001 lux |
| Day/Night | ICR auto switch: Uses IR cut-off filter (IRCF) with polarizer in the daytime, and uses ordinary filter at night. |
| Illuminator | |
| Illuminator Number | 8 |
| IR | 850 nm |
| Electronic Shutter Speed | 23 m-30m (75.46 ft–98.43 ft) (brightness adjustable) |
| IR Covered lane | 2 lanes |
| Lens | |
| Lens Type | Motorized Vari-focal |
| Focal Length | 16 mm–40mm |
| Max. Aperture | F1.5 |
| Iris Type | P-Iris |
| Field of View | Horizontal: : 12.8°–30.28° Vertical: 7.2°–16.96° Diagonal: 13.2°–30.9  |
| Function | |
| Trigger Mode | Video trigger/Radar |
| Speed Detection Range | 0 km/h–300 km/h |
| OSD Overlay | Time; address; lane No.; plate; plate color; and more |
| Alarm Event | Storage full; storage error; external alarm; no storage card; license plate blocklist; illegal access; network disconnection; IP conflict |
| Automatic Network Replenishment (ANR) | Platform and FTP (TF card is required) |
| Auto Registration | Yes |
| Intelligence | |
| Target Detection | Motor vehicle; motorcycle |
| Face Detection | Detects the driver and front-seat passenger of motor vehicles, and motorcycle drivers; extracts face images |
| ANPR | Adopts developed algorithms to recognize license plate numbers and letters |
| Vehicle Type Recognition | Vehicle head: SUV, Large bus, sedan, light truck, pickup, heavy truck, medium truck, van, medium bus, MPV Vehicle tail: SUV, large bus, sedan, light truck, pickup, heavy truck, medium truck, van  |
| Accuracy (under recommended installation and lighting conditions) | Capture rate > 99% LPR accuracy > 98%  |
| Vehicle Color Recognition | White, pink, black, red, yellow, gray, blue, green, dark orange, purple, brown, and silver gray (color recognition is not supported during the nighttime)  |
| Vehicle Brand/Logo Recognition | Vehicle head mode: Acura, Alfaromeo, Ashokleyland, Astonmartin, Audi, Baic, Bently, Benz, BMW, Buick, BYD, Cadillac, Chery, Chevrolet, Chrysler, Citroen, Dacia, Daihatsu, Datsun, Dodge, DS, Ferrari, Fiat, Force, Ford, Foton, Geely, GMC, Greatwall, Hino, Honda, Hyundai, Infiniti, Isuzu, Iveco, Jac, Jaguar, Jeep, Kia, Kinglong, Land, Lexus, Lifan, Lincoln, Mahindra, MAN, Maserati, Mazda, Mercury, MG, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Rollsroyce, Saab, Scania, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Tesla, Toyota, UD, Volkswagen, Volvo |
| Vehicle logo | ANPR mode: Wrong-way driving, speeding, driving slow, crossing the white solid line, crossing the yellow solid line, illegal lane change, unfasten seat belt, calling while driving, smoking while driving  E-Police mode: Running a red light, wrong-way driving, crossing the solid white line, crossing the solid yellow line, disobeying the direction arrow, illegal left turn, illegal right turn, illegal U-turn (not supported by side mounted cameras), and crossing the stop line  |
| Motorcycle Violation Capture | Captures traffic violations including carrying passenger, not wearing helmet, and wrong-way driving |
| Motor Vehicle Violation Snapshot | ANPR mode: Wrong-way driving, speeding, driving slow, crossing the solid white line, crossing the solid yellow line, illegal lane change, unfasten seat belt, calling while driving, smoking while driving |
| Traffic Flow Detection | Generates statistics on vehicle flow, queue length average speed, lane occupancy, and more |
| Traffic Event | Motor vehicle illegal stopping on the roadway; traffic congestion |
| Video | |
| Video Compression | H.265; H.264M; H.264H; MJPEG |
| Video Resolution | 3M (2048 × 1536); UXGA (1600 × 1200); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) |
| Video Frame Rate | 50 Hz: Maximum 50 fps; default main stream (1536 × 2048@25 fps), sub stream (1600 × 1200@25 fps) 60 Hz: Maximum 30 fps; default main stream (1536 × 2048@30 fps), sub stream (1600 × 1200@30 fps)  |
| Video Bit Rate | H.264: 32 kbps–32767 kbps H.265: 32 kbps–32767 kbps MJPEG: 512 kbps–32767 kbps  |
| Bit Rate Control | CBR/VBR |
| White Balance | Auto; Night; Customized Color Temperature |
| Edge Enhancement | Yes |
| HLC | Yes |
| BLC | Yes |
| Bad Pixel Correction | Yes |
| Gain Range | 0-100 |
| Image | |
| Composite Image | Supports combining up to 4 images into a composite image |
| Image Resolution | 2048 (H) × 1536 (V) (OSD black background is not calculated in the pixels) |
| Image Encoding Format | JPEG |
| Image Tampering Prevention | Watermark and verification are available for videos and images |
| Network | |
| Network Port | 2 × RJ-45 Ethernet ports, 10/100/1000 M network transmission |
| SDK and API | Yes |
| Security | Authorized username and password, MAC address binding, HTTPS encryption, and network access control |
| Network Protocol | IPv4/IPv6; HTTP; TCP/IP; UDP; NTP; DHCP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T) |
| Browser | Microsoft Edge IE: IE9–IE11 Chrome: Chrome 41 and earlier Firefox: Firefox 49 and earlier For Win 10 users, run the browser as administrator  |
| Positioning | GPS |
| Network Status Monitoring | NTP; GPS |
| Port | |
| Storage | 1, supports maximum 256 GB TF card local storage |
| Iris Control | 1, connects to DC iris or P iris |
| Focus Control | 1, connects to motorized vari-focal lens |
| Frequency Source Sync | 1, supports synchronizing the camera with the mains electricity |
| Peripheral Light | 7, optocoupler signal output (can be configured as flash light or LED strobe sync output interface, frequency adjustable) |
| USB | 2 USB 3.0 Ports |
| RS-485 | 2, connects to devices such as signal detector, radar, and more |
| RS-232 | 4 (1 is used for serial debugging and 3 for connecting to radars) |
| I/O | 4, same functions as ALARM IN port |
| Audio Input | 1 3.5 mm (0.14'') jack |
| Audio Output | 1 3.5 mm (0.14'') jack |
| Alarm Input | 4, same functions as I/O port |
| Alarm Output | 2 (AO1 is for relay output and AO2 for optocoupler output) |
| Power Output | 12 VDC ± 10% voltage output, ≤1.5 A current output |
| General | |
| Power Supply | 100 –240 VAC (50 Hz/60 Hz) |
| Power Consumption | ≤20 W |
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | 10%–90% (RH) |
| Storage Humidity | 0%–90% (RH) |
| Certifications | CE: 4789630630-1, FCC: 4789630630-2 |
| Protection | IP66, IK10 |
| Product Dimensions | 554.0 mm × 204.2 mm × 209.6 mm (21.81" × 8.04" × 8.25") (L × W × H) |
| Net Weight | 4.6 kg (10.14 lb) |
| Gross Weight | 6.6 kg (14.55 lb) |
| Installation | Center mount; side mount |
Ulteriori dettagli
![]()  |
 Le telecamere ANPR di Dahua offrono una gamma completa di funzioni per il riconoscimento targa. Integrano un algoritmo che rileva e cattura numeri di targa e ne archivia i dettagli in un database La telecamera può catturare e archiviare screenshot di targhe direttamente su una SD Card senza la necessità di un NVR
 Perché scegliere una telecamera ANPR Dahua? La gamma di telecamere ANPR Dahua incorpora immagini da 2 megapixel di alta qualità, lenti varifocali, fari antirollio e LED IR a lungo raggio per il riconoscimento della targa fino a 40 metri di distanza. Le telecamere offrono una funzione lista bianca / lista nera in grado di attivare eventi impostati in base alle targhe memorizzate. Inoltre...
 In che modo e dove può essere utilizzata? Una telecamera ANPR Dahua è adatta a varie tipologie di aree, tra cui ingressi ai parcheggi, aree controllate dalla barriera o monitoraggio della corsia. La telecamera può acquisire targhe fino ad una velocità di 25 miglia all'ora (40km/h)
 ![]()  |
|


  |
 AI | Intelligenza Artificiale Funzione LPR: Incorporato con il motore di Deep Learning LPR


  |
 ![]()  |
 Questa telecamera presenta una risoluzione di 3MP
  |
![]()  |
 Illuminatore Infrarosso con 8 leds e portata 23-30m  |
![]()  |
True WDR fino a 120dB WDR (Wide Dynamic Range): E' la soluzione professionale nei casi in cui si deve operare in condizioni di alto contrasto luce/ombra. Fondamentale in caso di riprese dall'interno verso l'esterno, targhe, punti in ombra o tutte le situazioni dove non è presente omogeneità di luce. ![]()  |
![]()  |
 Questa telecamera presenta:  |
| Questa telecamera presenta 1 ingresso + 1 uscita audio (RCA) | |
![]()  |

  |
![]()  |
 Slot per alloggiamento TF card 256GB (non inclusa)  |
|
 Questo prodotto è coperto da Garanzia di 24 mesi.  |
