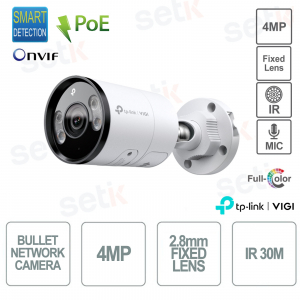

VIGI InSight S345(2.8mm) TP-Link VIGI 4MP Telecamera Bullet S345 IP ONVIF PoE Esterna con Visione Notturna Full Color 4Megapixel, ottica fissa 2.8mm, H.265+, IR 2 Led fino a 30m e 2 luce bianca fino a 30m, Tracciamento Automatico, Deterrenza attiva con allarme acustico e luminoso, Classificazione persone e veicoli, Video Analisi, Smart Video Enhancement, Audio bidirezionale (Microfono e Speaker), Slot MicroSD (non inclusa), monitoraggio da remoto, BLC, 3D DNR, HLC, WDR 120dB, protezione IP67, bottone reset, 184 × 74 × 74 mm
3 Anni di Garanzia
Riferimento: InSight S345(2.8mm)
Marca: VIGI
EAN: 8885020628043
Disponibilità: 25
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

InSight S345(2.8mm) TELECAMERA 4MP TP LINK VIGI BULLET ESTERNA CON VISIONE NOTTURNA | FULL-COLOR | DETERRENZA ATTIVA | AUDIO

Telecamera TP-Link VIGI 4MP Bullet IP ONVIF PoE Esterna - InSight S345(2.8mm)
Risoluzione 4Megapixel 30fps - Ottica fissa 2.8mm - Compressione H.265+ - Sensore 1/2.7" Progressive Scan CMOS
Visione Notturna Full-Color e IR luce bianca: Fino a 30 metri - SmartVid: Smart IR, WDR, 3D DNR, BLC
Audio Bidirezionale: Microfono + Speaker - Deterrenza Attiva: Allarmi acustici e luminosi
Video Analisi e Classificazione umani/veicoli
Slot MicroSD (non inclusa) - Protezione IP67 da esterno - Monitoraggio da remoto - 3 Anni di garanzia
DETTAGLI PRODOTTO
|| Specifiche Tecniche:
- Risoluzione Video: H.265+/H.265/H.264+/H.264
- Sensore: 1/2.7" Progressive Scan CMOS
- Illuminazione: Colore: 0.005 Lux@F1.6, 0 Lux con IR/Luce Bianca
- Frequenza dei Fotogrammi: 25fps/30fps (2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720)
- Alimentazione: PoE/12V DC
- Obiettivo: Lente fissa 2.8 mm
- Audio: Microfono e altoparlante integrati
- Memoria: Slot micro-SD
- Resistenza: IP67
|| Caratteristiche Principali:
- Visione Notturna Full-Color e IR: Fino a 30 metri di distanza per immagini nitide anche al buio.
- Patrol Personalizzato: Configura percorsi di monitoraggio su misura.
- Difesa Attiva: Allarmi acustici e luminosi integrati per rispondere a eventi sospetti.
- Audio Bidirezionale: Comunicazione in tempo reale tramite microfono e altoparlante.
- Storage On-Board: Supporta memorie micro-SD per archiviazione locale.
- Rilevamento Intelligente: Include rilevamento movimento con classificazione umana, manomissione della telecamera, attraversamento di linea e intrusioni in area.
- SmartVid: Tecnologie avanzate come Smart IR, WDR, 3D DNR e BLC migliorano la qualità video.
- Compatibilità ONVIF: Interoperabilità con altri dispositivi di sicurezza.
- Monitoraggio Remoto: Accesso tramite l'app VIGI, interfaccia Web e VIGI Security Manager.
- 3 Anni di Garanzia
SCHEDA TECNICA
| CAMERA | |
|---|---|
| Sensore di immagine | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Luminosità minima | Color: 0.005 Lux; 0 Lux with IR/white light |
| Meccanismo giorno/notte | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| FOV | 2.8mm: Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118° |
| Lens Mount | M12 |
| DORI Distance | 2.8 mm: Detect: 64 m (210 ft) Observe: 27 m (89 ft) Recognize: 13 m (43 ft) Identify: 6 m (20 ft) |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| ILLUMINATOR | |
| IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 2 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2688 x 1520 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
| Image Settings |
|
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Comunicazione audio | Two-Way Audio |
| Ingresso audio | Yes |
| Uscita audio | Yes |
| Codec audio | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S/T/G |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Sicurezza | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALLARME E GESTIONE EVENTO | |
| Smart Event |
|
| Basic Event |
|
| Alarm Linkage |
|
| Linkage Method | N/A |
| Output Notification | Message Push |
| Deep Learning Function | |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| INTERFACCE | |
| Interfaccia di rete | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Allarme | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| Tasto | Reset Button |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERALE | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Contenuto della confezione | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Metal |
| Net Weight | 0.525 Kg |
| Power Supply | 12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 10.7 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
![]() |
|
|
Rilevamento persone e analisi dei veicoli Cerca e filtra le persone o i veicoli di interesse in base a molti attributi diversi, rendendo la ricerca post-evento più rapida e semplice. |
|
|
I chip AI integrati nella telecamera VIGI supportano algoritmi avanzati che consentono di distinguere esseri umani e veicoli da altri oggetti in movimento, per un'estrema personalizzazione delle opzioni di monitoraggio e di azionamento dell'allarme.
Classificazione persone e veicoli
Classificazione veicoli On
|
|
|
|
|
|
Tecnologia di compressione H.265+ efficiente H.265+ riduce la larghezza di banda e lo spazio di archiviazione richiesti per i video, mantenendo al contempo un'eccellente qualità delle immagini. Risparmia rispettivamente il 57,5% e il 15% di spazio di archiviazione in più rispetto a H.264 e H.265. |
|
|
Garanzia 3 anni Il seguente prodotto é coperto da garanzia 3 anni |
|
