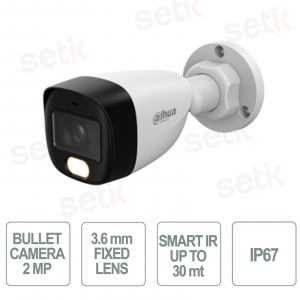

HAC-HFW1239C-IL-A-S3 | TELECAMERA 4IN1 BULLET OTTICA FISSA 3.6mm - SMART DUAL LIGHT - MICROFONO

La Dahua HAC-HFW1239C-IL-A-S3 è una bullet camera HDCVI da 2MP con ottica fissa e tecnologia Smart Dual Light, ideale per installazioni residenziali o commerciali. Grazie alla compatibilità multi-standard e alle funzioni intelligenti di illuminazione e regolazione automatica, assicura immagini a colori nitide anche di notte, riducendo l’inquinamento luminoso e migliorando la resa visiva.
Specifiche principali:
- Risoluzione: Sensore CMOS 2MP, Full HD 1080p a 30 fps per immagini nitide
- Ottica: Lente fissa 3.6 mm, F1.0, ampio campo visivo
- CVI/CVBS/AHD/TVI: Uscita video selezionabile via BNC, massima compatibilità
- Smart Dual Light: IR e luce bianca attivati in base alla presenza
- Smart Light+: Illuminazione mirata, senza riflessi in ambienti bui
- Smart Area Lighting: Regolazione luce automatica secondo la posizione del soggetto
Ulteriori dettagli

Scheda tecnica
MODEL | HAC-HFW1239C-IL-A-S3 |
Camera | |
Image Sensor | 2 MP CMOS |
Max. Resolution | 1920 (H) × 1080 (V) |
Scanning System | Progressive |
Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
Min. Illumination | 0.0005 lux@F1.0 (Color, 30 IRE) 0.00005 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio | ≥65 dB |
Illumination Distance | 30 m (98.43 ft) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 2 (Multi-core light) |
Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed-focal |
Lens Mount | M12 |
Focal Length | 3.6 mm |
Max. Aperture | F1.0 |
Field of View | H: 84.2°; V: 45.3°; D: 98.9° |
Iris Control | Fixed |
Close Focus Distance | 1.6 m (5.25 ft) |
Video | |
Video Frame Rate | CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
Day/Night | Auto (ICR); Color/B/W |
BLC | BLC; HLC; WDR |
WDR | 130 dB |
White Balance | Auto;Area white balance |
Gain Control | Manual/Auto |
Noise Reduction | 3D NR |
Motion Detection | Yes |
Illumination Mode | Smart IR&WL; WL Mode; IR Mode |
Mirror | Yes |
Privacy Masking | Off/On (8 areas, rectangle) |
Pick-up Distance | 8 m (26.25 ft) |
Certification | |
Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; |
Audio | |
Built-in Mic | Yes |
Port | |
Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
Power | |
Power Supply | 12 VDC ± 30% |
Power Consumption | Max 3.96 W (12 VDC, LED on) |
Environment | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | <95% (RH), non-condensing |
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | <95% (RH), non-condensing |
Protection | IP67 |
Anti-corrosion Level | Basic Protection |
Structure | |
Casing Material | Metal front cover + plastic rear barrel + metal bracket |
Product Dimensions | 198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.16" × 3.00") (L × W × H) |
Net Weight | 0.20 kg (0.44 lb) |
Gross Weight | 0.29 kg (0.64 lb) |
Installation | Wall mount; ceiling mount; vertical pole mount |
