IPC-HDBW3649E-S-IL - è una telecamera dome con ottica 2.8mm offre una risoluzione fino a 6MP, assicurando immagini nitide e dettagliate. Grazie all’intelligenza artificiale WizSense con algoritmi di deep learning, riconosce persone e veicoli riducendo i falsi allarmi e migliorando la sicurezza. L’illuminazione Smart Dual Light garantisce visione a colori anche di notte, mentre la tecnologia WDR 120dB ottimizza le immagini in condizioni di forte contrasto. Dotata di microfono integrato, consente la registrazione audio ambientale e, con protezione IP67 e IK10, resiste a polvere, acqua e urti. Una telecamera IP completa, affidabile e professionale per la videosorveglianza avanzata. Dahua
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

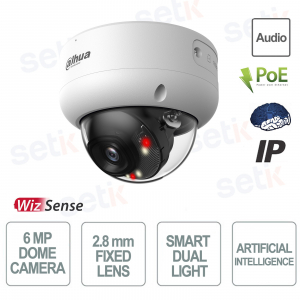

IPC-HDBW3649E-S-IL | TELECAMERA IP POE ONVIF® 6MP DOME - OTTICA 2.8MM - PROTEZIONE IP67 E IK10

La telecamera Dome Dahua IPC-HDBW3649E-S-IL con ottica 2.8mm e risoluzione fino a 6MP offre immagini nitide e dettagliate per una videosorveglianza professionale. Grazie all’intelligenza artificiale WizSense, è in grado di distinguere persone e veicoli riducendo i falsi allarmi e migliorando l’affidabilità. L’illuminazione Smart Dual Light assicura visione a colori anche di notte, mentre il WDR 120dB ottimizza le immagini in condizioni di forte contrasto. Il microfono integrato consente di registrare audio ambientale, arricchendo il livello di sicurezza. Inoltre, come network camera, supporta protocolli ONVIF/RTSP, PoE, storage su MicroSD fino a 512GB e gestione remota da app e software professionali, con protezione IP67 e IK10 contro acqua, polvere e atti vandalici
Specifiche principali:
- Risoluzione fino a 6MP con dettagli elevati
- Ottica fissa 2.8mm grandangolare (110° FOV)
- AI WizSense per analisi intelligente di persone e veicoli
- Audio con microfono integrato
- Network camera con supporto PoE, ONVIF e MicroSD
- Smart Dual Light e WDR 120dB per immagini perfette giorno/notte
Ulteriori dettagli
✅ Face Detection:

Scheda tecnica
IPC-HDBW3649E-S-IL | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.7" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
3288 (H) × 1850 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
256 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
1 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.005 lux@F1.4 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
﹥56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
Up to 30 m (98.43 ft) (IR) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto; Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
3 (IR LED); 4 (Warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan: 0°–355° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.8 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
H: 110°; V: 58°; D: 132° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
1.4 m (4.59 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) |
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD |
SMD 4.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AcuPick |
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI SSA |
Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection (Full Image) |
Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec |
Smart H.265+; Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
Main stream: 3288 × 1850@(1–25/30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability |
3 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
6M (3288 × 1850/3200 × 1800); 5M (2960 × 1688/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control |
VBR;CBR;ABR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
H.264: 3 kbps–16384 kbps; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto(ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Self-adaptation (SSA) |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto; Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) |
Yes (4 areas) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Illumination |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Dual Light |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
8 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LDC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in MIC |
Yes, built-in Mic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
PCM; G.711a; G.711Mu; G.726; G.723 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host |
20 (Total bandwidth: 64 M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
IE: IE11; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
Smart PSS Lite; DSS; DMSS; DoLynk Care |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security |
Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE-LVD: EN62368-1; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12 VDC/PoE (802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dual Power Backup |
When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Basic: 3.7 W (12 VDC); 4.6 W (PoE); |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
≤95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP67; IK10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

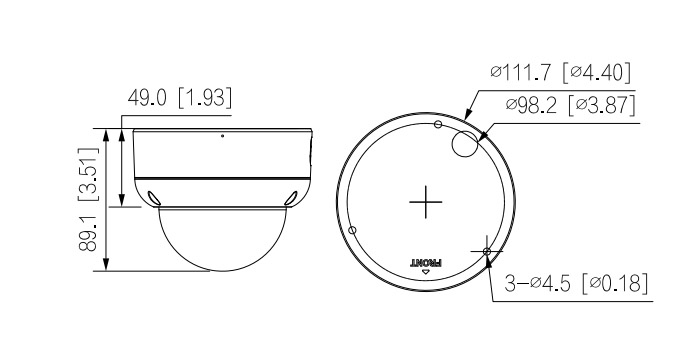

Product Dimensions |
89.1 mm × Φ111.7 mm (3.51" × Φ4.40") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
528 g (1.16 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
690 g (1.52 lb) |
