IPC-HDW1439T1-A-IL-S6 - è una telecamera da 4MP con ottica fissa da 2.8 mm offre immagini ad alta definizione anche in condizioni di scarsa luminosità grazie alla tecnologia Smart Dual Light con portata fino a 30 metri. Grazie al sensore CMOS da 1/2.9", al WDR a 120 dB e alla compressione Smart H.265+, garantisce video nitidi, fluidi e ottimizzati nello spazio di archiviazione. Le funzioni di rilevamento umano basate su AI aumentano l’affidabilità degli allarmi, filtrando i movimenti non rilevanti. on microfono integrato per l’audio bidirezionale, protezione IP67 contro polvere e acqua e alimentazione PoE, rappresenta una soluzione professionale ma accessibile per abitazioni, negozi e piccole imprese. Dahua
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

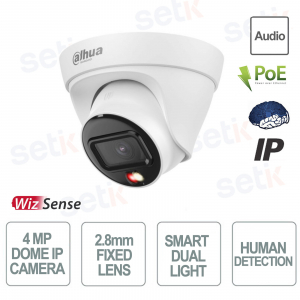

IPC-HDW1439T1-A-IL-S6 | TELECAMERA IP OTTICA FISSA 2.8mm - HUMAN DETECTION - SMART ILLUMINATION

La telecamera Dahua IPC-HDW1439T1-A-IL-S6 è un modello IP da 4MP con ottica fissa da 2.8 mm, progettata per offrire immagini ad alta definizione e massima affidabilità sia in ambienti interni che esterni. Grazie alla tecnologia Smart Dual Light garantisce visione notturna a colori fino a 30 metri, mentre l’algoritmo di Human Detection riduce i falsi allarmi filtrando i movimenti non umani. Con compressione Smart H.265+, microfono integrato e protezione IP67, rappresenta una soluzione sicura e conveniente per abitazioni, negozi e piccole imprese.
Specifiche principali:
- Risoluzione 4MP (2560×1440) fino a 30 fps
- Ottica fissa 2.8 mm con angolo di visione H: 94°
- Smart Dual Light: IR e luce calda fino a 30 m
- AI Human Detection per allarmi più accurati
- Compressione Smart H.265+/H.264+
- Audio integrato con microfono built-in
- IP67 per resistenza a polvere e acqua
Ulteriori dettagli
✅ Smart Dual Light:
✅ Network Camera:

Scheda tecnica
MODEL | IPC-HDW1439T1-A-IL-S6 |
Camera | |
Image Sensor | 1/2.9" CMOS |
Max. Resolution | 2560 (H) × 1440 (V) |
ROM | 16 MB |
RAM | 64 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
Min. Illumination | 0.06 lux@F1.6 (Color, 30 IRE) 0.006 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio | > 56 dB |
Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 1 (Multi-core (IR + warm) light) |
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed-focal |
Mount Type | M12 |
Focal Length | 2.8 mm |
Max. Aperture | F1.6 |
Field of View | H: 94°; V: 51°; D: 110° |
Iris Type | Fixed |
Close Focus Distance | 1.1 m (3.61 ft) |
Intelligence | |
Human Detection | Support the classification and accurate detection of human |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+/ Smart H.264+ |
Video Frame Rate | Main stream: 2560 × 1440@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
Streaming Capability | 2 stream |
Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR; VBR |
Video Bit Rate | H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps |
Day/Night | Auto(ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control | Manual/Auto |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest(RoI) | Yes (4 areas) |
Smart Illumination | Yes |
Smart Dual Light | Yes |
Image Rotation | 0°/180° |
Mirror | Yes |
Privacy Masking | 4 areas |
Audio | |
Built-in MIC | Yes, built-in Mic |
Audio Compression | G.711a; G.711Mu; PCM; G.726 |
Alarm | |
Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception; SMD (human) |
Network | |
Network | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; P2P RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
Interoperability | ONVIF (Profile S & Profile T); CGI |
User/Host | 6 (Total bandwidth: 24 M) |
Storage | FTP |
Browser | IE Chrome Firefox |
Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
Mobile Client | Android;iOS |
Cyber Security | Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;Generation and importing of X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade |
Certification | |
Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
Power | |
Power Supply | 12V DC/POE (802.3af) |
Power Consumption | Basic: 1.6 W (12 VDC), 2.0 W (PoE); Max. : 3.7 W (12 VDC), 4.7 W (PoE) (H.265 + intelligence on + WDR+ warm light intensity) |
Environment | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤95% (RH), non-condensing |
Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | ≤95% (RH), non-condensing |
Protection | IP67 |
Structure | |
Casing Material | Inner core: Metal + Plastic Cover: Plastic Decoration ring: Plastic Pedestal: Plastic |
Product Dimensions | 85.5 mm × Φ109 mm (3.37" × Φ4.29") |
Net Weight | 0.25 kg (0.55 lb) |
Gross Weight | 0.36 kg (0.79 lb) |
