IPC-HDW3449H-AS-PV-PRO | TELECAMERA IP 4MP OTTICA FISSA 2.8mm - PERIMETER PROTECTION -WIZCOLOR - TIOC PRO - BIANCA

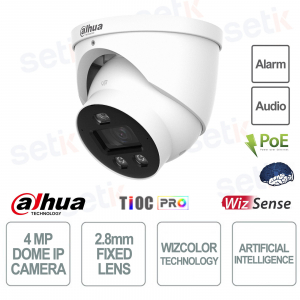

La Dahua IPC-HDW3449H-AS-PV-PRO è una telecamera IP WizSense da 4MP in colore bianco con ottica fissa da 2.8 mm, progettata per offrire immagini nitide e dettagliate in Full HD anche in condizioni di scarsa luminosità grazie alla tecnologia WizColor e allo Starlight avanzato. Dotata di funzioni AI come protezione perimetrale, SMD 4.0, rilevamento e riconoscimento facciale, riduce i falsi allarmi distinguendo con precisione persone e veicoli. Integra microfono e speaker per audio bidirezionale, sirena e luci rosse/blu per deterrenza attiva. Con compressione AI H.265, protezione IP67 e supporto PoE, rappresenta una soluzione completa e affidabile per impianti di videosorveglianza professionali e residenziali.
Specifiche principali:
- Ottica fissa 2.8 mm con campo visivo ampio (111° H)
- Risoluzione 4MP (2688×1520) @30fps con WDR 120dB
- Intelligenza artificiale con IVS, Face Detection e AcuPick
- SMD 4.0 per rilevamento smart di persone e veicoli
- Protezione perimetrale avanzata con algoritmi deep learning
- Audio bidirezionale con microfono e speaker integrati
- Tecnologia WizColor per immagini a colori vividi anche di notte
- Corpo bianco con certificazione IP67 per resistenza a polvere e acqua
Ulteriori dettagli
✅ Network Camera:

Scheda tecnica
MODEL | IPC-HDW3449H-AS-PV-PRO |
Camera | |
Image Sensor | 1/1.8" CMOS |
Max. Resolution | 2688 (H) × 1520 (V) |
ROM | 256 MB |
RAM | 1 G |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
Min. Illumination | 0.0005 Lux@F1.0 (Color, 30IRE) 0.0004 Lux@F1.0 (B/W, 30IRE) 0 lux (Illuminator on) |
S/N Ratio | > 56 dB |
Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 2 (Multi-core (IR + warm) light) |
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed-focal |
Mount Type | M16 |
Focal Length | 2.8 mm |
Max. Aperture | F1.0 |
Field of View | H: 112°; V: 60°; D: 134° |
Iris Type | Fixed |
Close Focus Distance | 2.0 m (6.56 ft) |
Intelligence | |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection. |
Face Detection(Full Image) | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
SMD | SMD 4.0 |
AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+/ Smart H.264+ |
AI Coding | AI H.265 (Compression rate ≥25%) AI H.264 (Compression rate ≥25%) |
Video Frame Rate | Main stream: 2688 × 1520@(1 fps–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
Streaming Capability | 3 stream |
Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR; VBR |
Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
Day/Night | Auto(ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
Scene Self-adaptation (SSA) | Yes |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Auto |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest(RoI) | Yes (4 areas) |
Smart Illumination | Yes |
Smart Dual Light | Yes |
Defog | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
Mirror | Yes |
Privacy Masking | 8 areas |
LDC | Yes |
Audio | |
Built-in MIC | Yes, built-in dual Mic |
Built-in Speaker | Yes, built-in speaker |
Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
Network | |
Network | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
Interoperability | ONVIF (Profile S & Profile G &Profile T); CGI |
User/Host | 20 (Total bandwidth: 64 M) |
Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
Browser | IE: IE11 Chrome Firefox |
Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
Mobile Client | Android;iOS |
Cyber Security | Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog; HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade |
Certification | |
Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
Port | |
Audio Input | 1 channel (RCA port) |
Audio Output | 1 channel (RCA port) |
Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
Power | |
Power Supply | 12V DC; POE |
Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
Power Consumption | Basic: 3.3 W (12 VDC); 4.5 W (PoE) Max.(H.265 + WDR+ warm light + siren and light active deterrence + intelligence on): 7.4 W (12 VDC); 8.7 W (PoE) |
Environment | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤95% |
Protection | IP67 |
Structure | |
Casing Material | Metal; |
Product Dimensions | Φ122.0 mm × 116.1 mm (4.80" × Φ4.57") |
Net Weight | 0.8 kg (1.76 lb) |
Gross Weight | 1.0 kg (2.20 lb) |
