IPC-HFW21249T-AS-IL - è una telecamera IP bullet con ottica da 2.8mm garantisce immagini ad altissima definizione grazie al sensore CMOS da 12MP e compressione H.265. Dotata di tecnologia Smart Dual Light, combina illuminazione IR e luce bianca fino a 30 metri, attivandosi solo al rilevamento per registrazioni a colori senza inquinamento luminoso. L’intelligenza artificiale avanzata supporta funzioni di protezione perimetrale, riconoscendo con precisione persone e veicoli, mentre il sistema SMD Plus riduce i falsi allarmi. La scocca con certificazione IP67 assicura resistenza ad acqua e polvere, il microfono integrato permette un controllo audio-video completo e l’alimentazione PoE semplifica l’installazione. Ideale per applicazioni residenziali e professionali che richiedono sicurezza affidabile e intelligente. Dahua
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

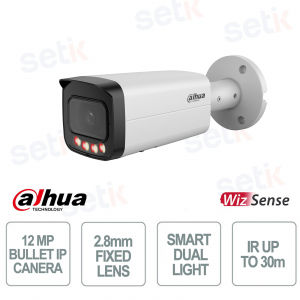

IPC-HFW21249T-AS-IL | TELECAMERA BULLET IP 12MP OTTICA FISSA 2.8mm - SMART DUAL LIGHT -PERIMETER PROTECTION - MICROFONO INTEGRATO

La telecamera di rete Dahua IPC-HFW21249T-AS-IL con ottica da 2.8mm offre immagini ad altissima definizione fino a 12MP, garantendo dettagli straordinari anche in condizioni di scarsa luminosità. Grazie alla tecnologia Smart Dual Light, alterna in modo intelligente IR e luce bianca fino a 30 metri, riducendo l’inquinamento luminoso e registrando a colori solo quando rileva attività. L’intelligenza artificiale avanzata con funzioni di SMD Plus e protezione perimetrale assicura rilevamenti accurati di persone e veicoli, mentre il microfono integrato permette un controllo audio-video completo. La certificazione IP67 e l’alimentazione PoE rendono questa network camera ideale per la sicurezza di ambienti residenziali e professionali.
Specifiche principali:
- Ottica fissa 2.8mm grandangolare
- Risoluzione fino a 12MP (4480 × 2512)
- Smart Dual Light con IR e luce bianca 30 m
- Intelligenza artificiale con SMD Plus e protezione perimetrale
- Microfono integrato per audio ambientale
- Network camera PoE con protezione IP67
Ulteriori dettagli
✅ Network Camera:

Scheda tecnica
Model | IPC-HFW21249T-AS-IL |
Camera | |
Image Sensor | 1/2.5" CMOS |
Max. Resolution | 4480 (H) × 2512 (V) |
ROM | 128 MB |
RAM | 256 MB |
Scanning System | Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination | 0.008 lux@F1.6 (Color, 30 IRE) 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 4 (Multi-core (IR + warm) light) |
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed-focal |
Lens Mount | M12 |
Focal Length | 2.8 mm |
Max. Aperture | F1.6 |
Field of View | H: 112°; V: 58°; D: 136° |
Iris Type | Fixed |
Close Focus Distance | 3.5 m (11.48 ft) |
Intelligence | |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
SMD | SMD Plus |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video | |
Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+; Smart H.264+ |
AI Coding | AI H.265; AI H.264 |
Video Frame Rate |
Main stream: 4480 × 2512@(1–15 fps)/3072 × 1728@(1–25/30 fps) |
Stream Capability |
2 streams |
Resolution | 12M (4480 × 2512); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control |
CBR/VBR |
Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
Day/Night | Auto (ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | DWDR |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Auto; manual |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest(RoI) | Yes (4 areas) |
Smart IR | Yes |
Defog | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 areas |
LDC | Yes |
Audio | |
Built-in MIC | Yes, built-in Mic |
Audio Compression | G.711a; G.711Mu; PCM; G.726 |
Alarm | |
Alarm | No SD card; SD card full; SD card error; network disconnecton; IP conflict; illegal access; moton detecton; video tampering; tripwire; intrusion; audio detecton; voltage detecton; SMD; security excepton; external alarm(Only - AS supports) |
Network | |
Ethernet | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration |
Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
User/Host | 20 (Total bandwidth: 48 M) |
Storage |
FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
Browser | IE; Chrome; Firefox |
Management Software | Smart PSS Lite; DSS; DMSS |
Smartphone | IOS; Android |
Cyber Security | Session security; WSSE; Account lockout; Trusted execution; Generation and importing of X.509 certification; 802.1x; Security logs; Digest; Security warning; IP/MAC filtering; HTTPS; Trusted upgrade; syslog; Trusted boot |
Certifications | |
Certifications |
CE-LVD: EN 62368-1; |
Port | |
Audio Input | 1 channel |
Audio Output | 1 channel |
Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
Power | |
Power Supply | 12 VDC (±30%); PoE (802.3af) |
Power Consumption |
Basic: 2.3 W (12 VDC); 3.0 W (PoE); |
Environment | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤95% (RH), non-condensing |
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | ≤95% (RH), non-condensing |
Ingress Protection | IP67 |
Structure | |
Casing | Metal |
Dimensions | 238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H) |
Net Weight | 0.72 kg (1.59 lb) |
Gross Weight | 0.97 kg (2.14 lb) |
