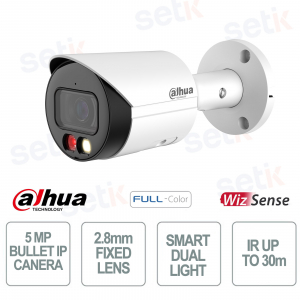

IPC-HFW2549S-S-ILL | TELECAMERA BULLET IP 5MP OTTICA FISSA 2.8mm - PERIMETER PROTECTION -FULLCOLOR

La telecamera di rete Dahua IPC-HFW2549S-S-IL con ottica fissa da 2.8mm offre una risoluzione fino a 5MP (2960×1668), garantendo immagini nitide e dettagliate grazie al sensore CMOS 1/2.7". La tecnologia Smart Dual Light combina illuminazione IR e luce calda fino a 30 metri, permettendo registrazioni a colori solo quando necessario. Le funzioni AI come SMD Plus e Perimeter Protection distinguono accuratamente persone e veicoli riducendo i falsi allarmi, mentre la modalità Full-color assicura video chiari anche in condizioni di scarsa luminosità. Con microfono integrato, supporto PoE e protezione IP67, questa network camera rappresenta una soluzione affidabile e versatile per sicurezza residenziale e professionale.
Specifiche principali:
- Ottica fissa 2.8mm grandangolare
- Risoluzione fino a 5MP (2960×1668)
- Smart Dual Light con IR e luce calda fino a 30 m
- Funzioni AI: SMD Plus e Perimeter Protection
- Tecnologia Full-color per immagini notturne a colori
- Microfono integrato e supporto scheda microSD fino a 256GB
- Network camera PoE con protezione IP67
Ulteriori dettagli
✅ Network Camera:

Scheda tecnica
MODEL | IPC-HFW2549S-S-IL |
Camera | |
Image Sensor | 1/2.7" CMOS |
Max. Resolution | 2960 (H) × 1668 (V) |
ROM | 128 MB |
RAM | 256 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
Min. Illumination | 0.007 Lux@F1.6(Color,30IRE) 0.0007 Lux@F1.6(B/W,30IRE) 0 lux (Illuminator on) |
S/N Ratio | > 56 dB |
Illumination Distance | 30 m (98.43 ft) (IR); 30 m (98.43 ft) (Warm light) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 1 (IR LED); 1(Warm light) |
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed-focal |
Mount Type | M12 |
Focal Length | 2.8mm |
Max. Aperture | F1.6 |
Field of View | H: 111°; V: 58°; D: 132° |
Iris Type | Fixed |
Close Focus Distance | 1.1 m (3.61 ft) |
Intelligence | |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human); |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+/ Smart H.264+ |
Video Frame Rate | Main stream: 2960 × 1668@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
Streaming Capability | 2 stream |
Resolution | 2960 × 1668 (2960 × 1668); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR; VBR |
Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
Day/Night | Auto(ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control | Manual/Auto |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest(RoI) | Yes (4 areas) |
Smart Illumination | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 areas |
Audio | |
Built-in MIC | Yes, built-in Mic |
Audio Compression | G.711a; G.711Mu; PCM; G.726 |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
Network | |
Network | RJ-45 (10/100 Base-T) |
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour |
Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
User/Host | 20 (Total bandwidth: 48 M) |
Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
Browser | IE Chrome Firefox |
Management Software | Smart PSS; DSS; DMS |
Mobile Client | Android;iOS |
Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; Generation and importing of X.509 certification |
Certification | |
Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
Power | |
Power Supply | 12 VDC; PoE (802.3af) |
Power Consumption | Basic: 2.2 W (12 VDC); 2.9 W (PoE); Max. (H.265+ max. resolution + max. stream+ WDR + warm light intensity + IVS): 4.6 W (12 VDC); 5.5 W (PoE) |
Environment | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤95% |
Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | ≤95% |
Protection | IP67 |
Structure | |
Casing Material | Metal |
Product Dimensions | 166.2 mm × 70 mm × 70 mm (6.54" × 2.76" × 2.76") (L × W × H) |
Net Weight | 0.47 kg (1.04 lb) |
Gross Weight | 0.59 kg (1.30 lb) |
