IPC-PTS2249B-E2-S-PV-LED-PRO - è una telecamera con doppio obiettivo fisso e tecnologia WizColor, progettata per garantire immagini a colori nitide anche in condizioni di scarsa illuminazione. Grazie ai sensori CMOS da 2MP e all’ottica fissa da 3.6mm, offre una risoluzione Full HD 1080p e supporta la compressione Smart H.265+, riducendo notevolmente banda e storage. L’illuminazione integrata fino a 30 metri e il sistema di deterrenza attiva con sirena e luce la rendono ideale per la protezione perimetrale. La classificazione intelligente di persone e veicoli riduce i falsi allarmi, mentre la protezione IP66 assicura resistenza agli agenti atmosferici, rendendola perfetta per applicazioni professionali di sicurezza interna ed esterna. Dahua
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

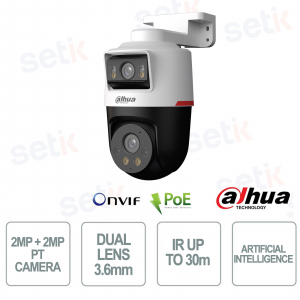

IPC-PTS2249B-E2-S-PV-LED-PRO | TELECAMERA DUAL LENS 3.6mm IP 2MP + 2MP - DETERRENZA ATTIVA - WIZ COLOR

La telecamera di sorveglianza Dahua IPC-PTS2249B-E2-S-PV-PRO con ottica fissa da 3.6mm unisce doppio obiettivo e tecnologia WizColor per immagini a colori nitide anche di notte, grazie a sensori CMOS da 2MP e illuminazione integrata fino a 30 metri. Con compressione Smart H.265+, riduce consumo di banda e storage garantendo qualità elevata. Il sistema di deterrenza attiva con sirena e luce, insieme alla protezione IP66, la rendono ideale per la sicurezza perimetrale sia in ambito residenziale che professionale.
Specifiche principali:
- Ottica fissa da 3.6mm con doppio obiettivo
- Risoluzione 2MP Full HD 1080p
- Illuminazione integrata fino a 30 m
- Smart H.265+ per risparmio banda e storage
- Funzioni AI: rilevamento persone e veicoli, riduzione falsi allarmi
- Protezione IP66 e tolleranza ampia di tensione
Ulteriori dettagli
✅ Tecnologia WizColor:

Scheda tecnica
MODEL | IPC-PTS2249B-E2-S-PV-LED-PRO |
Camera | |
Image Sensor | Channel 1 (PT Lens): 1/2.9" CMOS Channel 2 (Fixed Lens): 1/2.9" CMOS |
Max. Resolution | Channel 1 (PT Lens): 1920 (H) × 1080 (V) Channel 2 (Fixed Lens): 1920 (H) × 1080 (V) |
ROM | 128 MB |
RAM | 256 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
Min. Illumination | 0.0006 lux@F1.0 |
S/N Ratio | > 56 dB |
Illumination Distance | Up to 30 m (98.43 ft) (Warm light) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 4 (Warm light) |
Lens | |
Lens Type | Channel 1 (PT Lens): Fixed-focal Channel 2 (Fixed Lens): Fixed-focal |
Mount Type | M12 |
Focal Length | Channel 1 (PT Lens): 3.6 mm Channel 2 (Fixed Lens): 3.6 mm |
Max. Aperture | Channel 1 (PT Lens): F1.0 Channel 2 (Fixed Lens): F1.0 |
Field of View | Channel 1 (PT Lens): H: 81°; V: 44°; D: 95° Channel 2 (Fixed Lens): H: 81°; V: 44°; D: 95° |
Iris Type | Fixed |
Close Focus Distance | Channel 1 (PT Lens): 1.7 m (5.58 ft) Channel 2 (Fixed Lens): 1.7 m (5.58 ft) |
Intelligence | |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
SMD | SMD Plus |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+/ Smart H.264+ |
AI Coding | AI H.265, AI H.264 |
Video Frame Rate | Channel 1 (PT Lens): Main stream: 1920 × 1080@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Channel 2 (Fixed Lens): Main stream: 1920 × 1080@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
Streaming Capability | 2 stream |
Resolution | Channel 1 (PT Lens): 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Channel 2 (Fixed Lens): 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | VBR; CBR |
Video Bit Rate | H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps |
Day/Night | Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control | Auto/Manual |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest(RoI) | Yes (4 areas) |
Smart Illumination | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 areas |
LDC | Yes |
Audio | |
Built-in MIC | Yes, built-in Mic |
Built-in Speaker | Yes, built-in speaker |
Audio Compression | G.711a; G.711Mu; PCM; G.726 |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
Network | |
Network | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration |
Security | Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade; Session security; Security warning |
Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
User/Host | 20 (Total bandwidth: 48 M) |
Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
Browser | IE Chrome Firefox |
Management Software | Smart PSS Lite; DSS; DMSS |
Mobile Client | Android; iOS |
Function | |
Light Warning | Warm light warning Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low |
Sound Warning | Offers 3 sound alarms and supports importing custom sound alarms. Sound: 0–100. Play times can be set from 1 to 10. |
PTZ | |
Pan/Tilt Range | Channel 1 (PT Lens): Pan: 0° to 350°; Tilt: 0° to 90°; Channel 2 (Fixed Lens): Pan: 0° to 326°; Tilt: –10° to 15° |
Manual Control Speed | Pan: 0.1°/s–55.4°/s; Tilt: 0.1°/s–29.3°/s |
Preset | 300 |
Preset Speed | Pan: 55.4°/s; Tilt: 29.3°/s |
Tour | 8 (up to 32 presets per tour) |
Power-off Memory | Yes |
Idle Motion | Tour;Preset |
Certification | |
Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
Power | |
Power Supply | 12 VDC (±30%); PoE (802.3af) |
Power Consumption | Basic: 2.3 W (12 VDC); 3.1 W (PoE); Max.: 9.2 W (12 VDC); 10.5 W (PoE) (intelligence on + WDR + illuminator on + PT rotation + speaker on) |
Environment | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤95% (RH), non-condensing |
Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | ≤95% (RH), non-condensing |
Protection | IP66 |
Structure | |
Casing Material | Plastic |
Product Dimensions | 159.4 mm × 110.1 mm × 210 mm (6.28" × 4.33" × 8.27") (L × W × H) |
Net Weight | 0.62 kg (1.37 lb) |
Gross Weight | 0.87 kg (1.92 lb) |
