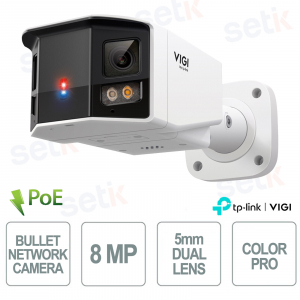

Telecamera IP 4K VIGI InSight S385DPS con doppia ottica 5mm 180°, AI persone/veicoli, Ultra Low Light, IR 50m, IP67 IK10 PoE
InSight S385DPS - è una network camera panoramica 4K progettata per il monitoraggio professionale di ambienti esterni, dotata di doppia ottica fissa 5 mm con apertura F1.0 e tecnologia dual-lens con visione panoramica 180° che unisce le immagini in un’unica vista ampia e dettagliata. Grazie al sensore dual CMOS 1/1.79”, alla visione notturna Ultra Low Light e ai LED IR e luce bianca fino a 50 m, garantisce immagini nitide anche in condizioni di scarsa illuminazione. Integra analisi intelligente di persone e veicoli con classificazione AI e funzioni di Smart Detection per rilevare intrusioni, attraversamenti linea e altri eventi. La presenza di luci di avvertimento rosse e blu Active Defense, audio bidirezionale, PoE, slot MicroSD fino a 512 GB e struttura IP67 IK10 antivandalo la rende ideale per sistemi di videosorveglianza professionali ad alta affidabilità. Vigi
InSight S485PI – TELECAMERA BULLET - DUAL LENS 5mm RISOLUZIONE 8MP - OUTDOOR

La telecamera di rete VIGI InSight S385DPS è una soluzione di videosorveglianza professionale con risoluzione panoramica fino a 5456×1520 e tecnologia dual-lens con visione 180°, progettata per monitorare ampie aree con un’unica installazione. Integra doppia ottica fissa 5 mm con apertura F1.0 e sensore dual CMOS 1/1.79”, offrendo immagini nitide anche in condizioni di Ultra Low Light. Grazie a LED IR e luce bianca fino a 50 m, WDR 120 dB e compressione H.265+, garantisce video chiari e ottimizzazione della banda. Include analisi intelligente AI di persone e veicoli, funzioni Smart Detection e luci di avvertimento rosse e blu Active Defense per un sistema di sicurezza più efficace. La struttura IP67 IK10, con PoE, audio bidirezionale e slot MicroSD fino a 512 GB, la rende ideale per installazioni professionali indoor e outdoor.
Caratteristiche principali:
- Doppia ottica fissa 5 mm F1.0 con visione panoramica 180°
- Risoluzione panoramica fino a 5456×1520
- Sensore dual CMOS 1/1.79” Ultra Low Light
- Visione notturna con IR e luce bianca fino a 50 m
- AI con classificazione persone e veicoli
- Smart Detection con rilevamento intrusioni e attraversamento linea
- Compressione video H.265+ e WDR 120 dB
- Audio bidirezionale con microfono e speaker integrati
- Slot MicroSD fino a 512 GB, PoE e protezione IP67 IK10
Ulteriori dettagli
La telecamera integra doppia ottica fissa da 5 mm con apertura F1.0 e tecnologia dual-lens panoramica 180°, che unisce le immagini dei due sensori in una vista continua senza interruzioni, consentendo di monitorare ampie aree con un’unica telecamera IP professionale e riducendo i punti ciechi nella videosorveglianza.
Grazie al sensore Dual CMOS 1/1.79” e alla risoluzione panoramica fino a 5456×1520, la telecamera garantisce immagini estremamente dettagliate e nitide, ideali per sistemi di videosorveglianza professionale 4K e per l’identificazione precisa di persone, veicoli e attività nelle aree monitorate.
Grazie alle funzioni di Human & Vehicle Classification e People & Vehicle Analytics, la telecamera identifica e distingue persone e veicoli tramite algoritmi di intelligenza artificiale, consentendo notifiche intelligenti e ricerche rapide negli eventi registrati.
La telecamera dispone di audio bidirezionale con microfono e speaker integrati, oltre a interfacce audio e ingressi/uscite di allarme, permettendo integrazione con sistemi di sicurezza e comunicazione in tempo reale.
SCHEDA TECNICA
| InSight S385DPS | |
| CAMERA | |
| Sensore di immagine | Dual 1/1.79” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Luminosità minima | Color: 0.005 Lux; 0 Lux with IR/white light |
| Meccanismo giorno/notte | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 5 mm |
| Aperture | Dual F1.0 |
| FOV | Horizontal FOV: 180°, Vertical FOV: 51°, Diagonal FOV: 180° |
| Lens Mount | M116 |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| ILLUMINATOR | |
| IR LED | Quantity: 2 Range: 164 ft (50 m)† Wavelength: 850nm |
| White LED | Quantity: 2 Range: 164 ft (50 m) |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| ILLUMINATOR | |
| Max. Resolution | 5456 × 1520 |
| Main Stream | Frame Rate: 50Hz: 25fps 60Hz: 24fps Resolution: 5456 × 1520, 4096×1152, 2160×608 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 25fps 60Hz: 24fps Resolution: 2160×608, 1280×360 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 1042 Kbps |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 4 Region |
| OSD Setting | Yes |
| AUDIO | |
| Comunicazione audio | Two-Way Audio |
| Ingresso audio | Built-in Microphone Audio In Interface |
| Uscita audio | Built-in Speaker Audio Out Interface |
| Codec audio | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Sicurezza | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALLARME E GESTIONE EVENTO | |
| Smart Event | Area Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Loitering Detection People Detection Vehicle Detection Abnormal Sound Detection Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception ( Illegal Login) Alarm Input Device |
| Alarm Linkage | Memory Card Video Recording Upload to FTP Server Alarm Output Device Push Notifications Send to Alarm Server Active Defence-Sound Alarm Active Defence-Light Alarm Email Alarm |
| Deep Learning Function | |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.3 |
| INTERFACCE | |
| Interfaccia di rete | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Allarme | 1 Alarm In, 1 Alarm Out Red-Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
| GENERALE | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Contenuto della confezione | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Metal |
| Net Weight | 1.12 Kg |
| Power Supply | 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 21 W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 10.5 × 4.6 × 3.5 in (266 × 116 × 90 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF |
