IPC-HDBW7859Z-Z-PV-X - La telecamera WizMind 8MP è una soluzione avanzata per la videosorveglianza professionale, equipaggiata con sensore CMOS 1/1.8” ad alta risoluzione 4K (3840×2160) che garantisce immagini estremamente dettagliate anche in condizioni di scarsa luminosità. L’ottica varifocale motorizzata 2.7-12 mm assicura massima flessibilità di installazione, mentre la tecnologia AI Xinghan con deep learning consente funzioni evolute come riconoscimento facciale, ANPR e protezione perimetrale. Il sistema Smart Dual Light con IR fino a 60 m e luce calda fino a 50 m offre visione notturna avanzata, supportata da AI-ISP e WDR 140 dB per immagini sempre nitide. Completano il dispositivo microfono e speaker integrati con allarme attivo, regolazione PTRZ motorizzata e protezione IP67 e IK10 ideale per ambienti esterni e applicazioni professionali. Dahua
SCEGLI PROFESSIONISTA

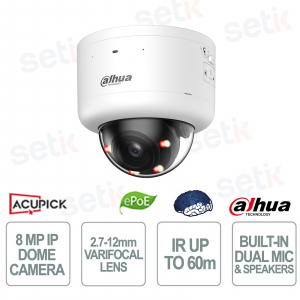

IPC-HDBW7859Z-Z-PV-X | TELECAMERA DOME IP 8MP OTTICA VARIFOCALE 2.7-12mm - INTELLIGENZA ARTIFICIALE - POE - ANTICORROSIONE
La telecamera Dahua, IPC-HDBW7859Z-Z-PV-X, WizMind 8MP Dome è una soluzione di videosorveglianza avanzata con sensore CMOS 1/1.8” da 8MP 4K, progettata per offrire immagini estremamente nitide anche in condizioni di bassa luminosità. L’ottica varifocale motorizzata 2.7-12 mm consente una regolazione precisa dell’inquadratura, mentre la tecnologia AI Xinghan con deep learning abilita funzioni evolute come riconoscimento facciale, ANPR e protezione perimetrale. Il sistema Smart Dual Light con IR fino a 60 m e luce calda fino a 50 m garantisce una visione notturna efficace, supportata da AI-ISP e WDR 140 dB per una qualità d’immagine superiore. Completano il dispositivo microfono e speaker integrati con allarme attivo, regolazione PTRZ motorizzata e protezione IP67 e IK10 per installazioni professionali anche in ambienti esterni.
Specifiche principali:
- Risoluzione 8MP 4K con sensore CMOS 1/1.8” per immagini ad altissima definizione
- Ottica varifocale motorizzata 2.7-12 mm per massima flessibilità di installazione
- Intelligenza artificiale Xinghan con Face Recognition, ANPR e Perimeter Protection
- Smart Dual Light (IR 60 m + luce calda 50 m) per visione notturna avanzata
- AI-ISP e WDR 140 dB per immagini sempre nitide e bilanciate
- Microfono duale e speaker integrati con audio bidirezionale
- Allarme attivo sonoro e luminoso per sicurezza immediata
- PTRZ motorizzato per installazione e configurazione semplificata
- Protezione IP67 e IK10 per resistenza ad acqua, polvere e atti vandalici
Ulteriori dettagli
✅ Ottica:
Equipaggiata con ottica varifocale motorizzata 2.7-12 mm, consente una regolazione dinamica dell’angolo di visione e una copertura flessibile, ideale per adattarsi a contesti di sicurezza sia interni che esterni.
✅ Risoluzione:
Il sensore CMOS 1/1.8” da 8MP 4K (3840×2160) garantisce immagini ad altissima definizione, elevata sensibilità alla luce e dettagli precisi anche in condizioni ambientali difficili.
✅ Xinghan Large-Scale AI Models-Vision:
La tecnologia Xinghan AI di nuova generazione integra modelli deep learning avanzati e NPU ad alte prestazioni, migliorando drasticamente riconoscimento, analisi e adattabilità della scena.
La tecnologia Xinghan AI di nuova generazione integra modelli deep learning avanzati e NPU ad alte prestazioni, migliorando drasticamente riconoscimento, analisi e adattabilità della scena.
✅ Anti-Glare Illuminator:
Il sistema di illuminazione avanzato riduce i riflessi grazie a tecnologie ottiche evolute, garantendo immagini più nitide e leggibili anche in presenza di luce intensa o condizioni meteo avverse.
Il sistema di illuminazione avanzato riduce i riflessi grazie a tecnologie ottiche evolute, garantendo immagini più nitide e leggibili anche in presenza di luce intensa o condizioni meteo avverse.
✅ Self-Learning:
Grazie al sistema auto-apprendente basato su intelligenza artificiale, la telecamera analizza i comportamenti e riduce i falsi allarmi, migliorando continuamente l’accuratezza del rilevamento.
Grazie al sistema auto-apprendente basato su intelligenza artificiale, la telecamera analizza i comportamenti e riduce i falsi allarmi, migliorando continuamente l’accuratezza del rilevamento.
✅ Intelligenza Artificiale:
Integra funzioni AI avanzate come Face Recognition, ANPR, Perimeter Protection, People Counting e PPE detection, offrendo un sistema completo di analisi intelligente per la sicurezza professionale.✅ Microfono & Speaker integrati:
Dotata di microfono duale con riduzione del rumore e speaker Hi-Fi integrato, permette audio bidirezionale chiaro fino a 30 metri, ideale per comunicazione e deterrenza attiva.✅ Allarme:
Supporta allarmi sonori e luminosi attivi, attivando automaticamente segnalazioni visive e acustiche per una protezione immediata e preventiva.
Supporta allarmi sonori e luminosi attivi, attivando automaticamente segnalazioni visive e acustiche per una protezione immediata e preventiva.
✅ Network Camera:
Progettata come telecamera IP professionale, supporta protocolli avanzati (IPv4, IPv6, RTSP, ONVIF, Cloud) per una perfetta integrazione in sistemi di sicurezza moderni.
✅ Funzioni:
Include numerose funzioni intelligenti avanzate come video metadata, AcuPick, gestione parcheggi, privacy protection e smart search, garantendo analisi dettagliata e gestione efficiente dei dati.
✅ Porte:
Dispone di interfacce complete (RJ-45, RS-485, ingressi/uscite allarme e audio) e supporto MicroSD fino a 1TB, offrendo massima connettività e possibilità di espansione del sistema.
Scheda tecnica
| MODEL | IPC-HDBW7859Z-Z-PV-X |
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0005 [email protected] (Color, 30 IRE) 0.0001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ16 |
| Focal Length | 2.7 mm–12 mm |
| Max. Aperture | F1.0 |
| Field of View |
H: 112°–48°; V: 58°–27°; D: 137°–56° |
| Iris Control | Auto |
| Iris Control Type | P-Iris |
| Close Focus Distance | 0.2 m (0.66 ft) |
| Smart Event | |
| IVS | Abandoned object; missing object |
| Intelligence | |
| Intelligence Notes | Dual intelligent functions can be enabled simultaneously: Face detection + people counting; face recognition + people counting; PPE detection + Perimeter Protection; PPE detection + face detection; PPE detection + face recognition |
| EPTZ | Yes |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human), loitering detection, people gathering, parking detection, stay detection, abandoned object, and missing object. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. Supports privacy protection. |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals, and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection(Full Image) | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting; supports privacy protection for faces |
| Face Recognition | There are two modes: General mode and counting mode. General mode: Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recogniton priority and optmization snapshot); face angle filter; optmization time setting. support privacy protection for faces. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures. Counting mode: Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces. |
| PPE Detection | Triggers alarms when the detected object matches or does not match all of the configured attributes (helmets, hats, uniforms, masks, gloves, shoe covers, shoes, safety vests, seatbelts, goggles, and aprons). Supports self-learning, it detects the different colors and styles of workwear. Supports privacy protection for faces/human bodies. |
| People Counting | Tripwire people counting and people counting in area; generating and exporting report (day/month/year); queue management and exporting report (day/month); 4 rules can be set for tripwire people counting, people counting in area, and queue management; supports privacy protection |
| Heat Map | Yes |
| ANPR | ANPR: ANPR, track, priority, snapshot. Vehicle atributes: License plate, vehicle type, vehicle color. Other atributes: Seat belt, smoking, calling. Support up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h. Supports privacy protection for vehicle bodies. |
| Parking Space Management | Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human detection; track; snapshot; snapshot optimization; optimal face snapshot upload Generates flow statistics for people, motor vehicles, and non-motor vehicles based on the direction, and exports reports Motor vehicle attributes: License plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, and calling Non-motor vehicle attributes: Type, color, number of people, top type and color, and hat Human body attributes: Top and bottom type and color, bag, hat, gender, and umbrella Supports privacy protection for faces, human bodies, and vehicle bodies |
| Privacy Protection | Mosaics and frosted glasses can be automatically placed over faces, human bodies and vehicle bodies protect their privacy |
| Smart Search | Yes |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Default: Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) High Frame Rate: Main stream: 3840 × 2160@(1–50/60 fps)/1920 × 1080@(1–100/120 fps) Sub stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 5 stream |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR; ABR |
| Video Bit Rate | H.264: 32 kbps–10,240 kbps H.265: 12 kbps–10,240 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Image Stabilization | Gyroscope Image Stabilization (GIS) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics + 8 color blocks (The color of every pure color block can be set as one, including red, orange, yellow, green, cyan, blue, purple and black.) |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker;Max power consumption: 2 W; max sound level at 10 cm: 110 dB * Test results from laboratory |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; SD card durability warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security error; parking space management; PPE detection; tampering detection |
| Network | |
| Network | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; DoLynk Cloud; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 340 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1 TB); NAS |
| Browser | IE: IE11 and later Chrome: Chrome 100 and later Firefox: Firefox 47.0.2 and later |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning;AES 256;TPM 2.0 (FIPS 140-2 level 2);SSL/TLS1.3 |
| Function | |
| Light Warning | Yes |
| Sound Warning | Yes |
| Heater (Window Heating) | Quickly removes water,ice,snow,and mist from the glass to keep images clear |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 3 channels in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Alarm Output | 2 channels out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC |
| Analog Output | 1 channel (CVBS output: BNC) |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%) & 24 VAC (±30%) independent power port; PoE+ (802.3at) |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 7.5 W (12 VDC); 8.87 W (24 VAC); 9.48 W (PoE); Max.: 19 W (12 VDC); 22.5 W (24 VAC); 23.8 W (PoE) (ICR switch + IR intensity); Heating: 2 W (12 VDC); 2.4 W (24 VAC); 2.6 W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +65 ℃ (–40 °F to +149 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10–95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Casing: Metal |
| Product Dimensions | 150 mm × Φ159 mm (5.91" × Φ6.26") |
| Net Weight | 1.4 kg (3.09 lb) |
| Gross Weight | 1.9 kg (4.19 lb) |
