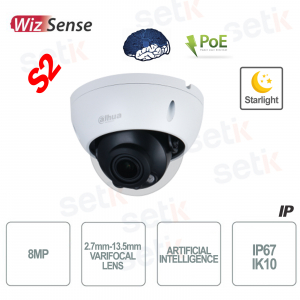

IPC-HDBW3841R-ZS-S2 - Telecamera da 8MP offre una qualità video Ultra HD e un’ottica motorizzata da 2.7–13.5 mm per un controllo flessibile dell’inquadratura. Dotata di tecnologia AI WizSense, rileva in modo intelligente persone e veicoli riducendo i falsi allarmi. Grazie alla visione notturna IR, protezione IP67 e scocca antivandalo IK10, è perfetta per ambienti interni ed esterni. Supporta alimentazione PoE per un’installazione semplice ed efficiente. Una scelta professionale per una videosorveglianza precisa, affidabile e intelligente. Dahua
Riferimento: IPC-HDBW3841R-ZS-S2
Marca: Dahua
EAN: 6923172542366
Disponibilità: 1
 SCEGLI PROFESSIONISTA
 SCEGLI PROFESSIONISTA
											FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>
IPC-HDBW3841R-ZS-S2 | TELECAMERA IP ONVIF DA ESTERNO - OTTICA VARIFOCALE 2.7-13.5mm 8MP CON INTELLIGENZA ARTIFICIALE

La telecamera IP Dahua IPC-HDBW3841R-ZS-S2 da 8MP è progettata per garantire una sorveglianza intelligente e affidabile, ideale per ambienti esterni e interni. Grazie alla tecnologia AI WizSense, offre funzioni avanzate di rilevamento con alta precisione, minimizzando i falsi allarmi. L’ottica motorizzata da 2.7–13.5 mm consente una regolazione rapida dell’angolo di visuale, mentre l’illuminazione IR e la protezione IP67 la rendono perfetta per qualsiasi condizione.
Specifiche principali:
- Ottica motorizzata 2.7–13.5 mm: zoom regolabile per una visione flessibile e dettagliata
- Risoluzione 8MP (4K): immagini ultra nitide per monitoraggio avanzato
- Tecnologia AI WizSense: rilevamento intelligente di persone e veicoli
- Illuminazione IR fino a 60 m: visione notturna ottimizzata anche in totale oscurità
- Protezione IP67 & IK10: resistente ad acqua, polvere e atti vandalici
- Funzione PoE: alimentazione e trasmissione dati semplificata con un solo cavo
- Analisi video avanzate: rilevamento intrusioni, attraversamento linea, e altro
Ulteriori dettagli
✅ Protezione IP67 & IK10:
✅ Alimentazione PoE (Power over Ethernet):

Scheda tecnica
| Model | IPC-HDBW3841R-ZS-S2 |
| Camera | |
| Image Sensor | 1/2.8” CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.007 lux@F1.5 (Color, 30 IRE) 0.0007 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 40 m (131.2 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 3 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Horizontal: 109°–30° Vertical: 56°–17° Diagonal: 131°–35° |
| Iris Type | Fixed |
| Close Focus Distance | 0.8 m (2.6 ft) |
| Intelligent | |
| IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
| AI SSA | Yes |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+ Smart H.264+ |
| AI Coding | AI H.265 AI H.264 |
| Video Frame Rate | Main stream: 3840 × 2160 @ (1–25/30) fps Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Slef-adaptation | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| AFSA | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Alarm | |
| Alarm | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE8; IE9; IE11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Smartphone | IOS; Android |
| Certifications | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 4 W (12 VDC); 4.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 9.2 W (12 VDC); 10.5 W (PoE) |
| Environment | |
| Operating Conditions | –30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH |
| Storage Conditions | –40 °C to +60 °C (–40 °F to 140 °F) |
| Ingress Protection | IP67; IK10 |
| Structure | |
| Casing | Metal |
| Dimensions | 94 mm × Φ122 mm (3.7" × Φ4.8") |
| Net Weight | 713 g (1.57 lb) |
| Gross Weight | 986 g (2.17lb) |
