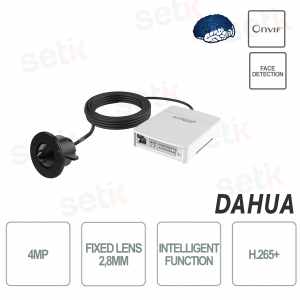

DAHUA - KIT OTTICA + MINI TELECAMERA - COVERT PINHOLE WIZMIND NETWORK CAMERA - 4MP - FUNZIONI INTELLIGENTI - ONVIF® - POE

Dettagli prodotto

- Covert Pinhole WizMind Network Camera 4MP
 - Kit ottica + mini telecamera
 - Triplo Stream
 - Comprensione video fino a H.265+
 - Day/Night(Elettronico) BLC / HLC / WDR120dB
 - Funzioni intelligenti: IVS, face detection, smart search
 - Motion detection
 - Audio: 1 entrata / 1 uscita
 - Allarme: 2 ingressi / 2 entrate
 - Onfiv - PoE
 - Corpo in metallo
 - Dimensioni: E1: 110 mm × 83 mm × 24 mm - L1: ?30.5 mm × 48.7 mm

Scheda tecnica
| Model | IPC-HUM8441-E1-L1 |
| Camera | |
| Image sensor | 1/2.7” CMOS |
| Max. Resolution | 2688 (H) × 1520(V) |
| RAM/ROM | 512MB/32MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 Lux@F2.0 (Color,30 IRE) 0.0005 Lux@F2.0 (B/W,30 IRE)  |
| S/N Ratio | ?56 dB |
| Lens | |
| Lens Type | Fixed-focal |
| Lens mount | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | 2.8 mm: F2.0 |
| Field of View | Horizontal: 101°; Vertical: 57°; Diagonal: 115°  |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attribute extraction including 6 attributes (gender, age, glasses, expressions, mask and beard) and 8 expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear); face snapshot set as face or one-inch photo; 3 snapshot strategies (real-time snapshot, optimization snapshot, and quality priority); face angle filter; optimization time setting |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+ Smart H.264+  |
| Video Frame Rate | Main stream: 2688 × 1520 @25/30 fps Sub stream: 704 × 576 @25 fps; 704 × 480 @30 fps Third stream: 1920 × 1080 @25/30 fps  |
| Stream Capability |
 3 streams  |
| Resolution |
 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536);1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)  |
| Bit Rate Control |
 CBR/VBR  |
| Video Bit Rate | H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps  |
| Day/Night |
 Color B/W  |
| BLC |
 Yes  |
| HLC |
 Yes  |
| WDR |
 120dB  |
| Scene Self-adaptation (SSA) |
 Yes  |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Manual; auto |
| Noise Reduction |
 3D NR  |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog |
 Yes  |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 1080p resolution and lower) |
| Mirror |
 Yes  |
| Privacy Masking |
 4 areas  |
| Audio | |
| Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, fast moving, missing object, abandoned object, parking detection, loitering detection, people gathering; scene changing, audio detection, voltage detection, external alarm, face detection , and security exception |
| Network | |
| Ethernet |
 RJ-45 (10/100Base-T)  |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS |
| Browser | IE: IE8, IE9, and IE11 Chrome Firefox  |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile client | IOS; Android |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Certification | |
| Certification | CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B  |
| Port | |
| Audio input | 1 channel (3.5 mm JACK port) |
| Audio output | 1 channel (3.5 mm JACK port) |
| Alarm imput | 2 channels in: 5 mA 3V–5V DC |
| Alarm output | 2 channels out: 1,000 mA 30V DC/500mA 50V DC |
| Power | |
| Power supply | 12V DC/PoE (802.3af) |
| Power consumption | Basic: 2.4W (12V DC); 3W (PoE) Max. (Intelligence + WDR): 3.9W (12V DC); 4.8W (PoE)  |
| Enviroment | |
| Operating Temperature | –40°C to +60°C (–40°F to 140°F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40°C to +60°C (–40°F to 140°F) |
| Structure | |
| Casing | Metal |
| Product Dimensions | E1: 110 mm × 83 mm × 24 mm (4.33" × 3.27" × 0.94") L1: ?30.5 mm × 48.7 mm (?1.20" × 1.92")  |
| Net Weight | 210 g (0.5 lb) |
| Gross Weight | 376 g (0.8 lb) |
Ulteriori dettagli
![]()  |
Onvif, lo standard in assoluto per le telecamere IP. Essere Onvif garantisce compatibilità con qualsiasi sistema di registrazione moderno. NON essere Onvif, significa avere una telecamera fine a se stessa che non potrà mai essere utilizzata insieme a sistemi di registrazione. |
![]()  |
Il Vantaggio di una telecamera PoE è evidente, permette di essere alimentata con lo stesso cavo con la quale si comunica senza portare ulteriori cavi d'alimentazione e senza dover installare un sistema di alimentazione separato, una telecamera PoE garantisce tensioni costanti ed installazione semplice |
![]()  |
 Questa telecamera presenta una risoluzione di 4 Megapixel  |
|

    |
 Smart H.265+ Smart H.265+ è l'implementazione ottimizzata del codec H.265 che utilizza una strategia di codifica adattiva alla scena, GOP dinamico, ROI dinamico, struttura di riferimento multi-frame flessibile e riduzione del rumore intelligente utile per fornire video di alta qualità senza affaticare la rete. Smart H.265+ riduce di molto il bit rate e i requisiti di archiviazione rispetto alla compressione H.265 standard

  |
![]()  |
 Main stream: 2688 × 1520 @25/30 fps  |
![]()  |
 FUNZIONI INTELLIGENTI Questa telecamera prevede funzioni intelligenti:



  |
![]()  |
 ULTRA WDR fino a 120dB WDR (Wide Dynamic Range): E' la soluzione professionale nei casi in cui si deve operare in condizioni di alto contrasto luce/ombra. Fondamentale in caso di riprese dall'interno verso l'esterno, targhe, punti in ombra o tutte le situazioni dove non è presente omogeneità di luce. ![]()  |
![]()  |
Day/Night: permette di adattare la lente alla visione notte/giorno, e la relativa gestione automatica dell'Illuminatore IR, quando presente.![]()  |
![]()  |
 BLC (Back Light Compensation): è uno dei 3 passaggi possibili nella gestione delle immagini con contrasto, situazioni tipiche sono: entrate o uscite da parcheggi, targhe, luci particolari, ingressi con riprese dall'interno verso l'esterno, ecc. La compensazione della luce è una delle operazioni più complesse possibili, la funzione BLC permette un discreto adattamento a queste situazioni ![]()  |
![]()  |
L'AGC è un amplificatore di segnale integrato che permette la visione anche in condizioni critiche. E' automatico e non richiede settaggi specifici. |
| Questo prodotto è coperto da Garanzia di 24 mesi. |
