SD52C432GB-HNR - Dahua Telecamera di sorveglianza per incasso a soffitto IP POE ONVIF - Risoluzione 4MP - Ottica varifocale 4.8-154mm 3x Zoom Ottico - Codec H.265+ - Sensore CMOS 1/2.8" STARVIS Starlight 4MP - Auto Tracking - Intelligenza artificiale - Audio - Allarme - WDR 120dB - HLC - BLC - Defog - AWB - AGC - 3DNR - Protezione antivandalica IK10 e TVS 6000V dai fulmini - Slot per schede MicroSD 512GB (non inclusa) - Alimnetazione 24 VDC/2.5 A ± 25% (include alimentatore) - Supporta PoE+.
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

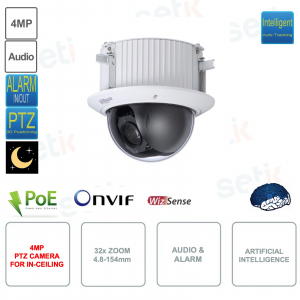

TELECAMERA DAHUA PTZ STARLIGHT - 4MP - ZOOM 32X 4.8-154MM - STARVIS CMOS - AUDIO - ALLARME - INTELLIGENZA ARTIFICIALE - PROTEZIONE IK10 - TVS6000V - SD52C432GB-HNR

Progettata per l'incasso a soffitto - Risoluzione 4MP 2560x1440p - Zoom 32x, ottica 4.8-154mm - CMOS 1/2.8" STARVIS™ CMOS Starlight - Codec H.165+ - Triplo Stream -
Day/Night - WDR 120dB - Auto Tracking - Defog - AWB - BLC - HLC - 2D/3DNR - ROI - Mirror - EIS - Audio 1in/1out RCA + Allarme 2in/1out - Slot MicroSD card 512GB (venduta separatamente) - Protezione IK10 da atti vandalici e contro i fulmini TVS 6kV - Garanzia 24 mesi del produttore.
Dettagli prodotto
- Telecamera PTZ Starlight con sensore CMOS Starvis e zoom ottico 32x (4.8-154mm) - SD52C432GB-HNR
 - IP POE ONVIF
 - Per incasso a soffitto
 - Risoluzione 4MP 2560x1440p
 - Sensore d'immagine CMOS 1/2.8" STARVIS a tecnologia Starlight!
 - Tecnologia Starlight: Visione notturna a colori
 - Intelligenza artificiale a bordo: Rilevamento del volto, Protezione del Perimetro, SMD, Quick Pick
 - Auto Tracking Intelligente
 - Codec Smart H.265+ per l'ottimizzazione dello spazio di archiviazione
 - PTZ: consente il movimento Pan (Orizzontale) / Tilt ( Verticale) / Zoom
 - Zoom 32x
 - Ottica 4.8-154mm varifocale
 - Zoom Digitale: 16x
 - Day/Night, BLC, HLC, Defog elettronico, AWB, BLC, HLC, 2D/3DNR
 - WDR (120db)
 - Allarme: 2 ingressi e 1 uscite di allarme
 - Audio: 1 ingresso e 1 uscita RCA
 - Porta RJ-45 10/100M
 - Protezione IK10 Vandal Proof
 - Protezione contro i fulmini (TVS 6000V)
 - Slot per schede MicroSD fino a 512GB (non inclusa)
 - Temperatura di esercizio delle funzioni: –30°C to +60°C
 - Dimensioni: 176.6 mm × Φ198.0 mm
 - Peso: 2.2Kg
 - Alimentatore incluso
 - Supporta PoE+
 - Alimentazione: 24 VDC/2.5 A ± 25%
 - Garanzia 24 mesi

Scheda tecnica
| SD52C432GB-HNR | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Camera  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Image Sensor  |
 1/2.8" CMOS  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Pixel  |
 4 MP  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Max. Resolution  |
 2560 (H) × 1440 (V)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 ROM  |
 4 GB  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 RAM  |
 1 GB  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Electronic Shutter Speed  |
 1/1 s–1/30,000 s  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Scanning System  |
 Progressive  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Min. Illumination  |
 Color: 0.005 lux@F1.6  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Lens  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Focal Length  |
 4.8 mm–154 mm  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Max. Aperture  |
 F1.6–F4.0  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Field of View  |
 H: 55.8°–2.3°  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Optical Zoom  |
 32×  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Focus Control  |
 Auto; semi-auto; manual  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Close Focus Distance  |
 0.1 m–1.5 m  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Iris Control  |
 Auto; manual  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 PTZ  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Pan/Tilt Range  |
 Tilt: 0° to +90°, auto flip 180 Pan: 0° to 360° endless  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Manual Control Speed  |
 Pan: 0.1°/s–350°/s; Tilt: 0.1°/s–250°/s  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Preset Speed  |
 Pan: 500°/s; Tilt: 500°/s  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Preset  |
 300  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Tour  |
 8 (up to 32 presets per tour)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Pattern  |
 5  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Scan  |
 5  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power-off Memory  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Idle Motion  |
 Pattern; Preset; Scan; Tour  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 PTZ Protocol  |
 DH-SD  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Intelligence  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 IVS (Perimeter Protection)  |
 Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Face Detection  |
 Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement; Supports attributes extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, scary, surprise, calm, happy and confused), mask, mustache; Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first.  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Auto Tracking  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 SMD  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Quick Pick  |
 With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Video  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Video Compression  |
 H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream1); Smart H.264+  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Streaming Capability  |
 3 streams  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Resolution  |
 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Video Frame Rate  |
 Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Bit Rate Control  |
 CBR/VBR  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Video Bit Rate  |
 H264: 96–14848 Kbps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Day/Night  |
 Auto (ICR)/Color/B/W  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 BLC  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 WDR  |
 120 dB  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 HLC  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 White Balance  |
 Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Gain Control  |
 Auto; manual  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Noise Reduction  |
 2D NR; 3D NR  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Motion Detection  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Region of Interest (RoI)  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Image Stabilization  |
 Electronic (EIS)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Defog  |
 Electronic  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Digital Zoom  |
 16×  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Image Rotation  |
 180°  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Privacy Masking  |
 Up to 24 areas can be set, with up to 8 areas in the same view  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 S/N Ratio  |
 ≥55 dB  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Compression  |
 PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Network  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Network Port  |
 RJ-45 (10/100 Base-T)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Network Protocol  |
 FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Interoperability  |
 CGI; SDK; ONVIF (Profile S&G&T); P2P  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Streaming Method  |
 Unicast/Multicast  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 User/Host  |
 20 (total bandwidth: 64 M)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Storage  |
 Micro SD card (512 GB); FTP/SFTP; NAS  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Browser  |
 IE 9 and later versions  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Management Software  |
 DSS Pro; DMSS  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Mobile Client  |
 iOS; Android  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Certification  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Certifications  |
 CE: EN55032/EN55024/EN50130-4  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Port  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Input  |
 1 channel (LINE IN, bare wire)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Output  |
 1 channel (LINE OUT,bare wire)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm Linkage  |
 Capture; recoding; send email; preset; tour; pattern; alarm digital output; audio  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm Event  |
 Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm I/O  |
 2/1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio I/O  |
 1/1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Supply  |
 24 VDC/2.5 A ± 25% (Included)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Consumption  |
 Basic: 13 W  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Environment  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Temperature  |
 –30 °C to +60 °C (–22 °F to +140 °F)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Humidity  |
 ≤ 95%  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Protection  |
 IK10; 6000V lightning proof; surge protection; voltage transient protection  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Structure  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Product Dimensions  |
 176.6 mm × Φ198.0 mm (6.95" × Φ7.80")  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Net Weight  |
 2.2 kg (4.85 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Gross Weight  |
 3.7 kg (8.16 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ulteriori dettagli
![]()  |
  |
||
![]()  |
 Tutte Onvif, lo standard in assoluto per le telecamere IP, essere Onvif garantisce compatibilità con qualsiasi sistema di registrazione moderno. NON essere Onvif, significa avere una telecamera fine a se stessa che non potrà mai essere utilizzata insieme a sistemi di registrazione
 Questa telecamera supporta Onvif  |
||
![]()  |
 Questa telecamera presenta una risoluzione di 4MP, 2560x1440p
  |
||
|


  |
 Sensore 1/2.8" CMOS STARVIS™ con tecnologia STARLIGHT. Bassa luminosità, visione a colori anche in modalità notte

 Con l'aggiunta della caratteristica STARVIS abbiamo notevoli vantaggi: - Struttura Retro-illuminata con 2.9 µm-square unit pixel - Alta sensibilità (due o più volte maggiore rispetto ad altri prodotti presenti sul mercato) - Sensibilità incrementata nelle vicinanze di una zona coperta da luce infrarosso - Supporta WDR (esposizione multipla WDR, DOL-WDR) - Interfaccia Versatile (CMOS parallel, basso voltaggio LVDS serial, MIPI CSI-2)
 Con il sensore CMOS della Sony è possibile avere riprese a colori anche in modalità notte. Normalmente, entrando in modalità notte, la visione da colori diventa bianco/nero.
 Con il SENSORE presente le riprese notturne saranno nitide e a colori
  |
||
![]()  |
Zoom Ottico 32x (4.8-154mm) + 16x Digital Zoom | ||
![]()  |
 Smart H.265+ Smart H.265+ è l'implementazione ottimizzata del codec H.265 che utilizza una strategia di codifica adattiva alla scena, GOP dinamico, ROI dinamico, struttura di riferimento multi-frame flessibile e riduzione del rumore intelligente utile per fornire video di alta qualità senza affaticare la rete. Smart H.265+ riduce di molto il bit rate e i requisiti di archiviazione rispetto alla compressione H.265 standard

  |
||
|
 AI | Intelligenza Artificiale
 - Protezione perimetro: Intrusione, Attraveramento linea (classificazione persone&veicoli) - Rilevamento del volto - Quick Pick - SMD 4.0  |
|||
|
 Questa telecamera prevede la funzione AUTO TRACKING.

  |
|||
![]()  |
 Supporta Posizionamento 3D Intelligente con protocollo DH-SD. Questo sistema permette oltre al movimento sull'asse della telecamera anche il posizionamento in termini di profondità, e lo stesso può essere memorizzato nell'ambito dei Preset  |
||
![]()  |
E' estremamente utile avere in un sistema TVCC anche Ingressi/Uscite per poter comandare relè o attivare una registrazione in seguito ad un evento Questa Telecamera a 2 Ingressi ed 1 Uscita allarme.  |
||
![]()  |
Questa telecamera presenta 1 ingressi Audio e 1 uscita audio RCA. | ||
![]()  |
 ULTRA WDR fino a 120dB WDR (Wide Dynamic Range): E' la soluzione professionale nei casi in cui si deve operare in condizioni di alto contrasto luce/ombra. Fondamentale in caso di riprese dall'interno verso l'esterno, targhe, punti in ombra o tutte le situazioni dove non è presente omogeneità di luce. ![]()  |
||
| DEFOG ELETTRONICO Permette di vedere nitidamente immagini riprese in condizioni climatiche particolari: pioggia, fumo e nebbia ![]()    |
|||
HLC (High Light Compensation) permette una maggior gestione della luce, in presenza di luce diretta (automobili, torcie, etc...). Previene inoltre i tentativi di offuscamento dell'immagine.![]()  |
|||
![]()  |
Day/Night: permette di adattare la lente alla visione notte/giorno, e la relativa gestione automatica dell'Illuminatore IR, quando presente.![]()  |
||
![]()  |
 IK10 è il massimo livello di protezione da danno diretto. Questo permette l'utilizzo della telecamera anche se sono presenti rischi di vandalismo

  |
||
  |
|||
| Questo prodotto è coperto da Garanzia di 24 mesi. |
