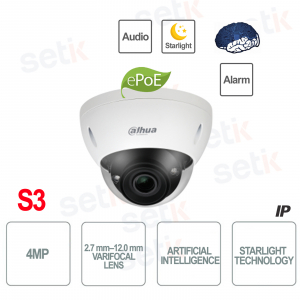

Telecamera AI IP ONVIF® PoE 4MP 2.7 mm–12.0 mm Audio Allarme - S3

Telecamera AI IP ONVIF® PoE 4MP 2.7 mm–12.0 mm Audio Allarme - S3
-57%

IPC-HDBW5442E-ZE-S3 - Telecamera dome IP da 4MP della serie WizMind, progettata per la sicurezza professionale con intelligenza artificiale avanzata e sensore CMOS 1/1.8” Starlight per immagini nitide anche al buio. Offre zoom motorizzato 2.7–13.5 mm, rilevamento facciale, protezione perimetrale, registrazione audio, compressione Smart H.265+ e PoE. La scocca è resistente a polvere, acqua e vandalismi (IP67 e IK10), rendendola ideale per ambienti ad alta criticità come banche, uffici e infrastrutture.

Scheda Tecnica



Riferimento: IPC-HDBW5442E-ZE-S3

Marca: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

L'azienda asiatica, nata nel 2001, deve la sua fama all'eccellente qualità dei propri prodotti in termini di prestazioni e capacità. La gamma di prodotti Dahua spazia dai classici sistemi TVCC fino a sistemi di sicurezza più complessi e articolati: non solo videosorveglianza dunque, ma anche controllo accessi, sistemi videocitofonici, prodotti per il rilevamento termico e molto altro ancora. Dahua è da anni un solido punto di riferimento sul mercato TVCC internazionale, grazie agli enormi investimenti dedicati ogni anno alla Ricerca e Sviluppo. Dal 2016 ad oggi Dahua ha registrato oltre 800 brevetti col proprio marchio. Attualmente Dahua può vantare di essere tra i primi 10 leader mondiali nel mondo della sicurezza. Quest'anno si è aggiudicato la 2° posizione nella classifica "2021 TOP SECURITY 50".

SERIE OEM: I prodotti a marchio Dahua venduti da Setik SRL possono eventualmente essere consegnati come prodotti OEM, ovvero prodotti che sono a tutti gli effetti originali Dahua, ma che presentano una veste estetica differente riservata al mercato online (generalmente per quanto riguarda logo e imballo). Ciò non incide in alcun modo sulla garanzia e sulle caratteristiche tecniche del prodotto, che è sempre autentico Dahua, nè tantomeno su eventuali aggiornamenti e funzionalità.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. è uno dei principali fornitori mondiali di soluzioni di videosorveglianza, con più di 13.000 dipendenti e 35 filiali attive in tutto il mondo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Prodotti Dahua: Telecamere, DVR, NVR – Prezzi e Offerte | Setik [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Catalogo Dahua completo per installatori, professionisti e utenti finali: DVR, NVR, telecamere IP, software DSS. Spedizione rapida, promo e sconti quantità [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 6 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
SCEGLI PROFESSIONISTA


FUORI TUTTO ×


  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

IPC-HDBW5442E-ZE-S3 | TELECAMERA IP ONVIF® EPOE DA ESTERNO - 4 MEGAPIXEL CON INTELLIGENZA ARTIFICIALE - VIDEO ANALISI


Dahua

La Dahua IPC-HDBW5442E-ZE-S3 è una telecamera dome IP da 4 megapixel appartenente alla serie WizMind S, progettata per applicazioni di sicurezza avanzate in ambito professionale. Dotata di sensore CMOS 1/1.8” ad alte prestazioni, garantisce immagini dettagliate anche in condizioni di scarsa illuminazione grazie alla tecnologia Starlight.

Integra funzioni AI avanzate come rilevamento volti, protezione perimetrale, rilevamento di oggetti abbandonati o rimossi, e offre zoom motorizzato 2.7–13.5 mm per una copertura flessibile delle aree sorvegliate. La compressione video Smart H.265+ ottimizza l’uso della banda e dello storage, mentre la protezione IP67 e IK10 assicura resistenza ad acqua, polvere e atti vandalici.
Questa telecamera è ideale per ambienti critici come banche, infrastrutture, aree pubbliche, uffici e magazzini, dove è necessario combinare alta qualità video e analisi intelligente.

Specifiche principali:

- Risoluzione 4MP (2688x1520) @ 25/30fps

- Sensore CMOS 1/1.8” con tecnologia Starlight per immagini chiare anche di notte

- AI avanzata: rilevamento facciale, classificazione di persone/veicoli, protezione perimetrale

- WDR 120 dB, 3D DNR, BLC e HLC per immagini ottimizzate in ogni condizione

- Smart Codec H.265+ / H.264+ per risparmio su banda e storage

- Microfono integrato per registrazione audio ambientale

- Alloggiamento per microSD fino a 256 GB

- Alimentazione PoE (802.3af)

- Grado di protezione IP67 (impermeabile/polvere) e IK10 (anti-vandalo)

Ulteriori dettagli

La Dahua IPC-HDBW5442E-ZE-S3 è una telecamera dome IP avanzata, ideale per applicazioni di videosorveglianza professionale dove sono richiesti dettaglio, intelligenza artificiale e flessibilità d'installazione. Appartenente alla serie WizMind, integra tecnologie intelligenti come Acupick per una ricerca rapida degli eventi e supporta lo standard ONVIF, garantendo ampia compatibilità.

✅ Risoluzione:

4MP (2688x1520) per immagini chiare e dettagliate.

Ottica varifocale:
Ottica varifocale motorizzata 2.7–12 mm con autofocus, ideale per adattare l’angolo di visione in base alla scena
✅ Tecnologia AI:
L'intelligenza artificiale (AI) si riferisce al ramo della scienza e dell'ingegneria che produce macchine intelligenti, in particolare programmi intelligenti per computer. Nel settore della sicurezza invece, l'intelligenza artificiale utilizzata è quella che permette di creare dispositivi avanzati, per l'analisi ambientale.

✅ PoE (Power over Ethernet):
Un solo cavo per alimentazione e rete, installazione semplice ed efficiente

Tecnologia WizMind:
Analisi video intelligente con rilevamento facciale, protezione perimetrale e
✅ Funzione AcuPick:
Ricerca intelligente e rapida degli eventi basata sull’intelligenza artificiale

Compatibilità ONVIF:
Integrazione semplice con NVR e software di terze parti

✅ MicroSD:
Supporta microSD fino a 256 GB, compressione video Smart H.265+, protezione IP67 (impermeabile) e IK10 (anti-vandalo)

Scheda tecnica

Model IPC-HDBW5442E-ZE-S3
Camera
Image Sensor 1/1.8” 4Megapixel progressive scan CMOS
Effective Pixel 2688 (H) x 1520 (V)
RAM/ROM 4 GB/1GB
Scanning System Progressive
Electronic Shutter speed Auto/Manual, 1/3 s–1/100000 s
Min. Illumination

0.0007 lux@F1.8 (Color, 30 IRE)
0.0004 lux@F1.8 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio >56 dB
IR Distance Distance up to 40 m (131 ft)
IR On/Off Control Auto; Zoomprio; Manual
IR LEDs 3 (IR LED)
Angle Adjustment Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7 mm–12.0 mm
Max. Aperture F1.8
Angle of View H: 115°–47°; V: 62°–27°; D: 137°–54°
Aperture Type Auto
Close Focus Distance 1.5 m (4.92 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Smart Object Detection Smart abandoned object; smart missing object
SMD SMD 3.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA Yes
Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting
People Counting Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map Yes
Video Metadata Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Smart Sound Detection Yes
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Streaming Capability 4 Streams
Resolution

4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps))
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Bit Rate Control CBR/VBR
Bit Rate

H.264: 32 Kbps–16384 kbps
H.265: 12 kbps–11008 kbps

Day/Night Auto (ICR) / Color / B/W
BLC  Yes
HLC Yes
WDR 140 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region Of interest Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart IR Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
Mirror Yes
Privacy Masking 8 areas
LDC Yes
Audio
Built-in MIC Yes
Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection
Network
Network Port RJ-45 (10/100 Enhancement Base-T)
SDK and API Yes
Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability ONVIF (Profile S/Profile G/Profile T); CGI
User/Host 20 (Total bandwidth: 80 M)
Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later
Management Software Smart PSS, DSS, DMSS
Smartphone iOS, Android
Cyber Security Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Certifications
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 2 channels in: wet contact, 5mA 3V–5V DC
Alarm Output 1 channel out: wet contact, 300mA 12V DC
Power
Power Supply 12 VDC/24 VAC/PoE (802.3af)/ePoE
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption

Basic: 3.6 W (12 VDC); 4.3 W (24 VAC); 5.4 W (PoE)
Max. (H.265+ WDR+ Intelligence on+IR on): 9.3 W (12 VDC); 11 W (24 VAC); 11.7 W (PoE)

Environmental
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity 10%–95% (RH), non-condensing
Protection IP67; IK10
Construction
Casing Metal + plastic
Dimensions Φ159.1 mm × 118.1 mm (6.26" × Φ4.65")
Net Weight 0.91 kg (2.01 lb)
Gross Weight 1.22 kg (2.69 lb)
Tutti i nostri prodotti sono conformi alla normativa CE vigente (leggi qui). Per richiedere la copia del certificato compila questo modulo
