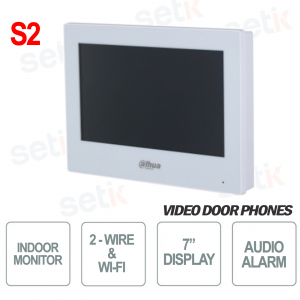

Monitor interno 2 Fili e WIFI VTH2123GW-W-S2 monitor SIP interno 7" TFT touch screen 1024X600, Compressione Audio G.711a, 6 ingressi + 1 uscita allarme, 1 Ingresso Audio, Speaker, WI-FI Frequenza IEEE802.11b; 802.11g; 802.11n, Visualizzazione telecamere IP e HDCVI dahua, montaggio a Superficie. Colore Bianco. Versione S2. Dahua
POSTAZIONE INTERNA 2-FILI/WIFI DAHUA MONITOR SIP 7" - AUDIO E ALLARME - VERSIONE S2 - COLORE BIANCO

Dettagli Prodotto:
![]()
|
Scheda tecnica
| Model | VTH2123GW-W-S2 |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux operating system |
| Network Protocol | UDP;TCP;IPv4;DNS |
| Basic | |
| Screen Type | Capacitive touchscreen |
| Display | 7" TFT |
| Screen Resolution | 1024 (H) × 600 (V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio with VTO (half–duplex);Two-way audio with app (full–duplex) |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 kHz; 16 bit |
| Function | |
| Leave Videos | Yes (SD card needed) |
| DND Mode | Do not disturb period can be set; Do not disturb mode |
| Number of Extensions | Villa: 4 Apartment: 2 |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b; 802.11g; 802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Storage | Micro SD card (up to 64 GB) |
| Port | |
| RS-485 | 1 |
| Alarm Input | 6 |
| Alarm Output | 1 channel |
| Power Output | 1 (12 V, 200 mA) |
| Door Bell | Yes (use any alarm input port) |
| Performance | |
| Casing | PC + ABS |
| General | |
| Appearance Color | White |
| Power Supply | 2-wire Controller |
| Power Adapter | Optional |
| Installation | Surface Mount |
| Certifications | CE |
| Accessory | Included: Power cord 485 and Power output ribbon cable alarm ribbon cable bracket branch terminal Sold separately: 2-wire controller |
| Dimensions | 134.6 mm × 189.6 mm × 24.0 mm (5.30" × 7.46" × 0.94") |
| Operating Temperature | –10°C to +55°C (+14°F to 131°F) |
| Operating Humidity | 10%–90% (RH) |
| Operating Altitude | 0 m–3000 m (0 ft–9842.52 ft) |
| Power Consumption | ≤ 4 W (standby), ≤ 10 W (working) |
| Gross Weight | 622 g (1.37 lb) |
| Storage Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Humidity | 30%–75% |
| Anti-corrosion Level | Basic Protection |
| Operating Environment | Indoor |
Ulteriori dettagli
![]() |
Display da 7" TFT Touch Screen 1024x600 |
| Audio bidirezionale (Ingresso Audio e Speaker integrati) | |
![]() |
6 Ingressi Allarme + 1 Uscita allarme |
| Questo prodotto è coperto da Garanzia di 24 mesi. |
