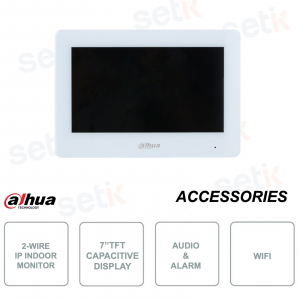

MONITOR IP - 7 POLLICI TFT - TOUCHSCREEN - 2 FILI O RJ45 - IP - AUDIO BIDIREZIONALE - SPEAKER - ALLARME - DAHUA - VTH5422HW-W

DESCRIZIONE:
La postazione Android VTH5422HW-W di Dahua, è una dei migliori Monitor da interno sul mercato.
Dotata di Display TFT Touch Screen Capacitivo da 7" 1024x600, Audio bidirezionale, Speaker e Soppressione dell'eco - Video H.265 - 6 Ingressi Allarme / 1 Uscita Allarme - Slot SD Card fino a 64GB (venduto separatamente).
Ideale per fissaggio a muro (staffa inclusa) - Campanello - RS485 - RJ45 Lan Ethernet 100M - Sistema Operativo Linux - Allarme SOS.
Colore Bianco.
Dettagli Prodotto:
- Postazione da interno IP Monitor 7 pollici TFT capacitivo touchscreen - Dahua - VTH5422HW-W
- Linux OS
- Embedded Processor
- Interfaccia 2-wire o RJ45
- Display 7" TFT touch screen capacitivo, 1024x600 (1MP)
- Numero di estensioni possibili: Villa: 3 - Appartamento: 2
- Compressione video H.264 e H.265
- Integrazione allarme, con 6 ingressi e 1 uscita
- Audio bidirezionale
- Altoparlante integrato
- Soppressione dell'eco
- Doorbell
- Sipporta modalità DND (Do Not Disturb)
- Interfaccia 1 RS485
- Slot SD Card (Max 64GB, si vende separatamente)
- Montaggio ad applicare su muro, con staffa inclusa
- Alimentazione: Switch a 2 fili (Distanza di trasmissione alla massima potenza 50 m)
- Temperatura d'eservizio: -10°C to +55°C
- Umidità relativa: 10%-95% RH (non-condensing)
- Altitudine: massimo 3000m
- Dimensioni: 189.0 mm × 130.0 mm × 26.9 mm
- Peso netto dell'articolo: 350g
- Prodotto di alta qualità
- Materiale: Policarbonato + ABS
- Colore: Bianco
- Garanzia 24 mesi
Scheda tecnica
| VTH5422HW-W | |
|
Technical Specs |
|
|
System |
|
|
Main Processor |
Embedded processor |
|
Operating System |
Embedded Linux operating system |
|
Network Protocol |
RTSP; RTP; SIP; DNS; SSH |
|
Basic |
|
|
Screen Type |
Capacitive touchscreen |
|
Display |
7" TFT |
|
Screen Resolution |
1024 × 600 |
|
Audio Compression |
G.711a; G.711Mu; G.711u; PCM |
|
Audio Input |
1 |
|
Audio Output |
Built-in speaker |
|
Audio Mode |
2-way Audio |
|
Audio Enhancement |
Echo suppression |
|
Audio Bit Rate |
16 kHz; 16 Bit |
|
Function |
|
|
Communication Mode |
Digital 2-wire |
|
Information Release |
Receive and view text information released by the management center |
|
Leave Videos |
Yes (insert an SD card into the indoor monitor) |
|
DND Mode |
Do not disturb period can be set; Do not disturb mode |
|
Number of Extensions |
Villa: 3 Apartment: 2 |
|
Wi-Fi |
Yes |
|
Wireless Standard |
IEEE802.11b/802.11g/802.11n |
|
Wireless Frequency Range |
2.4 GHz |
|
Wireless Security Encryption |
WPA/WPA2; WPA-PSK/WPA2-PSK |
|
Storage |
Micro SD card (up to 64 GB) |
|
Performance |
|
|
Casing |
PC + ABS |
|
Port |
|
|
RS-485 |
1 |
|
Alarm Input |
6 |
|
Alarm Output |
1 |
|
Power Output |
1 (12 V/200 mA) |
|
Door Bell |
Yes (use any alarm input port) |
|
Network |
One two-wire port and one 10 Mbps/100 Mbps Ethernet port (one of them can be selected) |
|
Alarm |
|
|
SOS |
Yes |
|
General |
|
|
Color |
White |
|
Power Supply |
48 VDC 1.25 A |
|
Installation |
Surface mount |
|
Certifications |
CE; FCC |
|
Accessory |
Bracket and alarm ribbon cable (included) |
| Dimensions |
189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06") |
| Operating Temperature | –10 °C to +55 °C (+14 °F to 131 °F) |
| Operating humidity | 10%-95% RH (non-condensing) |
| Operating Altitude | Beneath 3000 m (9842.52 ft) |
| Power Consumption | Standby ≤ 2 W; working ≤ 6 W |
| Net Weight | 0.35 kg (0.78 lb) |
| Gross Weight | 0.56 kg (1.23 lb) |
