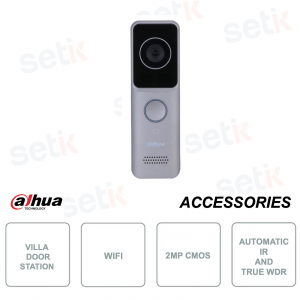

Stazione videocitofono WIFI IP PoE ONVIF® - Design Slim - CMOS 2MP - IR e Auto WDR - Lettore IC Card
Postazione videocitofono Onvif IP PoE - WIFI - Sensore CMOS 2MP - Illuminazione IR e auto WDR 120dB - tasti meccanici - Design ultraslim - in Policarbonato e ABS - Autenticazione tramite IC Card (fino a 3.000 memorizzabili) - Slot per MicroSD Card 256GB (non inclusa) - Colore grigio chiaro - Protezione IP65 - Dahua - VTO2311R-WP
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>
POSTAZIONE ESTERNA IN ALLUMINIO ANODIZZATO CON TELECAMERA E ILLUMINAZIONE - ALTOPARLANTE - VERSIONE S2 - DAHUA
DESCRIZIONE:
 La postazione esterna VTO2311R-WP di Dahua, è una delle migliori postazioni sul mercato
 Ideale per installazioni in Ville grazie al suo design curato ultra slim.
 Dotato di telecamera con sensore CMOS 2MP, 1/2.8", consente lo sblocco tramite lettore di IC Card e supporta lo standard di comunicazione WIFI
Dettagli Prodotto:

  |
Scheda tecnica
| VTO2311R-WP | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 System  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Main Processor  |
 Embedded Processor  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Button Type  |
 Mechanical  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Interoperability  |
 ONVIF®; CGI  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Network Protocol  |
 RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF®  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Basic  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Camera  |
 1/2.8" CMOS 2-MP HD camera  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Field of View  |
 H: 110°; V: 62°; D: 133°  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 WDR  |
 120 dB  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Noise Reduction  |
 3D NR; 2D NR  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Video Compression  |
 H.264; H.265  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Video Resolution  |
 Main stream: 720p, WVGA, D1, and CIF?  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Video Frame Rate  |
 PAL: 25 fps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Video Bit Rate  |
 768 kbps–8 Mbps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Light Compensation  |
 Auto IR  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Day/Night  |
 Auto (ICR)/Color/B/W; Color/B/W  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Compression  |
 G.711a; G.711u; PCM  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Input  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Output  |
 Built-in speaker  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Mode  |
 Two-way audio  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Enhancement  |
 Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Bit Rate  |
 16 kHz, 16 bit  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Function  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Communication Mode  |
 Full digital  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Unlock Mode  |
 Card; app; indoor monitor  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Card Type  |
 IC card  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Auto Snapshot  |
 Yes (SD card is inserted in the indoor monitor or door station)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Leave Videos  |
 Yes (SD card inserted in VTH/VTO is needed)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Web Configuration  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Wi-Fi  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Wireless Standard  |
 IEEE 802.11b; IEEE 802.11g; IEEE 802.11n  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Wireless Frequency Range  |
 2.4 GHz  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Storage  |
 Micro SD card (max. 256 GB)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Performance  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Card Reading Distance  |
 0 cm–3 cm (0"–1.18")  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Issue Card Locally  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Casing  |
 PC+ABS  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Capacity  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Card Capacity  |
 3000  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Port  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Exit Button  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Door Status Detection  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Lock Control  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Network Port  |
 1 × RJ-45 10/100 Mbps Ethernet port  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Tamper Alarm  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 General  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Appearance color  |
 Light grey  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Supply  |
 12–33 VDC, 1 A ; Standard PoE  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Adapter  |
 Optional  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Installation  |
 Surface Mount  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Certifications  |
 CE; FCC  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Accessory  |
 Included: Alarm power ribbon cable, rain cover  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

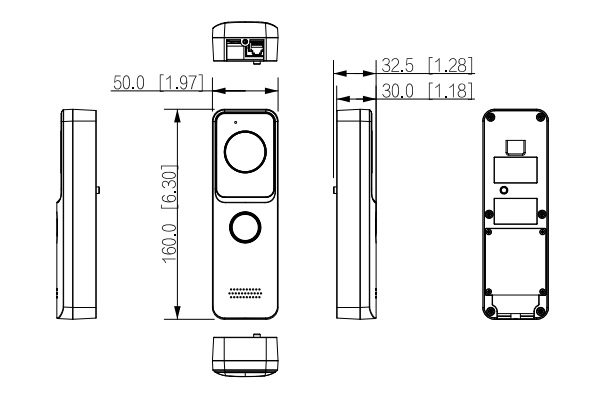

 Product Dimensions  |
 160 mm × 50 mm × 30 mm (6.30" × 1.97" × 1.18")  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Protection  |
 IP65  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Temperature  |
 –40 °C to +60 °C (–40 °F to +140 °F)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Humidity  |
 10%–90% (RH), non-condensing  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Altitude  |
 0 m–3,000 m (0 ft–9,842.51 ft)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Consumption  |
 ≤ 3.5 W (standby), ≤ 6 W (working)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Gross Weight  |
 0.4 kg (0.88 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Net Weight  |
 0.18 kg (0.40 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
