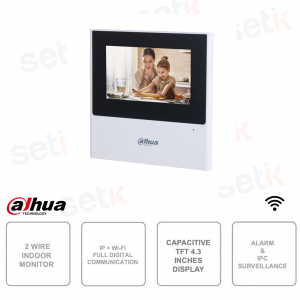

POSTAZIONE BIFILARE INTERNA IP/WIFI DAHUA MONITOR 4.3" A COLORI PER INTERNI - CAPACITIVO TOUCHSCREEN - RISOLUZIONE 480x272 - VTH2612L-W

Dettagli Prodotto:
|
Scheda tecnica
| VTH2612L-W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux OS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
UDP; TCP; IPv4; RTSP; SIP; RTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Type |
Capacitive Touchscreen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display Screen |
4.3" TFT display |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Resolution |
480 (H) × 272 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711a; G.711u; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
1 built-in speaker and 1 receiver speaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Mode |
Two-way audio |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Enhancement |
Echo suppression/digital noise reduction |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Bit Rate |
16 kHz, 16 Bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Mode |
Full digital |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Information Release |
Text messages can be received and viewed on the indoor monitor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Elevator Control |
You can control the elevator through the indoor monitor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DND Mode |
Do not disturb period can be set. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Number of Extensions |
Apartment: 4; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wi-Fi |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless Standard |
IEEE802.11b/802.11g/802.11n |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless Frequency Range |
2.4 GHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input |
4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
1 × two-wire port and 1 × 10 Mbps/100 Mbps Ethernet port (one of them can be selected) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SOS Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
White |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
48 VDC, 1A; two-wire switch (max power transmission distance: 50 m) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Adapter |
Optional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessory |
Surface mount bracket, alarm ribbon cable, and power-supply pins are provided |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
136.0 mm × 140.0 mm × 25.5 mm (5.35" × 5.51" × 1.00") (W × H × D) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤4 W (standby), ≤6 W (working) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.21 kg (0.46 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ulteriori dettagli
![]() |
Display a colori da 4.3" TFT Touch Screen 480x272 |
|
Supporta conversazioni bidirezionali |
|
![]() |
Visualizzazione telecamere IP Dahua |
![]() |
Connessione tramite porta LAN Ethernet RJ-45 (10M/100Mbps) |
| Audio bidirezionale (Ingresso Audio e Speaker integrati) | |
![]() |
4 Ingressi Allarme + 1 Uscita allarme |
| Questo prodotto è coperto da Garanzia di 24 mesi. |
