Monitor per interno IP PoE ONVIF - Dahua - VTH5422HB - Compatibile interfaccia a 2 fili o RJ45 Ethernet - Display TFT capacitivo touchscreen da 7 Pollici - 1024 × 600 pixels - Linux OS - Allarme 6 ingressi e 1 uscita - Gestione chiamate con singolo tap - Vetro 2.5D - Video Codec H.265/H.264 - Altoparlante - Audio 2-way - Soppressione eco - RS-485 - Slot MicroSD 64GB (non inclusa) - Campanello - Include staffa - 388g - Policarbonato + ABS - Colore Nero.
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

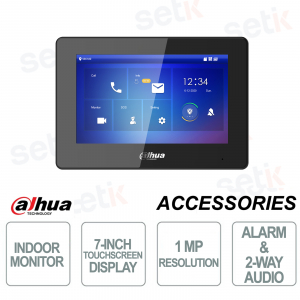

MONITOR IP POE ONVIF® - 7 POLLICI - 1MP TOUCHSCREEN - 2 FILI O RJ45 - IP POE ONVIF® - AUDIO BIDIREZIONALE - ALLARME - NERO - DAHUA - VTH5422HB

DESCRIZIONE:
 La postazione Android VTH5422HB(W) di Dahua, è una dei migliori Monitor da interno sul mercato.
 Dotata di Display TFT Touch Screen Capacitivo da 7" 1024x600, Audio bidirezionale, 6 Ingressi Allarme / 1 Uscita Allarme e Slot SD Card fino a 64GB (venduto separatamente).
 Montaggio a muro /staffa inclusa)
Prodotto di qualità. Protocollo PoE - Supporta ONVIF® - Connessione IP RJ45 supportata. Marca Dahua Security. Colore Nero.
Dettagli Prodotto:
- Postazione da interno IP PoE ONVIF® - Dahua - VTH5422HB
 - Linux OS
 - Embedded Processor
 - Interfaccia 2-wire o RJ45
 - Display 7" TFT touch screen capacitivo, 1024x600 1MP
 - Compressione video H.264 e H.265
 - Integrazione allarme, con 6 ingressi e 1 uscita
 - Audio bidirezionale
 - Altoparlante integrato
 - Supporto IP
 - Soppressione dell'eco
 - Doorbell
 - Supporta DaisyChain Topology
 - Interfaccia 1 RS485
 - Slot SD Card (Max 64GB, si vende separatamente)
 - Montaggio ad applicare su muro, con staffa inclusa
 - Alimentazione: Switch a 2 fili (Distanza di trasmissione alla massima potenza 50 m)
 - Compatibile ONVIF®
 - Protocollo PoE
 - Temperatura d'eservizio: -10°C to +55°C
 - Dimensioni: 189.0 mm × 130.0 mm × 26.9 mm
 - Peso netto dell'articolo: 388g
 - Prodotto di alta qualità
 - Materiale: Policarbonato + ABS
 - Colore Nero
 - Garanzia 24 mesi

Scheda tecnica
| VTH5422HB | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 System Specifications  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Main Processor  |
 Embedded processor  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating System  |
 Embedded Linux operating system  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Interoperability  |
 ONVIF®  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Network Protocol  |
 SIP; IPv4; RTSP; RTP; TCP; UDP  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Basic  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Screen Type  |
 Capacitive touch screen  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Display  |
 7" TFT  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Screen Resolution  |
 1024 × 600  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Compression  |
 G.711a; G.711Mu; G.711u; PCM  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Input  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Output  |
 Built-in speaker  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Mode  |
 Two-way audio  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Enhancement  |
 Echo suppression  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Audio Bit Rate  |
 16 KHz, 16Bit  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Function  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Communication Mode  |
 Full digital 2-wire  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Information Release  |
 Receive and view text information released by the management center (After SD card is installed, picture information can be received and viewed.)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Leave Videos  |
 Yes (insert an SD card into the indoor monitor)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 DND Mode  |
 DND period and DND mode can be set.  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Number of Extension  |
 Villa: 3; apartment: 3  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Storage  |
 Micro SD card (up to 64 GB)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Performance  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Casing  |
 PC + ABS  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Port  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 RS-485  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm Input  |
 6  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm Output  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Output  |
 1 (12V/100mA)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Door Bell  |
 Yes (use any alarm input port)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Network  |
 One two-wire port and one 10Mbps/100Mbps Ethernet port (one of them can be selected)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 General  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Color  |
 Black  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Supply  |
 Two-wire switch (max power transmission distance: 100 m); Standard PoE  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Adapter  |
 Not included  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Installation  |
 Surface mount  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Certifications  |
 CE; FCC; UL  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Accessory  |
 Bracket and alarm ribbon cable (included)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Dimensions  |
 189.0 mm × 130.0 mm × 26.9 mm  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Temperature  |
 -10°C to +55°C (+14°F to 131°F)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Humidity  |
 20% to 93% (non-condensing)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Altitude  |
 Beneath 3000 m (9842.52 ft)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Consumption  |
 Standby ≤ 2W; working ≤ 6W  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Net Weight  |
 388 g (0.86 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Gross Weight  |
 741 g (1.63 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
