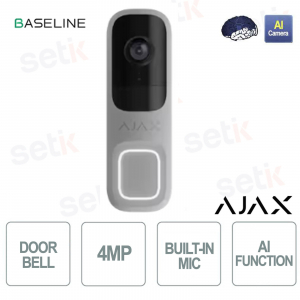

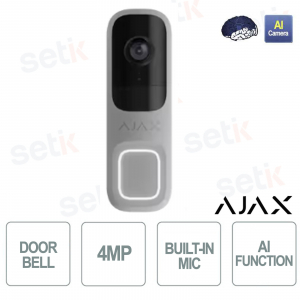

66393.125.GR1 #66393| Ajax DoorBell grigio è un videocitofono smart progettato per offrire sicurezza avanzata e controllo intelligente dell’ingresso. Integra una telecamera HDR grandangolare da 4 MP, un sensore PIR per il rilevamento del movimento e il riconoscimento oggetti basato su AI in grado di distinguere persone, animali e veicoli. Lo streaming video fluido con tecnologia JetSparrow e la visione notturna a infrarossi fino a 6 m assicurano immagini chiare in ogni condizione. La comunicazione Wi-Fi con canale di backup tramite hub Ajax garantisce continuità operativa anche in caso di perdita di rete. Completa il sistema l’audio bidirezionale con cancellazione del rumore e la batteria di backup integrata, per una protezione affidabile e sempre attiva. Ajax
Riferimento: 66393.125.GR1
Marca: Ajax Systems
EAN: 4823114066160
Disponibilità: 1
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
66393.125.GR1 | VIDEOCITOFONO CON IA INTEGRATA, SENSORE PIR E CONTROLLO TRAMITE APP

Ajax DoorBell, 66393.125.GR1, grigio è un videocitofono smart da esterno progettato per offrire sicurezza professionale e controllo intelligente dell’ingresso. Combina una telecamera HDR grandangolare da 4 MP, un sensore PIR per il rilevamento del movimento e il riconoscimento oggetti basato su AI capace di distinguere persone, animali e veicoli. Lo streaming video fluido con tecnologia JetSparrow e la visione notturna a infrarossi fino a 6 m garantiscono immagini chiare in ogni condizione. La comunicazione Wi-Fi con canale di backup tramite hub Ajax assicura continuità operativa anche in caso di perdita di rete, mentre l’audio bidirezionale con cancellazione del rumore consente un’interazione immediata e sicura con i visitatori.
Specifiche principali:
- Telecamera HDR da 4 MP con ampio angolo di visione
- Riconoscimento intelligente AI di persone, animali e veicoli
- Sensore PIR per rilevamento accurato del movimento
- Streaming video JetSparrow rapido e stabile
- Visione notturna a infrarossi fino a 6 metri
- Audio bidirezionale con cancellazione del rumore e batteria di backup integrata
Ulteriori dettagli
Scheda tecnica
66393.125.GR1 |
|
| Video stream | Camera 4 MP CMOS sensor Resolution up to 2688 × 1520 px Camera viewing angles horizontal: 115° vertical: 90° Video protocol JetSparrow Fast and encrypted peer-to-peer video protocol developed by Ajax Systems. Ajax Cloud (coming soon) NVR Video codec H.264 Dynamic range HDR Improves the accuracy of detail in bright and dark scenes. |
| Communication channel | Wi-Fi 802.11 b/g/n module 2.4 GHz, up to 2 Mbit/s for the channel 2K video Jeweller and Wings communication technologies Proprietary wireless communication technologies to transmit commands, alarms, events, and photo verifications. They serve as a backup communication channel when the device is added to the hub. |
| Key features | Two-way communication Clear and loud voice communication between users and the device. Motion detection The device detects movement using a built-in PIR sensor and software image frame analysis Object detection using AI
up to 6 m up to 20 ft Automatic adjustment of intensity in real time to avoid overexposure. This allows you to see objects that are far away or too close to the camera in low-light conditions Visual verification of Ajax alarms The system allows you to set up a scenario when Ajax detectors activate selected cameras to start recording. The result is immediately sent to the mobile or desktop monitoring app Microphone For two-way communication and sound recording at the site. Audio codec G722 Audio processing Always active noise suppression and echo cancellation |
| PIR detection | Sensitive elements 1 × PIR sensor Motion detection distance up to 4 m up to 13 ft Depends on the sensitivity level adjusted in the device settings Motion detection angle horizontal: 120° vertical: 100° Sensitivity 3 levels Adjusted by a PRO or a user with admin rights in Ajax apps |
| Installation recommendations | It is recommended to install the device at a height of 1.2–1.5 m. It is recommended to install the device at a height of 4–5 ft. The device is designed for indoor use only. It is not recommended to install the device in direct sunlight. This may cause overheating and damage to the device's electrical components. |
| Sabotage protection | Tamper alarm Notifications of attempts to remove the device from the mounting panel. Holding screw secures the device on the mounting bracket mTLS: Encrypted connection for data protection. Authentication: via Ajax Cloud Without local access rights Secure Boot: Protection against firmware spoofing. OTA signature verification: Secure automatic firmware update. Privacy Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop. Communication loss detection Wi-Fi: can be set from 30 s Jeweller/Wings: after 36 s Detection time depends on Ajax Cloud connection and Jeweller or Jeweller/Fibra settings |
| Power supply | Device power consumption 10 W Main DC voltage range 12–24 V⎓ Main AC voltage range 16–24 V~, 50/60 Hz Battery built-in rechargeable battery: Li-ion 600 mАh Intended to heat the device in a cold climate and provide a backup power supply for short periods |
| Enclosures |
Dimensions: |
| Colours | Grey |
| Complete set | DoorBell SmartBracket mounting panel Wedge bracket (2 pcs) BellKit (for connection to a wired chime) Installation kit Quick start guide |
| Warranty | 24 months |
