Dahua VTO6541H - Postazione esterna Multi Famigliare con telecamera integrata avente sensore 2Mp CMOS, Illuminazione con led bianco, Display LCD da 4,3", Lettore Tessere per Card IC e Tastierino per inserimento numero abitazione o password - Interfaccia RS-485 e Wiegand - 2x input + 2x output allarme - Grado IP65 - Dahua
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
Descrizione Dettagli Prodotto Scheda tecnica Ulteriori Dettagli Installazione Download

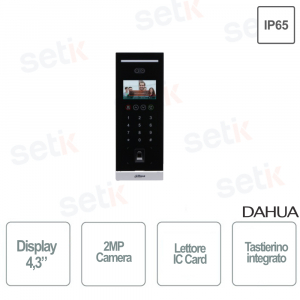

POSTAZIONE ESTERNA CONDOMINIALE CON TELECAMERA 2MP, DISPLAY 4,3" IPS TOUCH E LETTORE IC CARD - DAHUA
DESCRIZIONE:
La postazione esterna Condominiale VTO6541H di Dahua, è una delle migliori postazioni sul mercato
Ideale per installazioni in condomini o palazzi con più abitazioni.
Dotato di telecamera con sensore CMOS 2Mp, Display da 4,3" IPS touch e Lettore IC Card.
Il LED con luce bianca integrato nel dispositivo e i led IR permettono un riconoscimento semplificato del soggetto inquadrato.
Prodotto di qualità. Dahua Security
Dettagli Prodotto:
|
|
Scheda tecnica
| Model | VTO6541H |
| Main Processor | Embedded processor |
| Internet Protocol | SIP, P2P, IPv4, FTP, UPnP, DNS, DDNS, RTSP, RTP, TCP, UDP |
| Keyboard Type | Touch |
| Operative system | Linux |
| Rom | 4GB |
| Ram | 1GB |
| Basic | |
| Display | 4.3 inch IPS screen |
| Screen Type | Capacitive screen |
| Screen Resolution | 800×480 |
| Camera | 1/2.7" 2MP CMOS high definition, low illumination, white illuminator and IR illuminator |
| Angle of View | Horizontal: 87.42°; vertical: 46.48 °; diagonal: 104.13° |
| Focal Length | 4.0 mm, F1.6 |
| WDR | 120 db |
| Light Compensation | Auto white light Auto IR light |
| Noise reduction | 3D noise reduction |
| Video compression | H.264 |
| Video resolution | Main Stream: 720p, sub stream: 1080P |
| Frame rate | Main Stream (720P@25fps), sub stream (1080P@25fps) Main Stream (720P@30fps), sub stream (1080P@30fps) |
| Video bit rate | 256Kbps–2048Kbps |
| Day/Night | ICR auto switch |
| Audio Compression | G.711u |
| Audio imput | 1 |
| Audio output | Built-in speaker |
| Audio Mode | Full duplex communication |
| Audio Enhancement | Echo suppression and cancellation/digital noise reduction |
| Audio Bit Rate | 16KHz, 16Bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Card/Remote/Password/Fingerprint/Face unlock |
| Card Type | IC card |
| Motion Detection | Video motion detection |
| Auto Snapshot | Yes |
| Leave Videos or Text Messages | Yes |
| Web Configuration | Yes |
| Performance | |
| Card Reading Distance | 1cm–5cm |
| Issue Card Locally | Yes |
| Face Recognition Height Range | 1.1m–2.4m is recommended |
| Face Recognition Distance | 0.3m–2cm |
| Face Recognition Configuration | Recognition threshold Facial profile angle |
| Face Verification Accuracy | 99.5% |
| Face Recognition Time | 0,2s |
| Fingerprint Sensor Type | Capacitive |
| Casing Material | PC+ABS |
| Capacity | |
| Card Capacity | 10, 000 |
| Face Image Capacity | 10, 000 |
| Fingerprint Capacity | 10, 000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 (input or output, configurable) |
| Electric lock | 1 |
| Alarm Input | 2 (Digital quantity) |
| Alarm Output | 2 (Digital quantity) |
| Power Output Port | 1, 12V/100mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1, normally open by default |
| Ethernet | 1 RJ-45 10Mbps/100Mbps self-adaptive |
| Tamper | Yes |
| General | |
| Unlock Password Mode | User password/public password/duress password |
| Color | Silver |
| Power Supply Mode | DC 12V 2A |
| Power Adapter | Optional |
| Installation | Surface mount and Flush mount |
| Certification | CE/FCC |
| Accessory | Optional |
| Product Dimensions | 388.5 mm×145.5mm×43.5mm (15.30" ×5.73"×1.71") |
| Protection Grade | IP65 (silicone sealant is needed, see the quick start guide) |
| Working Temperature | -30°C to +60°C (-22°F to +140°F) |
| Working Humidity | 10%RH–90%RH (non-condensing) |
| Working Altitude | 86kPa–106kPa |
| Power Consumption | ≤5W (standby), ≤18W (working) |
| Net Weight | 1.0 kg (2.20 lb) |
| Gross Weight | 1.29 kg (2.84 lb) |
Ulteriori dettagli
![]() |
Telecamera integrata nel dispositivo. |
![]() |
Dispositivo equipaggiato di LED a luce bianca + IR per una migliore visione notturna. |
![]() ![]() |
Display LCD multilinea da 4,3" |
![]() ![]() |
1x Lettore per IC Card integrato per sblocco porta (Tessera non inclusa) |
![]() ![]() |
Tastierino meccanico numerico per inserimento interno abitazione o password per sblocco porta. |
|
|
Connessione tramite porta Comunicazione tramite RS485 o Wiegard |
![]() |
2 ingressi + 2 uscite allarme |
![]() |
Postazione adatta ad ambienti esterni grazie alla caratteristica Waterproof - IP65 |
![]() |
Fino a 10.000 carte, 10.000 volti e 10.000 impronte digitali |
|
|
Alimentazione 12V DC |
![]() |
Pannello realizzato completamente in PC+ABS . |
| Questo prodotto è coperto da Garanzia di 24 mesi. |
Installazione
Applicazione - Sistema videocitofonico TCP IP in Appartamento
