VTO4103FB - Hybrid two-wire modular outdoor station with integrated camera with 2MP CMOS sensor of 1/2.5" color fisheye camera and 160° viewing angle. Compatible with two-wire and RS-485 interface. 1 exit button, 2-way voice communication. Power supply 12 V 1 A; Po. IP65 and IK07. Dahua.
TOTALER AUSVERKAUF ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

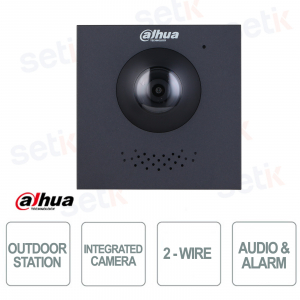

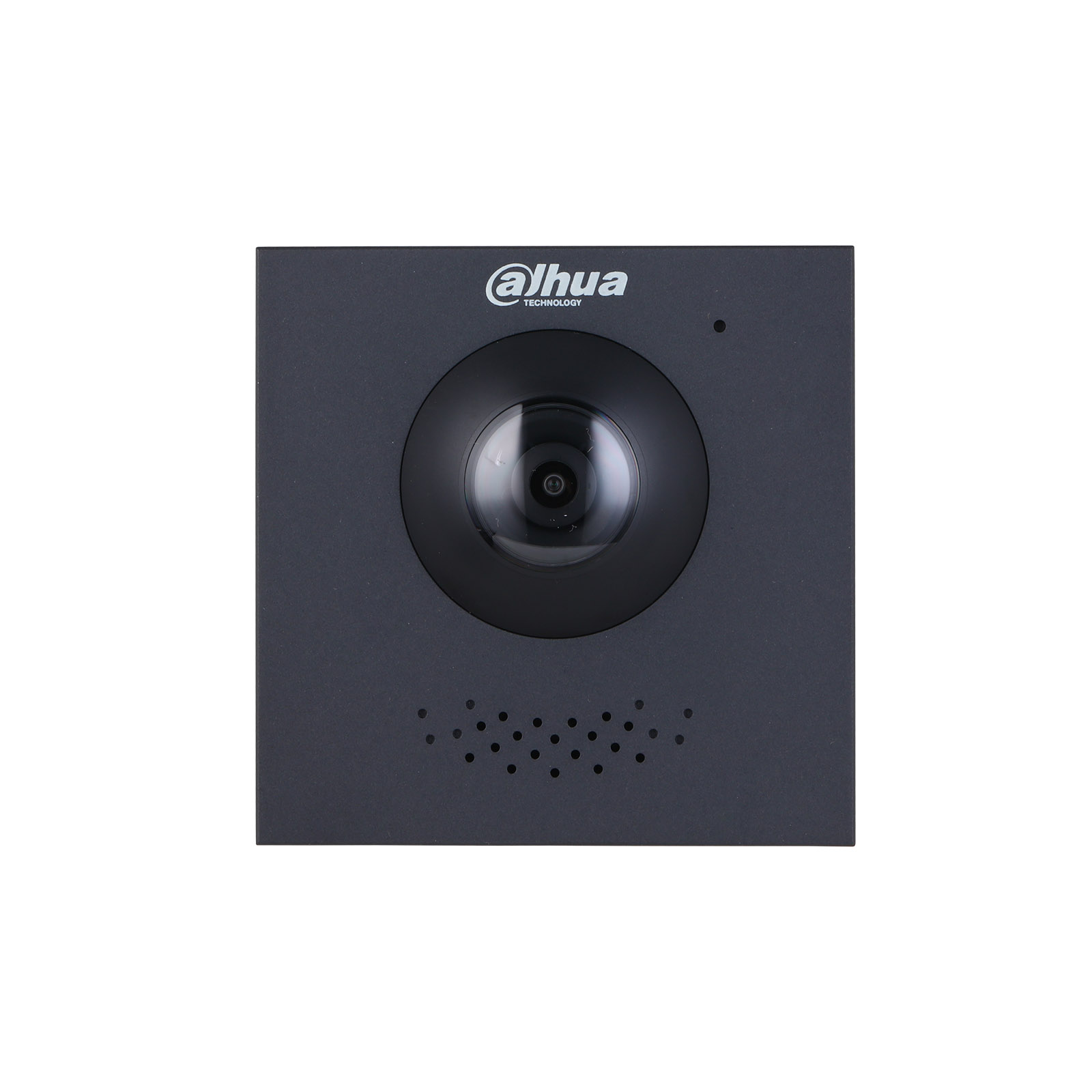

HYBRID STEEL OUTDOOR STATION WITH CAMERA - SPEAKER - DAHUA
DESCRIPTION:
The external station Dahua's VTO4103FB is one of the best stations on the market
Ideal for installations in villas thanks to its refined design.
Equipped with an adjustable camera with 2Mp CMOS sensor, it allows a viewing angle of approximately 160°.
Product Details:
![]()
|
Technical data sheet
Model | VTO4103FB |
System | |
Main Processor | Embedded processor |
Operating System | Embedded Linux Operation System |
Basic | |
Room | 1/2.5" 2 MP CMOS low illumination HD color fisheye camera |
Field of View | H: 168.6°; V: 87.1°; D: 176.7° |
WDR | 120dB |
Noise Reduction | 3D NR |
Video Resolution | P: 960 (H) × 576 (V) N: 960 (H) × 480 (V) |
Video Frame Rate | P: 25 fps N: 30fps |
Light Compensation | Auto IR |
Day/Night | Auto(ICR)/Color/B/W |
Audio Input | 1 channel |
Audio Output | Built-in speaker |
Audio Mode | Two-way audio (half-duplex) |
Audio Enhancement | Echo suppression/digital noise reduction |
Function | |
Communication Mode | Analog |
Unlock Mode | IC card, ID card, password, fingerprint, and remote unlock (A sub-module must be connected to the main module for the first 4 methods) |
Leave Videos | Yes (SD card inserted in VTH is needed) |
Performance | |
Casing Material | Aluminum alloy |
Port | |
RS-485 | 1 |
AlarmOutput | 1 channel |
Power Output | 1 channel, 12V, 1A |
Exit Button | 1 channel |
Door Status Detection | 1 channel |
Lock Control | 1 channel |
Alarm | |
Tamper Alarm | Yes |
General | |
Appearance color | Silver, black |
Power Supply | 2-wire controller |
Installation | Flush Mount; Surface Mount |
Certifications | THERE IS |
Accessories | Surface mount box (optional), flush mount box (optional), panel (optional) |

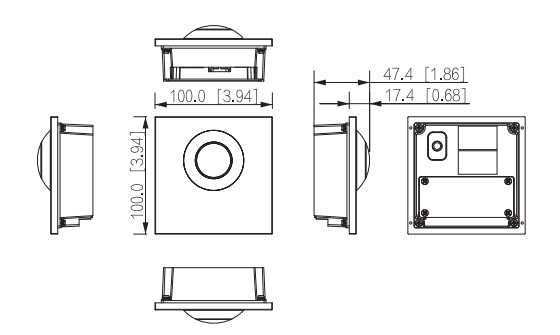

Product Dimensions | 100 mm × 100 mm × 47.4 mm (3.94" × 3.94" × 1.87") |
Protection | IK07; IP65 |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140°F) |
Operating Humidity | 10%–90% |
Operating Environment | Outdoor |
Operating Altitude | 0 m–3000 m (0 ft–9,842.52 ft) |
Power Consumption | ≤4W (standby), ≤12W (working) |
Gross Weight | 444.5g (0.98lb) |
Further details

![]() |
Camera built into the device. 2Mp CMOS image sensor |
![]() |
1 Alarm Output |
![]() |
Possibility of integration into a VOIP system , as if it were a common VoIP line. It is possible to answer from any internal VoIP station. |
![]() |
Station suitable for outdoor environments thanks to the Waterproof feature |
![]() |
Vandal-resistant all-steel panel |
|
Power supply 12Vdc |
![]() |
This product is covered by a 24 month warranty. |
