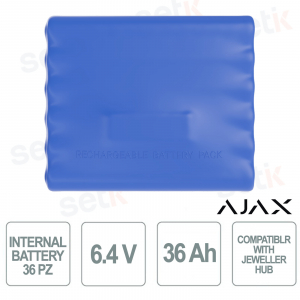

Internal Battery RB 6.4V 36Ah: Long Life Battery for BP Jeweler Hub

Internal Battery RB 6.4V 36Ah: Long Life Battery for BP Jeweler Hub

 
BEST SELLER Neu

132037.349.NC # 132037 | Internal Battery RB (6.4V/36Ah) is a high-energy density rechargeable power solution designed to ensure stable and long-lasting operation of the BP Jeweller Hub even in off-grid sites. Thanks to LiFePO4 18650 technology, it maintains a constant voltage from 100% to 1% charge and offers up to 8 months of autonomy in Battery Saver mode, ensuring operational continuity in any conditions. The battery has an extremely low self-discharge rate (≤1% per year) and can be stored for up to 10 years without losing performance. The compact and lightweight design facilitates installation in the hub casing, while the robust construction ensures reliability even in demanding environments. Ideal for remote installations that require long life and zero maintenance. Ajax

Technical Data Sheet

Artikel-Nr.: 132037.349.NC

Marke: Ajax Systems

EAN: 4823114078217

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

132037.349.NC | BP Jeweler Hub Mountable LiFePO4 18650 Battery Pack - 6.4V/36Ah


Ajax

The Internal Battery RB (6.4V/36Ah), 132037.349.NC, is a high-energy density rechargeable battery designed to ensure stable and long-lasting performance for the BP Jeweler Hub , ideal for off-grid installations that require maintenance-free operation. Thanks to LiFePO4 18650 technology, it offers a constant voltage from 100% to 1% charge, a battery life of up to 8 months in Battery Saver mode, and an exceptional self-discharge rate of ≤1% per year, ensuring reliability even after long periods of inactivity. With a useful life of up to 10 years of storage and a compact design, it installs easily in the hub casing and guarantees safe operation even in challenging environmental conditions. A solution that combines durability, stability, and maximum energy efficiency.

Main specifications:

- Non-rechargeable 18650 LiFePO4 technology with high energy density

- Battery life up to 8 months in Battery Saver mode and 1 month in full-function mode

- Stable voltage regardless of charge level

- Easy installation in the Hub BP Jeweler casing

- Reliable operation from 0°C to +45°C with humidity up to 35% to 85%

Further details

✅ Battery type :
 The Internal Battery RB (6.4V) is a rechargeable LiFePO4 18650 battery , designed to ensure high energy density and extremely stable operation over time. Thanks to its constant voltage from 100% to 1% charge and a self-discharge rate of less than 1% per year, it ensures reliable performance for months or years in off-grid installations. Its technology makes it ideal for applications that require maintenance-free operation, also offering a shelf life of up to 10 years without significant loss of efficiency.
✅ Power supply:
This battery provides a continuous 6.4 V power supply and up to 36 Ah capacity , allowing the BP Jeweller Hub to operate in Battery Saver mode for up to 8 months. Its electrical stability and predictable behavior even in variable environmental conditions (from −20 °C to +45 °C) ensure reliable power supply in remote sites, ensuring constant operation of the security system without risk of interruptions. It is designed to support loads up to 3000 mA, making it a robust and efficient solution for prolonged power supplies.

Technical data sheet

121874.313.NC
Battery type
Batteries 36 × IFR18650
Rechargeable lithium iron phosphate (LiFePO4) battery cells.
Battery configuration 2S18P
Nominal voltage 6.4 V⎓
Capacity 36 Ah
Power supply
Maximum load current 3000 mA
End-of-life battery voltage 4.5 V⎓
Battery type
Charge temperature range from 0 °C to +45 °C
from 32 °F to 113 °F
Charge relative humidity 60 ±25%
Discharge temperature range from −25 °C to +65 °C
from −13 °F to 149 °F
Discharge relative humidity 60 ±25%
Storage conditions
Storage temperature range from −20 °C to +45 °C
from −4 °F to 113 °F
Storage humidity 60 ±25%
Transportation and shipment
Shipment voltage 6.0–6.4 V⎓
Transportation requirements For air transportation, lithium batteries must be charged to no more than 30% of their rated capacity. The shipment voltage complies with this requirement.
For other types of transportation, the battery must be transported in accordance with applicable regulations and carrier requirements.
Cautions Do not expose the battery to open flames, sparks, or any other ignition source.
Do not short the power terminals.
Do not disassemble or deform the battery.
Avoid excessive mechanical impact or vibration.
Use the battery with compatible devices only.
Hub BP Jeweler does not charge this battery.
The battery must be installed fully charged.
Enclosure
Dimensions 133 × 120 × 51 mm
5.24″ × 4.72″ × 2.01″
Weight 1.52 kg
3.34 lb
Battery connector type Molex 2139-2 or similar
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity from 35% to 85%
Complete set Internal battery RB (6.4V/36Ah)
Cable adapter for charging the battery
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
