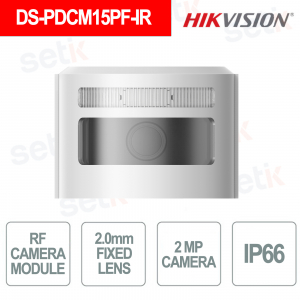

Hikvision IP66 camera module with 15m infrared and CMOS sensor for outdoor alarm video verification

Hikvision IP66 camera module with 15m infrared and CMOS sensor for outdoor alarm video verification

 
BEST PRICE -35%

DS-PDCM15PF-IR - The camera module is the ideal solution for integrated video surveillance with outdoor detectors, designed to offer real-time visual alarm verification with clear images both day and night. Equipped with a 1/2.7" Progressive Scan CMOS sensor and a 2.0 mm fixed lens , it guarantees a wide viewing angle and reliable performance in any context. 3D Digital Noise Reduction technology improves image quality by reducing digital noise, while infrared illumination up to 15 m ensures visibility even in the dark. The IP66 protected structure makes it perfect for outdoor installations resistant to weather elements. The easy installation with adjustable angle completes the profile, ideal for perfectly adapting to compatible sensors. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-PDCM15PF-IR

Marke: Hikvision

EAN: 6931847146788

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

DS-PDCM15PF-IR | RF CAMERA MODULE

Hikvision

The Hikvision DS-PDCM15PF-IR camera module represents an advanced solution for video alarm verification in outdoor security systems, integrating seamlessly with wireless Tri-tech detectors to provide real-time images both day and night. Thanks to the 1/2.7" Progressive Scan CMOS sensor and 2.0 mm fixed lens , it ensures a wide field of view and consistent quality. 3D Digital Noise Reduction technology improves clarity, while infrared with a range of up to 15 m ensures visibility in low-light conditions. Designed for outdoor environments, it features IP66 protection and simplified installation with an adjustable angle for a perfect fit with the sensor.

Main specifications:

- 1/2.7" Progressive Scan CMOS sensor

- Fixed 2.0mm wide angle lens

- 3D Digital Noise Reduction technology

- Infrared illumination up to 15 m

- IP66 protection rating for outdoor use

- Easy installation with adjustable angle

Further details

✅ Detection Performance:
Video verification- based system that allows visual verification of alarms in real time, improving the accuracy of interventions and reducing false alarms thanks to immediate control of images
✅ Features :
3D Digital Noise Reduction integration for sharper, more detailed images even in challenging conditions, combined with a 2.0mm fixed lens for wide coverage and optimized monitoring performance.
✅ Video :
Guaranteed visual quality with a wide viewing angle of up to 137.2° , JPEG formats and different configurable resolutions, as well as infrared with a range of 15 m and automatic day/night switching for continuous surveillance.
✅ Interface:
Presence of 12-Bit Data communication interface which ensures stable and efficient data transmission between the camera module and the integrated security system.
✅ Power supply:
Operating with 3 VDC power supply and consumption of approximately 1200 mA , designed to ensure operational reliability and compatibility with wireless security systems.

Technical data sheet

DS-PDCM15PF-IR
Detection Performance
Detection Method Video Verification
Features
Digital Noise Reduction 3D
Focal length [email protected]
Video
Field Angle 137.2°(H), 80.1°(V)
Image Type JPEG
Resolution 640*480;320*240;160*120
Fill Light Infrared Light
Fill Range 15m
Day/Night Switch Car

Interfaces
Communication Interface 1 12-Bit Data Interface
Electrical Characteristics
Power Supply 3 VDC
Power Consumption 1200mA
General
Operation Temperature -25 °C to 60 °C (-13 °F to 140 °F)
Storage Temperature -25 °C to 60 °C (-13 °F to 140 °F)
Operation Humidity 10% to 90%
IP Rate IP66
Dimensions (WxHxD) 74.1mm x 72.35mm x 53mm
Weight 155g
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
