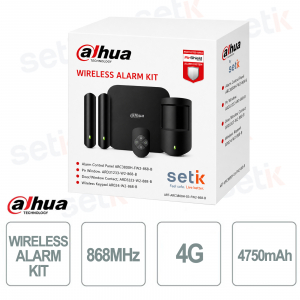

Wireless Alarm Kit ART-ARC3800H-03-FW2 Black Wi-Fi 4G AES128 - Dahua

Wireless Alarm Kit ART-ARC3800H-03-FW2 Black Wi-Fi 4G AES128 - Dahua

IN DER FÖRDERUNG -56%

ART-ARC3800H-03-FW2-868-B - The black wireless alarm kit offers a complete solution for protecting villas, apartments and shops thanks to AES128 two-way wireless technology with stable and secure communication up to 2,000 meters in open fields. The system integrates a hub, PIR sensor, magnetic contact and remote control, supporting Ethernet, Wi-Fi and 4G network connections with dual SIM to ensure maximum reliability. Equipped with alarm video verification , voice notifications, cloud updates and app management, it allows advanced and immediate security control. The devices, available in an elegant black color, ensure high anti-sabotage protection, long battery life and simple installation for residential and professional environments. Dahua

Technical Data Sheet


FREE DAHUA STICKER SIGN!


Artikel-Nr.: ART-ARC3800H-03-FW2-868-B

Marke: Dahua

EAN: 6937552407091

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


ART-ARC3800H-03-FW2-868-B | DAHUA ALARM KIT - WIFI & 4G - 868MHz FREQUENCY - BLACK


Dahua

FREE DAHUA STICKER SIGN!


The Dahua ART-ARC3800H-03-FW2-868-B black wireless alarm kit is a complete and professional solution for the security of homes, shops and offices, designed with two-way AES128 wireless technology for secure and stable communications up to 2,000 meters . The system includes a hub, PIR sensor, magnetic contact and remote control, supporting Ethernet, Wi-Fi and 4G network connections with dual SIM to ensure operational continuity even in the event of network failures. Thanks to the alarm video verification function, voice notifications, app management and cloud updates, it offers advanced control and real-time monitoring. The devices in an elegant black finish ensure anti-sabotage protection, high battery life and simple installation for residential and commercial environments.

Main specifications:

- Two-way AES128 wireless technology for encrypted, reliable, and interference-free communications

- Ethernet, Wi-Fi and 4G dual SIM connection with multi-network redundancy to ensure maximum system stability

- Integrated alarm video verification with IPC support for immediate control of security events

- PIR sensor with animal immunity up to 18 kg and precise detection up to 12 meters

- Wireless range up to 2,000 meters in open field for large professional installations

- Full app management with push notifications, voice calls, SMS and remote cloud updates

- Integrated tamper protection on hubs, sensors and wireless devices

- Built-in backup battery with up to 12 hours of battery life to ensure operational continuity even in the event of a power failure

Further details

  • Alarm center
  • Wired, wireless, 4G mode
  • Wi-Fi frequency: 2.4Ghz
  • Supports up to 150 devices (including 6 sirens and 64 keyfobs)
  • Alarm notifications via call or SMS (up to 5 numbers can be registered)
  • LAN RJ45 100M
  • Communication distance up to 2,000m in open field without obstacles
  • Black color
  • Wireless keypad
  • Two-way wireless communication protocol: 868MHz frequency
  • Operating status indicator (green for normal, red for abnormal)
  • Coverage up to 900 meters in open space
  • 4 buttons (Home, Away, Disarm, SOS)
  • SOS emergency alarm (via dedicated button)
  • Black color
ARD323-W2-868:
  • 868MHz Wireless Door/Window Alarm Sensor Contact
  • 868MHz two-way wireless communication protocol
  • Transmission up to 1,200m (in open space, without obstacles)
  • Tamper sabotage
  • Alarm indicator light (green)
  • Encryption: AES128
  • Power supply: 1 CR123A battery
  • Black color
  • Wireless PIR Detector
  • Two-way wireless communication frequency 868Mhz
  • Distance up to 1,600m in open field without obstacles
  • Pet Immune (immune to pet detection)
  • Frequency Hopping
  • Powered by CR123A battery
  • Alarm indicator light (green)
  • Black color

Technical data sheet

Model ART-ARC3800H-03-FW2-868-B
Port
Wireless Zone Hub:150 channels wireless peripherals (6 sirens, 64 PIR cameras(only 8 indoor PIR cameras), 64 keyfobs, 8 keypads and 4 repeaters)
Network Mode Hub: Ethernet, Wi-Fi and Cellular network(Supports installation of dual SIM cards. Only one card can be enabled at a time)
Network Port Hub: 1 RJ-45, 10Mbps/100Mbps Ethernet port
Storage battery Hub: One built-in 4,750 mAh rechargeable lithium battery.
Video & Audio
Video Input Hub: 8-ch IPC, which only supports the upload of alarm videos.
Audio Output Hub: 1 channel
Volume Control Hub: Yes
Voice Broadcast Hub: Telephone and local speaker
Function
Indicator Light Hub: The indicator indicates the status of alarms, arming and disarming, the network connection and device failure.
Keyfob: 1 dual-color status indicator (Green means normal and red means abnormal)
Door Detector: 1 green alarm indicator
PIR Detector: 1 green alarm indicator
Button Hub: Includes a reset button, voltage button and AP switch button.
Keyfob: 4 (Home, Away, Disarm, and SOS)
Door Detector: 1 power switch
PIR Detector: 1 power switch
SMS Hub: Yes (up to 5 phone numbers)
Phone Call Hub: Yes (up to 5 phone numbers)
Video Linkage Hub: Yes
Offline Cache Hub: Max. 50 entries (ANR)
Arm and Disarm Hub: App, Keypad, remote control, card, scheduled arming and disarming.
Remote Update All: Cloud update
Low Battery Alarm All: Yes
Tamper Hub: Yes
Door Detector: Yes
PIR Detector: Yes
User Management Hub: 33 app users (31 general users, 1 admin user and 1 installer) and 32 keypad users
Logs Hub: Up to 5,000 entries
Measuring Range (Temperature) Door Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
PIR Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
Transmission Protocol Hub: SIA, SoftGuard
Technical
Sensor Door Detector: Reed switch
PIR Detector: Dual elements low-noise PIR sensor
Detection Mode PIR Detector: PIR
Sensitivity PIR Detector: 3 levels adjustable
Detection Range PIR Detector: 12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft)
Detection Speed PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)
Movement Distance Door Detector: < 40 mm (1.57")
Pet Immunity Level PIR Detector: ≤ 18 kg (39.68 lb)
White Light Resistance Level PIR Detector: 2000 lx
Two-way Digital Temperature Compensation PIR Detector: Yes, no attenuation of detection distance in high temperature.
Scenario Door Detector: Non-metal doors
Wireless
Carrier Frequency All: 868.0 MHz–868.6 MHz
Transmitter Power (EIRP) All: Limit 25 mW
Communication Mechanism All: Two-way
Communication Distance Hub: Up to 2,000 m (6561.68 ft) in an open space.
Keyfob: Up to 900 m (2952.76 ft) in an open space.
Door Detector: Up to 1,200 m (3937.01 ft) in an open space
PIR Detector: Up to 1,600 m (5249.34 ft) in an open space
Encryption Mode All: AES128
Frequency Hopping All: Yes
General
Language Hub: Up to 7 languages are supported for SMS: English, Spanish (Latin America), French, Italian, Arabic, Turkish, and Danish. It is set as English by default. The alarm voice message feature and local speaker supports English and Italian.
Power Supply Hub: 100-240 VAC, 50/60 HZ
Keyfob: CR2032 battery
Door Detector: CR123A battery
PIR Detector: CR123A battery
Standby Time Hub:The battery lasts up to 12 hours when it is fully charged and is within the following conditions: It is connected to the Wi-Fi, its ID is connected to the alarm receiving center, the heartbeat interval is 1,800 seconds, and it is connected to 8 peripherals and the cloud.
Keyfob: 3 years
Door Detector: 4 years
PIR Detector: 4 years
Power Consumption Hub: 220 VAC 80 mA(Max) 220 VAC 40 mA(Standby)
Keyfob: 40 mA(Max), 0.5 uA (Standby)
Door Detector: 42 mA(Max), 29 uA (Standby)
PIR Detector: 44 mA(Max), 34 uA (Standby)
Operating Temperature All: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Operating Humidity All: 10%–90% (RH)
Product Dimensions Hub: 174.8 mm × 174.8 mm × 38.3 mm (6.88” × 6.88” × 1.51”) (L × W × H)
Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (2.36" × 1.56" × 0.59") (L × W × H)
Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80") (L × W × H)
PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H)
Net Weight Hub: 510 g (1.12 lb)
Keyfob: 20 g (0.04 lb)
Door Detector: 70 g (0.15 lb)
PIR Detector: 100 g (0.22 lb)
Gross Weight Kit: 1.46 kg (3.22 lb)
Installation Hub: Wall mount; Desktop mount
Door Detector: Bracket mount
PIR Detector: Wall mount
Casing Material All: PC + ABS
Certifications Hub:
THERE IS
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-3:2009
EN 50131-6:2017+A1:2021
EN 50131-5-3:2017
EN 50131-10: 2014
EN 50136-2: 2013+A1:2023
Security Grade 2
Environmental Class II
ATS category: SP2/DP2
Keyfob:
THERE IS
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-6:2017
EN 50131-5-3:2017
EN 50131-3:2009
Security Grade 2
Environmental Class II
Door Detector:
THERE IS
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-6:2017
EN 50131-5-3:2017
EN 50131-2-6:2008
Security Grade 2
Environmental Class II
PIR Detector:
THERE IS
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-2-2:2017
EN 50131-6:2017
EN 50131-5-3:2017
Security Grade 2
Environmental Class II
Anti-corrosion Level Basic Protection
Storage Temperature All: –10 °C to +55 °C (+14 °F to +131 °F)
Storage Humidity All: 10%–90% (RH)
Packaging Dimensions Kit: 270 mm × 218 mm × 122 mm (10.63" × 8.58" × 4.80") (L × W × H)
Wi-Fi
Standard Wi-Fi Hub: IEEE 802.11b/g/n
Wi-Fi Frequency Range Hub: 2400-2483.5 MHz
Wi-Fi Power Transmission Hub:≤20 [email protected] MHz
Cellular Network
Transmitter Power (EIRP) Hub:
4G: Power class3: 23 dBm±2dB
3G: Power class3: 24 dBm+1/-3dB
2G: Power class0: 30 dBm±3dB(GSM900)
Power class5: 33 dBm±3dB(GSM1800)
Cellular Network Standard Hub: GSM/WCDMA/LTE
Frequency Range Hub:
EU:
4G:FDD-LTE: B1/B3/B7/B8/B20/B28A; TDD-LTE: B38/B40/B41;
3G:WCDMA: B1/B8;
2G:GSM: 1,800/900MHz;
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
