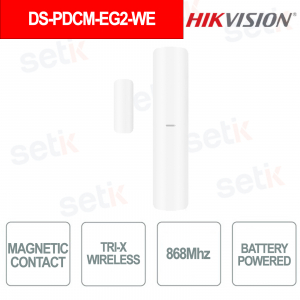

DS-PDCM-EG2-WE 868MHz Wireless Magnetic Contact with AES-128 for Doors and Windows - Hikvision

DS-PDCM-EG2-WE 868MHz Wireless Magnetic Contact with AES-128 for Doors and Windows - Hikvision

 
BEST PRICE -35%

DS-PDCM-EG2-WE - The wireless magnetic contact is an advanced sensor designed to detect the opening of doors and windows, offering effective protection against intrusion from the first signs. Thanks to 868 MHz two-way wireless Tri-X technology with AES-128 encryption , it guarantees secure and reliable communications over long distances. The slim and discreet design allows for invisible installation on any type of surface, including metal supports, while completely remote configuration via the app simplifies system management. Equipped with front and rear tamper protection and a battery life of up to 5 years , it is an ideal solution for modern and professional security systems. - Hikvision

Technical Data Sheet

Artikel-Nr.: DS-PDCM-EG2-WE

Marke: Hikvision

Disponibilità: 4

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

DS-PDCM-EG2-WE | MAGNETIC CONTACT

Hikvision

The Hikvision DS-PDCM-EG2-WE wireless magnetic contact is an advanced device for protecting doors and windows, designed to detect intrusion attempts early. Thanks to 868 MHz two-way wireless Tri-X technology with AES-128 encryption , it ensures secure and reliable communications even over long distances of up to 1.6 km. The slim and discreet design allows for invisible installation on any surface, while remote configuration via app simplifies system management. Equipped with front and rear tamper protection and a battery life of up to 5 years , it guarantees continuous security and reduced maintenance.

Main specifications:

- Tri-X 868 MHz wireless technology with AES-128: secure and stable transmission even over long distances

- Door and window opening detection: immediate protection against intrusions and unauthorized access

- Slim and discreet design: invisible installation and perfect aesthetic integration

- App configuration and easy installation: simple and quick management even remotely

- Front and rear tamper protection: advanced security against tampering

- Battery life up to 5 years: long battery life to reduce maintenance interventions

Further details

✅ Detection Performance:
The sensor uses a magnetic contact detection method with an opening distance of up to 43 mm , ensuring precise and immediate control of doors and windows for effective protection against intrusion.
✅ Features :
It integrates advanced digital processing , front and rear tamper protection and status indicators such as temperature and signal , ensuring continuous monitoring and security against tampering.
✅ Interface:
Equipped with configurable alarm inputs (NC/NO/pulse) and signalling LEDs , it allows flexible integration with different systems and intuitive management of the device.
✅ Transmission :
It leverages 868MHz two-way Tri-X wireless technology with AES-128 encryption , with a range of up to 1.6km and frequency hopping anti-jamming , ensuring secure and stable communications.
✅ Power supply:
Battery powered with a 3V CR123A , it offers a lifespan of up to 5 years , reducing maintenance and ensuring operational continuity over time.

Technical data sheet

DS-PDCM-EG2-WE
General
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimensions (WxHxD) 24mm × 104mm × 24.4mm 13mm × 34.4mm × 11.4mm
Weight 59g
Application Scenario Indoor
Detection Performance
Detection Method Opening Contact
Detection Gap 43 mm Max
Features
Digital Processing Support
Tamper Protection Front
Environment Temperature Indicator Support
Signal Strength Indicator Support

Interfaces
Alarm Output Normally Closed; Normally Open; Impulse Count
Power Switch Power up enrolling
LED Indicator Blue (Alarm)
Transmission
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1.6 km
Frequency Hopping Support
Enrolling Method Power up; Remote ID; QR Code
Electrical Characteristics
Standard Battery Life Up to 5 years (standby time)
Power Supply Battery powered
Battery Type CR123A x 1
Typical Voltage 3V
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
