147147.312.NC | AJAX HUB BP ALARM CONTROL PANEL WITHOUT CASING - 2 SIM 2G/3G/LTE


Ajax

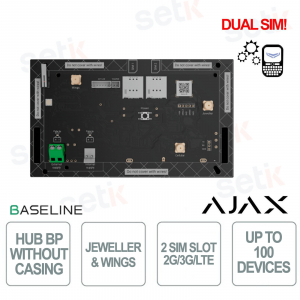

The Ajax Hub BP Jeweller (without casing), 147147.312.NC , is a wireless control panel designed for maximum security of remote installations and sites without power. It operates with long-lasting internal batteries and supports photo verification with encrypted transmission of alarms and images. Thanks to Jeweller and Wings radio communication, it guarantees an operating range of up to 2,000 meters, stable connections with 2G/3G/LTE SIM cards, and immediate alerts via push or SMS .

Main specifications:

- Bodyless version for installation in Ajax housing

- Communication range up to 2,000 m in open field

- Dual SIM support (2G/3G/LTE) for continuous connection

- Advanced battery saving mode

- Encrypted transmission of alarms and photos in less than 9 seconds

- Compatible with up to 100 wireless devices and 50 users

Further details

Jeweler Communication:
It uses a proprietary radio protocol that transmits alarms, events, and measured values up to 2,000 m in open terrain . It integrates advanced encryption and device authentication to prevent counterfeiting, as well as regular ping to monitor device status .
Wings Communication :
Designed for the rapid transmission of photos and data packets , it has a range of up to 1,700 m . The unique upload algorithm ensures secure delivery, while data backup ensures continuity even in the event of interruptions .
Communication channels :
It supports dual SIM (2G/3G/LTE) for constant connectivity even in the absence of a wired network. This redundancy ensures continuous data flow and greater transmission security .
Features:
Compatible with up to 100 wireless devices , 50 users and 32 automation scenarios. It allows you to manage 9 security areas , offering a scalable system suitable for both residential and professional contexts .
Power supply:
It works with internal rechargeable or non-rechargeable batteries (capacity up to 95 Ah ) and can be connected to external batteries to further extend its autonomy. The advanced energy saving mode allows for months of continuous use without a power outlet .

Technical data sheet

147147.312.NC

Compliance with standards EN 50131 (Grade 2)
PD 6662:2017
Nist (AES-128)
Communication with Ajax devices Jeweler
communication technology
Wings
communication technology
Communication range
up to 2,000 m
up to 6,550 ft
Frequency bands
866.0-866.5 MHz
868.0-868.6 MHz
868.7-869.2 MHz
905.0-926.5 MHz
921.0-922.0 MHz
depend on the sales region
Communication channels Cellular network
Two slots for micro SIMs (2G/3G/LTE)
Features 100 wireless Ajax devices
50 users
50 rooms
32 automation scenarios
9 security groups
Power supply Internal power supply
4.2-16.2 V (max 2 A)
rechargeable and non-rechargeable batteries with a capacity of up to 195 Ah
not included
External power supply
4.2-16 V (max 2 A) zinc-air battery with a capacity of up to 600 Ah
not included
Installation Operating temperature range
from -10°C to +40 °C
from 14°F to 104°F
Operating Humidity
up to 75%
Casing Color: Black
Complete set BP Jeweler Hub (without casing)
External LED board
Cable for external LED board
Installation kit
Quick start guide
