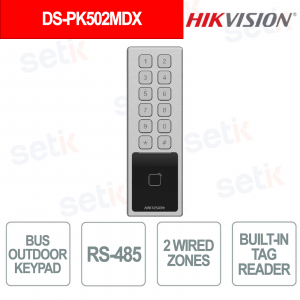

DS-PK502MDX - is an outdoor bus keypad designed for professional burglar alarm systems, featuring IP66 and IK08 protection to ensure maximum resistance to atmospheric agents and impacts. Equipped with RS-485 bus power supply , it offers simple installation and reliable integration with security control panels. It integrates 2 wired zones and 1 relay output , allowing direct control of external devices. The presence of a backlit physical numeric keypad and integrated RFID tag reader allows quick and secure access via PIN or badge. Designed for outdoor use with EN50131 Grade 2 certification , it represents a robust and efficient solution for access control and security system management. Hikvision

Technical Data Sheet

Artikel-Nr.: DS-PK502MDX

Marke: Hikvision

EAN: 6942640550580

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

DS-PK502MDX – BUS WIRED KEYBOARD WITH M-CARD READER

Hikvision

The Hikvision DS-PK502MDX is an outdoor bus keypad designed for professional burglar alarm systems, featuring IP66 and IK08 protection to ensure resistance to dust, water and vandalism in any conditions. Powered via RS-485 bus , it ensures stable integration and simplified installation. It has 2 wired zones and 1 relay output , offering flexibility in controlling external devices. The backlit physical numeric keypad and the integrated RFID tag reader allow quick and secure access via PIN or badge. Designed for outdoor environments and certified EN50131 Grade 2 , it represents a reliable solution for access control and management of security systems.

Main features:

- IP66 and IK08 protection for outdoor use

- RS-485 bus power supply

- 2 wired zones and 1 relay output

- Backlit physical numeric keypad

- Integrated RFID reader for authentication

- EN50131 Grade 2 Certification

Further details

✅ Areas:
The keypad supports 2 built-in wired zones , allowing direct connection of external sensors and offering flexible management of alarm inputs in security systems.
✅ Interfaces:
 It uses RS-485 bus interface for stable and reliable communication with the control panel, ensuring secure data transmission and simple integration into the system.
✅ Authentication :
It integrates advanced authentication systems with M1/DESFire® RFID reader and 4–6 digit PIN access , ensuring fast, secure and personalized access control .
✅ Bus interconnection :
Based on Half-Duplex RS-485 technology with 4-wire wiring , it allows for efficient and stable connection over long distances in professional burglar alarm systems.
✅ Indication :
 Equipped with multi-color LED indicators and backlighting , it provides immediate visual feedback on the system status , improving usability even in low light conditions.
✅ Hardware :
Includes built-in 60dB buzzer and debug port , offering audible warnings and easy maintenance , with rugged construction certified for outdoor use.

Technical data sheet

DS-PK502MDX
Inputs (Zones)
Max. Zones 2
On-board zones 2
Outputs
Max. outputs 1
On-board relay outputs 1
User interface
Key button 12 buttons, including 0-9,* ,#
Authentication
Tags M1/DESFire® Card
PIN 4~6 digits

Bus interconnection
Bus technology Half-Duplex RS-485
Bus wiring 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)
Power supply - general
Input voltage 12 VDC nominal (9~24 VDC), powered by bus
Quiescent current 130 mA @15VDC (when on battery)
Power supply - primary power supply
Mains Input 100-240VAC 50/60Hz, 0.3A
Power supply capacity 70mA @12VDC
Max. current 200mA @12VDC
Relay output
Relay output 1.1A 30VDC
Environmental
Operating temperature -20 °C to 60 °C
Storage temperature -20°C to 60°C
Relative humidity 10% ~ 90% non-condensing
Physical
Dimensions (W × H × D) 58.7mmx177.9mmx33.6mm
Weight 303 g
Installation method Wall mounting
Tamper-proof Front and Rear
Compliance
Electrical compliance CE, CB
EN 50131 Security Grade 2, Environmental Class IV
Indication
LED indication 1 indicator(Yellow\Green\Red\Blue\Orange) and backlight
Hardware features
Buzzer 1×built-in buzzer，60dB@1m
Debugging port 1
General
Application scenario Outdoor
IK rate IK08
IP rate IP66
