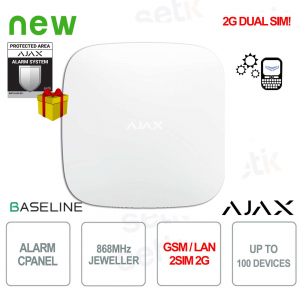

Ajax Hub 2 (2G) Jeweller White – Smart Wireless Security Control Panel

Ajax Hub 2 (2G) Jeweller White – Smart Wireless Security Control Panel

 

38239.40.WH1 # 38239 | Ajax Hub 2 (2G) Jeweller White is an advanced security control panel that ensures stable connections via Ethernet and dual 2G SIM , supporting MotionCam photo verification for quick response to alarms. Thanks to the Jeweller and Wings protocols, it ensures encrypted communications, radio coverage of up to 2,000 m, and reliable photo transmission even with a weak signal. The Ajax cloud with 99.995% availability allows continuous monitoring, instant notifications, and remote management via app, while the built-in battery offers up to 16 hours of battery life. Designed to integrate up to 100 devices, it guarantees anti-sabotage protection, connection loss detection, and quick installation with SmartBracket support. Ideal for professional systems, it combines high performance and an elegant black design. Ajax

Technical Data Sheet

>> FREE AJAX STICKER SIGN

Artikel-Nr.: 38239.40.WH1

Marke: Ajax Systems

EAN: 4823114015182

Disponibilità: 10

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

KOSTENLOSES TVCC-SCHILD!×

Mit allen >> AJAX KITS

TOTALER AUSVERKAUF ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

38239.40.WH1 | SECURITY SYSTEM CONTROL PANEL WITH PHOTO-VERIFICATION SUPPORT

>> FREE AJAX STICKER SIGN


Ajax

The Ajax Hub 2 (2G) Jeweller, 38239.40.WH1 , white is a smart security control panel designed to ensure reliable communications thanks to Ethernet channels and dual 2G SIM, as well as support for MotionCam photo verification for quick alarm responses. The Jeweller and Wings protocols offer advanced encryption, radio coverage of up to 2,000 m and secure photo transmission even in weak signal conditions, while the Ajax cloud with 99.995% availability ensures constant monitoring and instant notifications. Equipped with a built-in battery of up to 16 hours and anti-sabotage protection, the hub manages up to 100 devices and is quick to install thanks to the SmartBracket system, combining professional performance with a modern and elegant black design.

Main specifications:

- Secure communications via Ethernet and 2 2G SIMs

- MotionCam photo verification support

- Jeweler and Wings protocols with coverage up to 2,000 m

- Advanced encryption, anti-jamming and connection loss detection

- Cloud Ajax with 99.995% availability and real-time notifications

- Built-in battery up to 16 hours of battery life

- Support for up to 100 Ajax devices

- Quick installation with SmartBracket

Further details

✅ Capacity:
The Ajax Hub 2 (2G) Jeweller manages up to 100 wireless devices and supports up to five signal extenders, offering a highly scalable security platform that allows you to integrate sensors, sirens, cameras, keypads and automations to create a professional and fully customizable system.
✅ Jeweler Communication :
The Jeweller protocol ensures encrypted, stable and instant radio communication with coverage up to 2,000 meters in open space , ensuring reliable transmission of alarms, events and device statuses through anti-spoofing authentication, dynamic frequency (frequency hopping) and automatic signal strength optimization.
✅ Wings Communication :
Wings technology is dedicated to sending photo-verifications and large data packets with a radio range of up to 1,700 m , thanks to a unique upload and confirmation algorithm that ensures image delivery even with weak signals, including backup and automatic data recovery in case of interruptions.
✅ Communication channels :
 The hub uses three independent channels— Ethernet and two 2G SIMs —that work in parallel with automatic switching in seconds, ensuring operational continuity and maintaining an active connection to users and the Ajax cloud even in the event of failures or instability of the main network.
✅ Photo verification:
With support for MotionCam detectors, the hub quickly sends photo sequences of events via Wings, providing immediate visual confirmation of the alarm and improving the ability to assess and respond – a key benefit for users and control centers that require timely and reliable responses.
✅ Monitoring:
The system leverages the Ajax cloud with 99.995% availability to provide constant monitoring of the entire system, allowing users and security companies to access device status in real time, receive immediate notifications, configure the system remotely, and ensure continuous supervision without the need for on-site intervention.
✅ Anti-sabotage:
The hub integrates advanced protections such as anti-tampering , jamming detection, connection loss notifications and an internal battery that offers up to 16 hours of battery life , ensuring the system continues to operate even in the event of a power outage or targeted attack attempts, maintaining surveillance always active.

Technical data sheet

38239.40.WH1
Capacity
Wireless Ajax devices up to 100
Specifically, up to 10 sirens and 1 range extender.
Third-party IP cameras up to 25
  • Seamless integration with Dahua, Hikvision, Safire, EZVIZ, Uniview IP cameras, and DVRs.
  • RTSP support.
Users up to 50
  • Any number of admin users within the hub limit.
  • PRO accounts for installers.
  • PRO accounts for installation and monitoring companies.
  • Access management for users.
Automation scenarios up to 32
  • Alarm responses.
  • Scheduled actions.
  • Security mode changing reactions
  • Temperature changing reactions.
  • Humidity changing reactions.
  • Reactions to changes in CO2 concentration.
  • Reactions to pressing Button.
Security groups up to 9
Rooms up to 50
Wireless communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) < 20 mW
Featured automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Wings communication range Up to 2,000 m
Up to 6,500 ft
Between the hub and connected devices (in an open space).
Maximum range depends on the connected device.
Polling interval from 12 to 300 s
Adjusted by PRO or user with admin rights in the Ajax apps.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Radio frequency hopping To prevent radio interference and radio signal interception.
Wings communication technology Proprietary wireless communication technology to transmit photo verifications.
Key features:
  • Two-way communication.
  • Block encryption featuring a dynamic key.
  • Advanced anti-sabotage.
  • Package re-uploading in case of transmission errors.
  • Photo delivery check.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) < 20 mW
Featured automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Radio signal range Up to 1,700 m
Up to 5,500 ft
Between the hub and connected devices (in an open space). Maximum range depends on the connected device.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Radio frequency hopping To prevent radio interference and radio signal interception.
Recommendations The device operating voltage is 110–240 V~. Hub is designed for indoor installation only.
Communication channels
Ethernet 1 8P8C socket
Up to 100 Mbps.
Cellular 2 micro-SIM slot
Cellular bands 2G
GSM 850/900/1800/1900 MHz
Automatic switching between communication channels Instant switching between Ethernet and SIM.
Communication channels prioritization 1. Ethernet
2. Cellular connection
Communication channels work in parallel, to increase system reliability. Most of the data is transmitted via Ethernet.
Notifications
Supported notification types
  • Push notifications
  • SMS
  • Calls
Event types
  • Alarms
  • Malfunctions
  • Security Mode Change
  • System Events
  • Non-security Alerts
  • Automation Devices
The notification types are configured for each user.
Photo verification
Photo verification types
  • Photo by alarm
  • Photo by scenarios
  • Photo on demand
Photo delivery time up to 9 s
by default.
Photo resolution up to 640 × 480 pixels
Depends on the detector.
Number of photos in a series: from 1 to 5 pictures
Monitoring
Supported protocols
  • SIA (DC-09)
  • SurGard (Contact ID)
  • ADEMCO 685
  • Other proprietary protocols
Event types
  • System alarms and events
  • Panic button coordinates
  • Photo verification
Power Supply
Main 110–240 V~, 50/60 Hz
Up to 10W of mains power consumption.
Backup Built-in backup battery: Li-ion 3 А·h
Up to 15 hours of offline operation when the Ethernet is switched off.
Alternative 6 V⎓ (when using 6V PSU for Hub 2/Hub 2 Plus/ReX 2)
12–24 V⎓ (when using 12–24V PSU for Hub 2/Hub 2 Plus/ReX 2)
Requires the appropriate alternative power supply unit (sold separately)
Anti-sabotage
Tamper alarm The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing devices' authentication
Proprietary authentication algorithms make it impossible to spoof the hub or connected devices.
Frequency hopping The users and the security company receive notifications in case of jamming or when the hub loses connection with the devices.
Enclosure
Color White
Dimensions 163 × 163 × 36 mm
6.42″ × 6.42″ × 1.42″
Weight 360 g
12.70 oz
Operating temperature range from −10°C to +40°C
from 14°F to 104°F
Operating humidity up to 75%
Casing protection class IP20
Complete set Hub 2 (4G) Jeweler
SmartBracket mounting panel
Power supply cable
Ethernet cable
Installation kit
SIM card (depends on the sales region)
Quick start guide
Warranty 24 months
