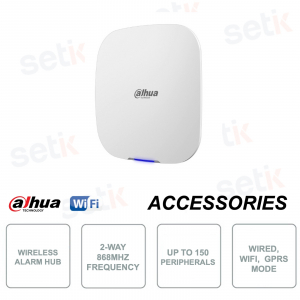

ARC3000H-GW2-868 | WIRELESS ALARM CONTROL UNIT

Dahua ARC3000H-GW2-868 wireless alarm control panel is an advanced control unit designed for the safe and intelligent management of residential and commercial security systems. With 868 MHz two-way wireless communication and support for multiple communication technologies, it offers reliable protection and easy management even remotely via app.
This control panel supports wireless devices such as sensors, sirens and remote controls, allowing flexible configuration and smart management of the entire system.
Main specifications:
- 868 MHz two-way wireless communication
- Support up to 150 wireless devices
- Ethernet, Wi-Fi, 2G/4G connectivity for remote access and real-time notifications
- Compatible with mobile app for smart management from smartphone
- Up to 4 independent areas and 99 configurable users
- Tamper protection and watchdog function for high reliability
- Compact and modern design, suitable for any environment
Further details

Technical data sheet
ARC3000H-GW2-868 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input/Output |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless Zone |
150-channel wireless peripherals (6 sirens, 64 wireless keyfobs) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1 × RJ-45 10M/100M Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Mode |
Single SIM 2G (GSM:B3/B8); dual SIM single standby |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
StorageBattery |
Built-in lithium battery |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Indicator Light |
1 for multiple statuses (alarm, arming, disarming, networking, and malfunction) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button |
1 × reset, 1 × power, 1 × AP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Buzzer |
Built-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tamper Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMS |
Yes (up to 5 phone numbers) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Calling Alarm |
Yes (up to 5 phone numbers) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Linkage |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remote Upgrade |
Cloud update |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Arm and Disarm |
App; keyfob; schedule |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Failure Protection for Configured Parameters |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User Management |
Share function for App users |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cache |
Max. 50 entries (ANR) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Low Battery Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Search |
Search for push messages, device status, and program version, and detect signal strength |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Carrier Frequency |
868.0MHz–868.6MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Distance |
Up to 2,000 m (6,561.68 ft) in an open space |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Mechanism |
Two way |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encryption Mode |
AES128 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi |
2.4G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency Hopping |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12 V DC, 1.5 A (Europe, UK and USA power adapters are optional) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +50 °C (+14 °F to +122 °F) (indoor) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
163.0 mm × 163.0 mm × 32.0 mm (6.42" × 6.42" × 1.26") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
219.0 mm × 187.0 mm × 91.0 mm (8.62" × 7.36" × 3.58") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Wall mount; Desktop |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.38 kg (0.84 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.8kg (1.76lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
THERE IS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Battery Life |
Storage battery standby for 12 hours |
