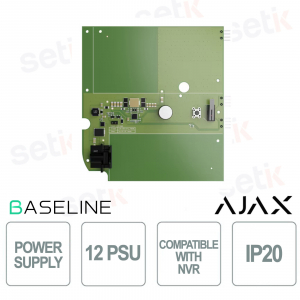

112255.305.NC # 112255 | Ajax 12V PSU for NVR is a power supply module designed to enable the operation of Ajax network video recorders on low-voltage power , ensuring operational continuity even in the absence of a power grid. Installed directly inside the NVR, it replaces the standard power supply and allows uninterrupted video recording during blackouts using batteries or DC sources. It supports dual input modes 8–16 V or 12.1–16 V , with deep discharge protection and automatic shutdown below the threshold. The solution offers quick installation , full compatibility with Ajax 8- and 16-channel NVRs , and stable and safe operation , making it ideal for professional installations with high reliability requirements. Ajax

Technical Data Sheet

Artikel-Nr.: 112255.305.NC

Marke: Ajax Systems

EAN: 4823114066863

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2026-03-03 17:54:49 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

KOSTENLOSES TVCC-SCHILD!×

Mit allen >> AJAX KITS

112255.305.NC | POWER SUPPLY FOR OPERATION OF THE NVR WITH A LOW VOLTAGE POWER SOURCE

Ajax

The Ajax 12V PSU for NVR, 112255.305.NC, is a power supply module designed to enable the operation of Ajax network video recorders on low-voltage power , ensuring continuous recording even in the event of a blackout or unstable power grid. Installed directly inside the NVR, it replaces the standard power supply and allows the use of batteries or alternative DC sources . It supports two operating modes, 8–16 V and 12.1–16 V , and offers protection against deep discharge thanks to automatic shutdown below the threshold. The solution ensures quick installation , stable and safe operation , and full compatibility with Ajax 8- and 16-channel NVRs , making it ideal for professional, highly reliable installations.

Main specifications:

- Low voltage power supply for Ajax NVR

- Continuous video recording even in the absence of a power supply

- Dual operating mode 8–16V and 12.1–16V

- Deep discharge protection with automatic shutdown

- Quick internal installation in the NVR compartment

- Compatibility with Ajax 8 and 16-channel NVRs

Further details

✅ Input without jumper installed:
In this configuration, the module operates with input voltage between 8 and 16 V DC , allowing the Ajax NVR to operate directly on low voltage sources without additional limitations, ideal for systems powered by batteries or stable DC lines.
✅ Input with a jumper installed:
With the jumper on , the input is set to 12.1–16V DC , a mode designed to protect the battery from deep discharge , as the NVR automatically shuts down when the voltage drops below 10.35V , ensuring greater safety and longer power supply life.
✅ Exit:
The module provides a stable nominal output of 12 V ±3% , ensuring continuous and reliable power supply to the network video recorder even under variable load conditions, with optimized power management and protection of the internal electronics.
✅ Installation:
Designed for direct internal installation in the NVR compartment , it replaces the standard power supply and allows quick assembly in about 10 minutes using common tools, making the operation simple even in professional contexts .
✅ Power connection:
Connection is via a standard power connector with DC jack and included clamp adapter , ensuring compatibility with various low voltage power sources and maximum flexibility of integration into systems.

Technical data sheet

112255.305.NC
Input without an installed jumper
Device operating voltage range 8–16 V⎓
Maximum current consumption up to 4 A
When output maximum current consumption is 2 A.
Turn-on threshold when the voltage rises 8 V⎓
In the no-load state.
Turn-off threshold when the voltage drops 6.5 V⎓
In the no-load state.
Input with an installed jumper
Device operating voltage range 12.1–16 V⎓
Maximum current consumption up to 4 A
When output maximum current consumption is 2 A
Turn-on threshold when the voltage rises 12.1 V⎓
In the no-load state
Turn-off threshold when the voltage drops 10.35 V⎓
In the no-load state.
Output
Installation method 12 V⎓ ± 3%
Shutdown device's current consumption 110 μA
Quiescent device's current consumption 65 mA
Maximum device's current consumption 2 A
Installation
Nominal voltage into the NVR enclosure by replacing the bundled power supply board
Operating temperature range from 0 °C to +40 °C
from 32 °F to 104 °F
Operating humidity up to 75%
Protection class IP20
Power supply connection
Connector slot 6.5 × 2.0 mm
0.26″ × 0.08″
Power jack (female)
Connector 5.5 × 2.1 mm
0.22″ × 0.08″
Power jack (male)
Connected cable cross-section AWG 12–14
Board
Dimension 118 × 123 × 17 mm
4.64″ × 4.84″ × 0.67″
Weight 51 g
1.80 oz
Operating temperature range from 0 °C to +40 °C
from 32 °F to 104 °F
Complete set 12V PSU for NVR
Terminal adapter
Quick start guide
Warranty 24 months
