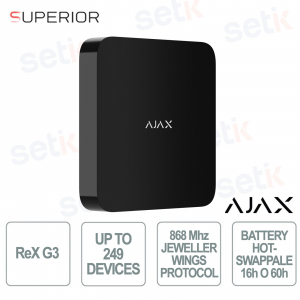

Ajax Superior ReX G3 Black: Professional Grade 3 Range Extender

Ajax Superior ReX G3 Black: Professional Grade 3 Range Extender

Neu

156123.363.BL1 #156123 - Ajax Superior ReX G3 Jeweller black is a professional radio range extender designed to expand the coverage of Grade 3 security systems, ensuring stable communication between hubs and devices even in complex facilities. It supports photo verification via MotionCam and integrates Superior Jeweller and TurboWings protocols, reaching up to 3,500 m of radio coverage in open spaces. It can be connected via Ethernet for maximum reliability even in areas with radio interference. With a hot-swappable 16- or 60-hour battery, anti-sabotage protection, and configuration in just a few minutes via QR code, it offers a robust, scalable solution ideal for professional, high-security installations. Ajax

Technical Data Sheet

Artikel-Nr.: 156123.363.BL1

Marke: Ajax Systems

EAN: 4823114083303

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

156123.363.BL1 | WIRELESS REPEATER WITH PHOTO-VERIFICATION SUPPORT AND ETHERNET CONNECTION


Ajax

The Ajax Superior ReX G3 Jeweler, 156123.363.BL1, black , is a professional radio range extender designed to expand the coverage and stability of communications in Ajax Grade 3 systems, ensuring reliable performance even in large and complex facilities. Thanks to the Superior Jeweler and TurboWings protocols, it ensures fast transmissions, full support for MotionCam photo verification, and a radio range of up to 3,500 m in open areas. It also features an integrated Ethernet connection to ensure stability even in environments with strong interference, while hot-swappable 16- or 60-hour batteries ensure continuous operation. Certified EN 50131 Grade 3 and equipped with advanced anti-sabotage protection, it is easy to install via QR code and quickly configured in the Ajax app.

Main specifications:

- Radio coverage up to 3,500 m with Superior Jeweler and TurboWings protocols

- MotionCam photo-verification support for quick event assessments

- Ethernet connection for maximum reliability in harsh environments

- Grade 3 anti-sabotage protections: anti-jamming, tamper, device authentication

- Hot-swappable battery with 16 to 60 hours of battery life (depending on the model)

- Quick installation with QR code and configuration via Ajax app

- Compact black design, with 110–240 V AC power supply and IP20 protection

Further details

Connection:
The ReX G3 Jeweler connects to the hub via encrypted radio protocols or via Ethernet , ensuring constant communication even in environments with interference, underground car parks or multi-storey buildings.
Jeweler Connection:
The Superior Jeweler protocol ensures immediate sending of statuses, alarms and events from connected devices, maintaining full synchronization with the hub and reducing delays in alarm management.
Wings Connection:
The TurboWings protocol is optimized for transporting large packets such as MotionCam photos and firmware updates, ensuring fast and reliable delivery even over long distances.
Communication channels:
It supports radio coverage of up to 3,500 m in open field and includes an 8P8C Ethernet port up to 100 Mbps, allowing you to use the wired network as a primary or backup channel.
Protection against sabotage:
Includes anti-tampering features such as tamper alarm, communication loss detection within 36 seconds, device authentication, anti-spoofing protection and frequency hopping against jamming and interference.
Photo verification:
Compatible with MotionCam detectors, it automatically sends images of the event within seconds, enabling quick assessments and reducing false alarms through accurate visual verification.
Autonomous operation:
It supports hot-swappable Ajax Superior batteries ( 16h or 60h ), ensuring full autonomy even during prolonged blackouts without interrupting system communication.

Technical data sheet

156123.363.BL1
Connection possibilities Number of Superior ReX G3 Jeweler connected to the hub
up to 5
For all compatible hub models.
Number of devices connected to Superior ReX G3 Jeweller
up to 249
Depends on the hub model
Wireless communication Data transfer protocols
Superior Jeweler
To transmit commands, alarms, and events. An upgraded version of the Jeweler radio protocol for Superior devices, ensuring compliance with Grade 3 (EN 50131). If at least one device operates via the regular Jeweler protocol, the system will be limited to Grade 2: encryption remains, but frequency hopping is disabled.
Jeweler
To transmit commands, alarms, and events from devices without Superior Jeweler support.
Wings
To transmit large data packets, such as firmware updates, and photos.
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Radio communication range
up to 3,500 m (TBC)
up to 11,450 ft (TBC)
Between a hub and a radio signal range extender, or between a range extender and connected devices (in an open space). The maximum range depends on the connected device and the hub model.
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Advanced encrypted communication
The communication between the device and the hub is protected by an advanced encryption scheme that ensures data confidentiality and integrity.
Enhanced frequency hopping
To prevent radio interference and jamming. For enhanced hopping to function, all devices in the system must use the Superior Jeweler protocol. If even one device uses the regular Jeweler protocol, hopping will be limited to only 2 frequencies.
Recommendations The device operating voltage is 110–240 V~.
Superior ReX G3 Jeweler is designed for indoor installation only.
Communication channels Ethernet
1 × 8P8C socket
Up to 100 Mbps.
External antenna connectors
Jeweler
Wings
The system will notify of the damaged antenna. Ajax ExternalAntenna is sold separately.
Delivery time Alarm delivery time to the hub
0.3 s
Photo delivery time to the hub
18 s
Via Superior ReX G3 Jeweler using the Wings channel. Delivery time depends on the settings.
10 s
Via Superior ReX G3 Jeweler using the Ethernet channel. Delivery time depends on the settings.
Sabotage protection Tamper alarm
The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing
device authentication
Frequency hopping
The system sends notifications to all users and the security company of jamming or losing connection with the devices.
Jamming alert
Superior ReX G3 Jeweler analyzes the channel's noise level and the quality of
communication with added devices and sends an alert in 30 seconds.
Communication loss detection
after 36 s
Detection time depends on the Jeweller/Fiber settings.
Power supply Main power supply type
Type A
Device operating AC voltage range
110–240 V, 50/60 Hz
From the main power supply. Up to 15 W of mains power consumption.
Device operating DC voltage range
6.0–8.2 V⎓
Low battery voltage
7.0 V⎓
Low battery recovery voltage
8.135 V⎓
End-of-life battery voltage
6.0 V⎓
Superior ReX G3 Jeweler is switched off.
Minimum backup battery energy level in the charged stat
100%
Autonomous operation On Superior Internal Battery (16h)
up to 16 hours
When Ethernet is enabled. Superior Internal Battery (16h) is not included in the complete set.
On Superior Internal Battery (60h)
up to 60 hours
When Ethernet is enabled. Superior Internal Battery (60h) is not included in the complete set.
Current consumption Maximum at nominal voltage
87 mA
Quiescent at nominal voltage*
up to 87 mA
When Ethernet is enabled
up to 29 mA
When Ethernet is disabled.
Enceinte Dimensions
216 × 216 × 45 mm
8.50″ × 8.50″ × 1.77″
Weights
1,200 g
2.65 lb
Operating temperature range
from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity
up to 75%
Protection class
IP20
Colors Black
Complete set Superior ReX G3 Jeweler
SmartBracket mounting panel
Power cable
Ethernet cable
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
