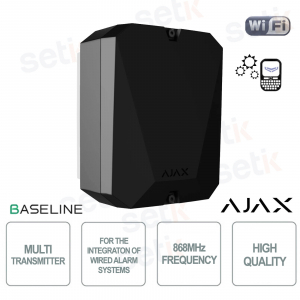

Ajax MultiTransmitter Jeweller Black Module for Third-Party Wired Sensors

Ajax MultiTransmitter Jeweller Black Module for Third-Party Wired Sensors

 

38201.62.BL1 # 38201 | Ajax MultiTransmitter Jeweller black is a professional module designed to integrate third-party wired detectors into Ajax security systems, offering an ideal solution for modernizing existing installations. It supports up to 18 inputs for wired devices , allows connections up to 400 meters in length , uses two-way, encrypted Jeweller radio communication , and ensures full app management with advanced notifications and automation scenarios . Thanks to 3EOL support and local and remote configuration via the PRO app, it ensures maximum installation flexibility and operational reliability in professional contexts. Ajax

Technical Data Sheet

Artikel-Nr.: 38201.62.BL1

Marke: Ajax Systems

EAN: 4823114015267

Disponibilità: 3

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

KOSTENLOSES TVCC-SCHILD!×

Mit allen >> AJAX KITS

TOTALER AUSVERKAUF ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

38201.62.BL1 | Wireless Module for Connecting Up to 18 Third-Party Devices to the Ajax System

Ajax

The Ajax MultiTransmitter Jeweller, 38201.62.BL1, black, is a professional module designed to integrate third-party wired detectors into Ajax security systems, offering an effective solution for modernizing existing systems without replacing existing sensors. Thanks to secure radio communication and advanced management via the app, Jeweller enables remote control, detailed notifications, and the creation of automation scenarios, ensuring reliability and flexibility in residential and professional settings.

Main specifications:

- Integration of third-party wired sensors with Ajax systems

- Up to 18 inputs for wired devices

- Two-way, encrypted Jeweler communication

- 3EOL support for wide detector compatibility

- Wired connections up to 400 meters

- Local and remote configuration and management via the Ajax PRO app

Further details

✅ Jeweler Communication:
The Ajax MultiTransmitter module uses the encrypted two-way Jeweller radio protocol to ensure stable and secure communication with the Ajax hub, enabling reliable transmission of events from built-in wired devices, with constant monitoring of the connection status and protection against interference and signal tampering.
✅ Connecting wired devices :
Designed to breathe new life into traditional systems, MultiTransmitter allows the integration of third-party wired detectors thanks to 18 dedicated inputs, 3EOL support and connections up to 400 meters, allowing the management of numerous types of events and ensuring wide compatibility with sensors already installed.
✅ Anti-sabotage protection :
The device integrates advanced security systems with anti-opening and anti-removal tamper protection that immediately signal any tampering attempt, ensuring high standards of reliability and maintaining the integrity of the system even in complex professional contexts.
✅ Power supply :
MultiTransmitter is designed for continuous and stable operation, supporting the necessary power supply to the connected wired devices and ensuring operational reliability over time, making it ideal for professional installations that require safety and continuity of service.

Technical data sheet

38201.62.BL1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 25 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 2,000 m
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming
Wired devices connection
Number of zones 18 wired zones
Multiple devices can be connected to one zone. The number of connected devices depends on their power consumption.
Type of connection NC, NO, EOL
MultiTransmitter Jeweler with a firmware version lower than 2.13.
NC, NO, EOL, 2EOL, 3EOL
2EOL and 3EOL connection types are only available for MultiTransmitter Jeweler with the firmware version 2.13.0 or later.
The integration module should be added to a compatible hub running on OS Malevich 2.13 or later. If Hub (4G) Jeweler is used, the control panel should be updated to OS Malevich 2.28 or later.
EOL resistance from 1 kΩ to 7.5 kΩ with 100 Ω increment
MultiTransmitter Jeweler with a firmware version lower than 2.13. EOL resistance is measured automatically in the Ajax PRO apps.
from 1 kΩ to 15 kΩ for each resistor, up to 30 kΩ of total resistance
MultiTransmitter Jeweler with a firmware version 2.13 and higher. Resistance is measured automatically for each EOL resistor in the Ajax PRO apps.
Cable length up to 400 m
When using a signal cable with a 0.22 mm² copper-clad aluminum conductor.
Operation mode pulse, bistable
Adjusted by a PRO or user with admin rights in the Ajax app.
Event types 15 event types of wired devices
  • Tamper alarm
  • Intrusion
  • Fire
  • Auxiliary alarm
  • Panic button
  • Gas alarm
  • Malfunction
  • Leakage
  • Glass break
  • High temperatures
  • Low temperatures
  • Masking
  • Duress code (opening)
  • Vibration (seismic sensor)
  • Custom
Adjusted by a PRO or a user with admin rights in the Ajax app.
Recommendations The device is powered by the 100–240 V~ mains and designed for indoor use only.
Sabotage protection
Tamper alarm Two tampers to detect the MultiTransmitter Jeweler casing opening and alert about detachment from the wall.
Protection against spoofing device authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings
Instant detection of wired connection loss, short circuits, and malfunctions when using EOL/2EOL/3EOL connection type
Depends on the connection type
Power supply
MultiTransmitter Jeweler power supply 100–240 V, 50/60 Hz
Type type A
Power supply is used inside the supervised premises
Device's operating voltage range 100–240 V~, 50/60 Hz
Quiescent device's current consumption at nominal voltage 14.6 mA
Maximum device's current consumption at nominal voltage 69.6 mA
MultiTransmitter Jeweler backup power supply 12 V⎓, up to 7 Ah capacity with a full charge cycle of up to 30 hours
MultiTransmitter Jeweler average consumption from the backup battery after the main power supply loss is up to 33 mA (without detectors). When using a 7 Ah battery, the minimum operating time at a maximum load of 1 А will be 7 hours. For autonomous work for 12 or 24 hours, the maximum load should be no more than 0.55 A and 0.28 A, respectively.
The backup battery is not included in the set.
Low battery voltage 11.4 V⎓
Low battery recovery voltage 12.9 V⎓
End-of-life battery voltage 11.1 V⎓
Maximum output peak-to-peak ripple battery voltage 50 mV⎓
Minimum backup battery energy level in the charged state 100%
Connected devices power supply 10.5–15 V⎓, up to 1 A of total maximum current consumption
Two power lines powered by MultiTransmitter Jeweler for other devices. One power line for fire detectors
Enclosure
Color Black
Dimension 192 × 238 × 100 mm
Weight 802 g
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards
Operating humidity up to 75%
Protection class IP40, IK06
The new casing version of MultiTransmitter Jeweler has light guides for the integration module LED indication, while the previous version has the LED indicator on the board
Complete set MultiTransmitter Jeweler board
Casing
Power cable
Screw terminal block Adapter (only for INCERT compliance)
12 V battery connection cable
Installation kit
Casing
Quick start guide
Warranty 24 months
