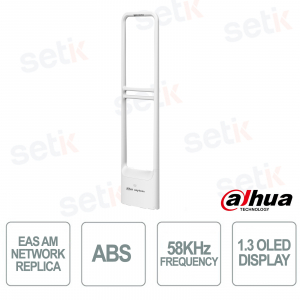

ISC-EAA2-C208-P 58 kHz AM Network EAS Antenna with WISS and CCTV Integration - Dahua

ISC-EAA2-C208-P 58 kHz AM Network EAS Antenna with WISS and CCTV Integration - Dahua

 

ISC-EAA2-C208-P - is a WISS- licensed EAS AM network anti-theft antenna , designed to ensure precise detection of labels and tags at 58 kHz up to 2.4 meters , reducing theft and losses in the retail sector. Thanks to automatic phase adjustment technology , high resistance to interference and remote connection via network , it ensures reliable performance even in complex environments. Equipped with a built-in OLED display , integration with CCTV systems , DSS Pro support, WEB interface and cloud services, it represents a professional solution for supermarkets, pharmacies, clothing stores and shopping malls. Dahua

Technical data sheet

Artikel-Nr.: ISC-EAA2-C208-P

Marke: Dahua

EAN: 6923172500892

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

ISC-EAA2-C208-P | EAS AM ANTI-THEFT ANTENNA

Dahua

The Dahua ISC-EAA2-C208-P is a WISS- licensed AM network EAS antenna , designed for precise 58 kHz label and tag detection at a distance of up to 2.4 meters . Featuring automatic phase adjustment technology , high interference immunity , and a built-in OLED display , it delivers reliable performance in any retail environment. It supports CCTV integration , remote management via network , DSS Pro platform, WEB interface, and cloud services, making it a professional solution for supermarkets, pharmacies, clothing stores, and shopping malls.

Main specifications:

- Technology: EAS AM 58 kHz with WISS license

- Detection: Up to 2.4m for AM tag

- Display: Integrated 1.3" OLED

- Interference: Automatic phase adjustment

- Alarm: Adjustable acoustic and luminous

- Integration: CCTV, WEB, Cloud and DSS Pro

- Expandability: Up to 2 replica antennas

- Installation: Vertical mounting for retail environments

Further details

✅ EAS Label and Tag Detection :
The 58 kHz AM EAS technology detects anti-theft labels and tags with high precision, triggering an adjustable acoustic and light alarm and sending the signal to video surveillance systems for effective protection of goods.
✅ Anti-interference Adjustment:
The system features advanced interference control with sensitivity , alarm threshold , antenna gain and real-time interference indicator management, ensuring reliable performance even in environments with high electromagnetic noise.
✅ Phase Adjustment Technology:
 Innovative multi-phase scanning technology ensures precise label recognition in all directions , allowing for the use of smaller labels and fewer antennas. Phase adjustment can be managed automatically or manually and monitored via a web interface .
✅ Multiple Connection Methods:
The antenna supports multiple RX, TX and TR operating modes and allows you to connect up to 2 replica antennas to a primary antenna, creating expandable and flexible systems, ideal for stores of any size.
✅ Performance :
Designed for professional performance , it achieves a detection distance of up to 2.4 meters for AM tags, integrates a 1.3" OLED display , supports CCTV Linkage , DSS Pro , cloud services , firmware upgrades and remote management via network, effectively reducing theft and loss in the retail sector.

Technical data sheet

MODEL ISC-EAA2-C208-P
Performance
Technology Acousto-Magnetic Antenna
Detection Frequency Band 58 kHz
Detection Distance of EAS Labels 1.8 – 2.0 m (5.91 ft – 6.56 ft) (Distance of two antennas) * depending on environment
Detection Distance of EAS Tags 2.0 – 2.4 m (6.56 ft – 7.87 ft) (Distance of two antennas) * depending on environment
Alarm Volume Max 90 dB (Adjustable)
Antenna Type Primary antenna
Adaptability A Single primary antenna can connect to two replica antennas simultaneously
Sound and Light Alarm Primary and Replica Antenna
Certification
Certifications IEC 60068-2-1
IEC 60068-2-2
CE-LVD: Low Voltage Directive 2014/35/EU
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
RoHS RoHS compliant
Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments.
Safety ICNIRP 2010 Guidelines
ICNIRP 1998 Guidelines
EC directive 2013/35/EU
EC recommendation 1999/519/EC
IEEE C95.1:2005
EN IEC 62311:2020
EN 50364:2010
EN 62369-1:2010
Port
Power Interface DSS Pro, Configtool, WISS
Regular Parameters
Shell Material ABS
Shell Color White
Input Voltage 220 – 240 VAC @ 50 Hz / 60 Hz
Output Voltage 24 VAC / 3 A
Maximum Power Consumption 25 W
Typical Power Consumption 20 W
Overall Exterior Size 1500 mm × 400 mm × 120 mm (59.06'' × 15.75'' × 4.72'')
Packing Size of Primary / Replica Antenna 1590 mm × 490 mm × 200 mm (62.60'' × 19.30'' × 7.87'')
Gross Weight 8.50 kg (18.74 lb)
Operating Temperature 0 °C to 45 °C ( 32 °F to 113 °F)
Operating Humidity 0% – 95% (RH)
Installation Vertical pole mount
