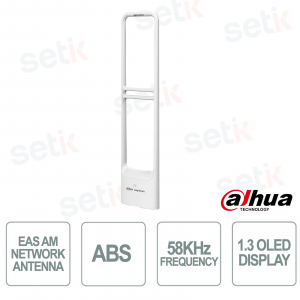

ISC-EAA2-C201-P 58 kHz AM Network EAS Antenna with CCTV Integration - Dahua

ISC-EAA2-C201-P 58 kHz AM Network EAS Antenna with CCTV Integration - Dahua

 

ISC-EAA2-C201-P - is a network EAS AM anti-theft antenna designed for reliable detection of labels and tags at 58 kHz , with a detection distance of up to 2.4 meters for tags. Thanks to multi-phase adjustment technology , high interference immunity and an integrated OLED display , it guarantees high performance even in complex environments. It supports integration with CCTV systems , remote management via network , DSS Pro platform, WEB interface and connection of up to 2 replica antennas , making it ideal for supermarkets, shops, pharmacies and shopping malls. Dahua

Technical data sheet

Artikel-Nr.: ISC-EAA2-C201-P

Marke: Dahua

EAN: 6923172566959

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

ISC-EAA2-C201-P | EAS AM ANTI-THEFT ANTENNA

Dahua

The Dahua ISC-EAA2-C201-P is a network EAS AM antenna designed for precise detection of labels and tags at 58 kHz , with an operating distance of up to 2.4 meters for tags. Thanks to multi-phase adjustment technology , high resistance to interference and a built-in OLED display , it offers reliable performance even in complex commercial environments. It supports integration with CCTV systems , remote management via network , WEB interface , DSS Pro platform and the connection of up to 2 replica antennas , making it the ideal solution for supermarkets, shops, pharmacies and shopping malls.

Main specifications:

- Technology: EAS AM 58 kHz network

- Detection: Up to 2.4m for AM tag

- Display: Integrated 1.3" OLED

- Interferences: Automatic and manual multi-phase regulation

- Alarm: Adjustable acoustic and luminous

- Connectivity: WEB, DSS Pro and CCTV Linkage

- Expandability: Up to 2 replica antennas

- Installation: Vertical mounting for retail environments

Further details

✅ EAS Label and Tag Detection :
EAS AM 58 kHz technology ensures fast and accurate detection of anti-theft labels and tags , triggering an audible and visual alarm with adjustable volume, helping to reduce theft and loss at the point of sale.
✅ Anti-interference Adjustment:
The advanced interference adjustment system allows you to configure sensitivity , alarm threshold , antenna gain and transmission mode, effectively adapting even to environments with high electromagnetic noise to ensure stable operation.
✅ Phase Adjustment Technology:
 Multi-phase scanning technology ensures accurate label recognition from any direction , optimizing system coverage. Phase adjustment can be performed automatically or manually and is viewable via a web interface with a dedicated diagram.
✅ Multiple Connection Methods:
The antenna integrates RX, TX and TR transceiver functions and allows up to 2 replica antennas to be connected to a primary antenna, offering a modular, expandable and flexible solution for stores of any size.
✅ Performance :
Designed for professional applications, it offers a detection distance of up to 2.4 meters , adjustable alarm up to 90 dB , 1.3" OLED display , integration with CCTV systems , DSS Pro support, cloud services , firmware updates and remote management via network, ensuring maximum efficiency in protecting goods.

Technical data sheet

MODEL ISC-EAA2-C201-P
Performance
Technology Acousto-Magnetic Antenna
Detection Frequency Band 58 kHz
Detection Distance of EAS Labels 1.8 – 2.0 m (5.91 ft – 6.56 ft) (Distance of two antennas) * depending on environment
Detection Distance of EAS Tags 2.0 – 2.4 m (6.56 ft – 7.87 ft) (Distance of two antennas) * depending on environment
Alarm Volume Max 90 dB (Adjustable)
Antenna Type Primary antenna
Adaptability A Single primary antenna can connect to two replica antennas simultaneously
Sound and Light Alarm Primary and Replica Antenna
Certification
Certifications IEC 60068-2-1
IEC 60068-2-2
CE-LVD: Low Voltage Directive 2014/35/EU
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
RoHS RoHS compliant
Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments.
Safety ICNIRP 2010 Guidelines
ICNIRP 1998 Guidelines
EC directive 2013/35/EU
EC recommendation 1999/519/EC
IEEE C95.1:2005
EN IEC 62311:2020
EN 50364:2010
EN 62369-1:2010
Port
TR Board Port (CH1, CH2, CH3) CH1 integrates into the main board, CH2 and CH3 can connect to the TR board as needed
CCTV Port Output port for the linkage signal of the camera, up to 3 cameras can be connected simultaneously
Network Interface RJ45
Power Interface HTTP, TCP/IP
Power Interface SDK
Power Interface DSS Pro, Configtool
Regular Parameters
Shell Material ABS
Shell Color White
Input Voltage 220 – 240 VAC @ 50 Hz / 60 Hz
Output Voltage 24 VAC / 3 A
Maximum Power Consumption 25 W
Typical Power Consumption 20 W
Overall Exterior Size 1500mm × 400mm × 120mm (59.06'' × 15.75'' × 4.72'')
Packing Size of Primary / Replica Antenna 1590 mm × 490 mm × 200 mm (62.60'' × 19.30'' × 7.87'')
Gross Weight 8.50 kg (18.74 lb)
Operating Temperature 0 °C to 45 °C ( 32 °F to 113 °F)
Operating Humidity 0% – 95% (RH)
Installation Vertical pole mount
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
