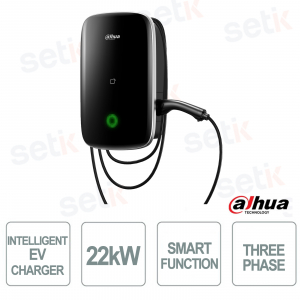

Dahua D-Volt Air 22 kW Type 2 Smart App RFID OCPP EV Charging Station with Dynamic Balancing

Dahua D-Volt Air 22 kW Type 2 Smart App RFID OCPP EV Charging Station with Dynamic Balancing

 
IN DER FÖRDERUNG -55%

ICS-A220E-H1D - The 22 kW D-Volt Air smart charging station is designed to offer fast, safe and efficient charging of electric vehicles in residential environments. Thanks to App, RFID and Plug&Play support, OCPP 1.6J and ModBus TCP protocols and the solar charging function, it guarantees smart energy management. Dynamic load balancing automatically adjusts the charging power based on the electrical system's absorption, optimizing consumption and avoiding overloads. Integrated electrical protections , IP55 certification and IK10 resistance ensure reliability and safety even in outdoor installations. Dahua

Technical data sheet

Artikel-Nr.: ICS-A220E-H1D

Marke: Dahua

EAN: 6939554905650

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


ICS-A220E-H1D | D-VOLT AIR 22kW EV CHARGING STATION

Dahua

The Dahua D-Volt Air ICS-A220E-H1D 22 kW smart charging station is the ideal solution for charging electric vehicles in residential settings, offering high performance, intelligent management, and maximum security. Thanks to App, RFID, and Plug&Play support, OCPP 1.6J and ModBus TCP protocols, and solar charging functionality, it guarantees complete control of charging sessions. Dynamic load balancing automatically adjusts the power output based on the electrical system's current draw, optimizing consumption and avoiding overloads. Type A + 6 mA DC RCD protection, IP55 certification, and IK10 resistance ensure reliability and durability even in outdoor installations.

Main specifications:

  • Power: 22 kW three-phase
  • Connector: Type 2 socket (IEC 62196-2)
  • Charging Mode: Plug & Play, RFID and App
  • Connectivity: OCPP 1.6J, ModBus TCP, Ethernet, RS485, CAN, USB
  • Smart Function: Dynamic load balancing and solar charging
  • Protection: IP55, IK10, RCD Type A + 6 mA DC and PEN protection

Further details

✅ Power :
Charging power of up to 22 kW in three-phase mode ensures fast and efficient charging of electric vehicles. Adjustable current from 6 A to 32 A allows the power to be adapted to the system's needs, improving energy efficiency and reducing charging times.
✅ Type 2 Connector:
Equipped with a Type 2 socket (IEC 62196-2 EU) , it guarantees maximum compatibility with most electric and plug-in hybrid cars on the European market, making it ideal for residential installations.
✅ Charging mode :
It supports Plug & Play , RFID authentication and App management , offering simple and flexible control of charging sessions, with the possibility of programming times and optimising energy consumption.
✅ Advanced connectivity:
It integrates OCPP 1.6J and ModBus TCP protocols , as well as RJ45 Ethernet , RS485 , CAN and USB ports , enabling remote monitoring, integration with energy management systems and OTA updates .
✅ Smart Function :
Dynamic Load Balancing automatically adjusts charging power based on the electrical system's current draw, avoiding overloads and making the most of available energy. It is also compatible with solar charging , to maximize self-consumption of energy produced by photovoltaic systems.
✅ Security:
The column integrates RCD Type A 30 mA + 6 mA DC , PEN protection , systems against overvoltages , undervoltages , overcurrents , short circuits , overtemperatures and current leaks , in addition to the IP55 and IK10 protection ratings, guaranteeing reliability and safety even in outdoor environments.

Technical data sheet

ICS-A220E-H1D
Basic
Rated Power 22 kW
Power Supply AC400 V±15% 50/60 Hz 3-Phase
Input Cable Wiring Method L1/L2/L3/N/PE
Operating Current 3 * 32 A max
Socket Outlet or Connector Type Socket/5 m (16.40 ft) Cable, Type 2
Charging Protocol Mode 3 (EN/IEC 61851)
Protection IP66 (Cable), IP55 (Socket)
Anti-collision Grade IK10
Operating Temperature –30 °C to +50 °C (– 22 °F to +122 °F)
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Port
Charging Port Type 2 (Socket, IEC 62196 Type2 EU)
Ethernet Port 1 × RJ-45 port
Others RS485*2/CAN*2/USB
Function
Charging Control Mode Plug & Play/RFID/APP
Communication Protocol OCPP 1.6J and ModBus TCP
Upgrade Method USB upgrade and remote upgrade (OCPP 1.6J)
MID Built-in MID-certified Meter.
Leakage Protection 30 mA Type A RCD + 6 mA DC
Security Protection Surge protection, over temperature protection, over voltage protection, under voltage protection, over current protection, grounding protection, electrical leakage protection, PEN (for British regions), and Integral 30 mA Type A RCD (EN 61008) + 6 mA DC protection (EN 62955)
General
Operating Humidity ≤95% (RH), non-condensing
Product Dimensions 443.0 mm × 273.0 mm × 171.5 mm (17.44" × 10.75" × 6.75") (H × W × D)
Packaging Dimensions cable: 606.0 mm × 423.0 mm × 484.0 mm (23.86" × 16.65" × 19.06") (L × W × H)
socket: 606.0 mm × 423.0 mm × 409.0 mm (23.86" × 16.65" × 16.10") (L × W × H)
Net Weight 6.0 kg ± 0.5 kg (13.23 lb ± 1.10 lb)
Package Weight 12.0 kg ± 1.0 kg (26.46 lb ± 2.20 lb)
Installation Environment Indoor or outdoor in well-ventilated places and free of oil stains, chemicals and inflammable and explosive substances.
Wire Wire cross-section:
3 × 6 mm2 (9 AWG) 1-Phase
5 × 6 mm2 (9 AWG) 3-Phase
Installation Wall mount and vertical pole mount
Certifications CE/CB
EN IEC61851-1, EN IEC61851-21-2, EN300328, EISI EN300330,
EN301489-1/-17/-3/-52, EN62311, EN50364, ETSI EN 301511,
ETSI EN301908-1/-2/-13, IEC62955, 2011/65/EU, 2015/863/EU
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
